This 18-inch LEGRABOX F Height complete drawer system from Blum pairs a bold stainless steel exterior with an engineered 241mm (9-1/2 inch) side profile, full-extension travel, and integrated BLUMOTION soft-close — the combination that makes it the right choice wherever a deep, hard-working drawer needs to perform under load and look the part doing it.
The F Height profile is the tallest in the standard LEGRABOX lineup, and its 241mm side height is what separates it from the mid-height options in the family. That extra depth is where this system earns its place: the pot drawer loaded with cast iron, the pantry pull-out that holds heavy canned goods stacked three rows deep, the appliance garage drawer that carries a stand mixer on a pull-out shelf. Full-extension travel means the drawer opens completely to the cabinet face — no reaching past a half-open front to find what's in the back. Pair this system with LEGRABOX's AMBIA-LINE interior organization program to zone the F Height interior for pots, lids, or pantry goods.
The Stainless Steel finish on LEGRABOX presents as a brushed metallic surface on the double-walled steel side profile — interior and exterior faces are both clean, with no exposed fasteners on the visible side. In kitchens where stainless appliances and hardware set the tone, the LEGRABOX Stainless Steel finish carries the same visual language into the drawer interior. The steel construction throughout supports the 170 lb capacity rating; this is not a cosmetic finish over a lighter-duty chassis. BLUMOTION soft-close is built into the runner, not an add-on clip — it adapts to the loaded weight of the drawer rather than requiring a preset tension adjustment.
Cabinet shops specifying for commercial kitchens or high-end residential projects will find the F Height useful wherever a standard-depth drawer side falls short. Frameless construction is the primary application: the system mounts directly to the cabinet side on the 32mm grid. Face-frame installs require rear mounting brackets specific to the LEGRABOX platform, sold separately — a detail worth confirming before the order ships on a face-frame project. Designers specifying handle-less fronts should note that LEGRABOX is compatible with Blum's TIP-ON BLUMOTION units and SERVO-DRIVE electrical opening system when both push-to-open and soft-close are required; plain mechanical push-to-open is not combined with this system's BLUMOTION close. The 18-inch nominal length suits standard base cabinet depths; the shop supplies the front, drawer bottom, and back cut to the system's published dimensions.

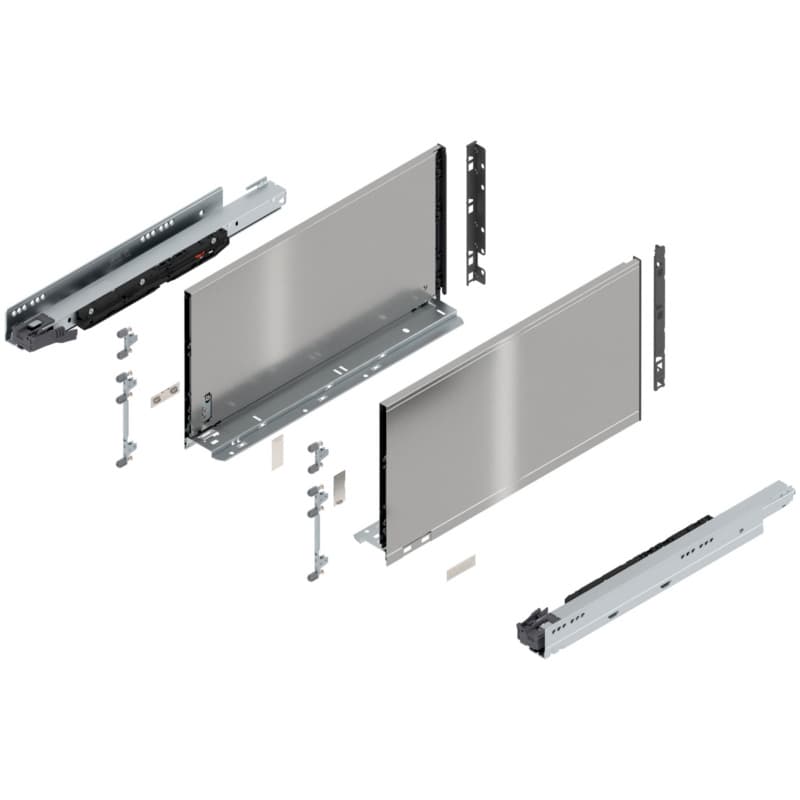

The system includes the double-walled steel side profiles, integrated runners, and BLUMOTION soft-close mechanism. You supply the drawer front, the bottom panel, and the back panel, all cut to Blum's published cutting dimensions for the F Height and 450mm nominal length.
The 170 lb capacity is the rating for this complete drawer system — it is not a per-side figure. That rating puts the F Height in Blum's heavy-duty series alongside MERIVOBOX at the same load class.
The primary installation is frameless, mounting directly to the cabinet side. Face-frame installs require LEGRABOX-specific rear mounting brackets, which are sold separately. The brackets are series-specific and do not interchange with other Blum systems.
Yes, but only with Blum's combined TIP-ON BLUMOTION unit, which integrates mechanical ejection and damped closing in one mechanism. Standard plain push-to-open works against the BLUMOTION close; use the combined unit or SERVO-DRIVE for handle-less applications.
LEGRABOX drawers use Blum's AMBIA-LINE organization program — frames, dividers, plate holders, and deep-drawer inserts sized and finished to match the system interior. AMBIA-LINE is platform-specific and does not fit TANDEMBOX drawers.
When the project calls for the deepest standard LEGRABOX profile in a finish that can hold its own in a professional kitchen, the F Height in Stainless Steel is the specification. The 170 lb capacity, full-extension travel, and BLUMOTION soft-close give you a system that performs as well loaded on day one as it does years into regular use.
Sold In: 1 Set
