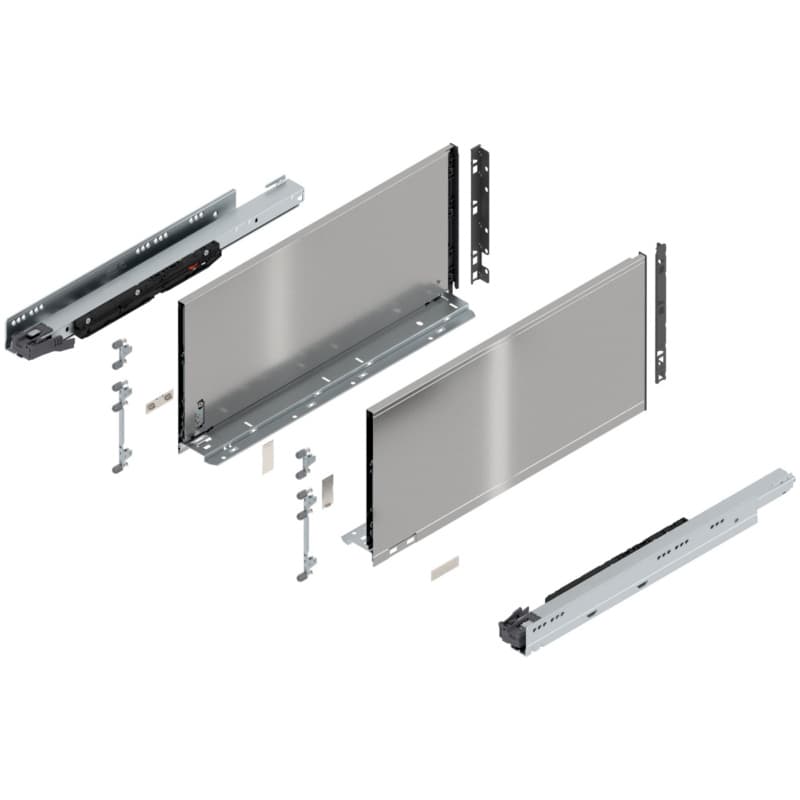

This 20 inch LEGRABOX F Height complete drawer system from Blum pairs a double-walled stainless steel side profile with integrated BLUMOTION soft-close and full-extension running gear in a single engineered platform. At 241mm (9-1/2 inches) tall, the F Height is the deep profile in the LEGRABOX lineup, suited for pots, pans, pantry pull-outs, and anywhere a standard-depth drawer comes up short.
The F Height is the profile to reach for when standard-height drawers cannot hold what needs to go in them. Tall stockpots, Dutch ovens, and sheet pans sit upright rather than being forced flat. Pantry pull-outs carrying canned goods, dry storage, and bulky kitchen supplies load to the full 170 lb dynamic rating without the runner straining. Deep bathroom vanity drawers — holding hair tools, large bottles, and folded towels — gain the vertical room they need without switching to a cabinet door and pull-out shelf. In shop and utility casework, the F Height works equally well for tall supplies, rolled goods, and tool organization. Wherever depth and capacity are the actual constraint, this profile resolves them.
The Stainless Steel finish is the most specification-forward choice in the LEGRABOX palette — where Orion Gray Matte and Silk White Matte recede into the cabinet interior, stainless reads as a deliberate material statement. It pairs naturally with stainless appliances, concrete countertops, and professional or commercial-style kitchen designs. The double-walled steel side profiles hide every fastener and present a clean face on both the inner and outer wall. BLUMOTION is integrated into the runner, not added on, so the damping is consistent across the life of the product regardless of drawer load. The 20 inch (500mm) nominal length suits standard 24-inch-deep base cabinets with proper clearance at the back.
Cabinet shops and designers working on professional or commercial-adjacent kitchens reach for this combination when the client is investing in a stainless appliance package and wants the drawer interiors to match. The F Height in stainless also shows up in restaurant-adjacent residential projects, chef's kitchens with open shelving and exposed hardware, and high-specification closet and utility rooms where the finish and load rating need to be visible proof of quality. Contractors and fabricators ordering multiple drawer positions in one kitchen often standardize on one profile height per zone — the F Height for the lower pot-and-pan zone, a shorter profile above — and the 170 lb rating means they never have to qualify which drawer gets the heavy load.
F is the tallest standard side profile in the LEGRABOX line at 241mm (9-1/2 inches). Shorter LEGRABOX heights work for cutlery and utility drawers; the F Height is sized for deep storage — tall cookware, pantry goods, and any application where side height is the primary selection reason.
No. BLUMOTION is a fluid damper integrated into the runner that slows the drawer through the last inch of travel. A self-closing ramp pulls the drawer shut on a spring; BLUMOTION slows a drawer that is already moving toward closed. The result is a quiet, controlled close rather than a positive snap.
This is a complete drawer system — side profiles, runners, and BLUMOTION are included. You will also need front fixing brackets matched to the F Height, a back panel cut to the system's specification, a drawer bottom, and the drawer front itself. Front fixings and cover caps are sold separately and must be specified for the LEGRABOX F Height.
Yes. AMBIA-LINE is the interior organization line designed for LEGRABOX drawers and is available in Stainless Steel finishes to match this profile. Measure the finished interior dimensions of the box to compose the right AMBIA-LINE combination for your application.
LEGRABOX installs directly in frameless (32mm grid) cabinets. Face-frame installations require additional mounting hardware specific to the LEGRABOX system. Confirm the required face-frame components before ordering for that application.
When the project calls for deep storage, a 170 lb capacity, and a finish that stands on its own, the LEGRABOX F Height in Stainless Steel is the drawer system built to deliver all three. Spec it with confidence for the applications where less would not be enough.
Sold In: 1 Set
