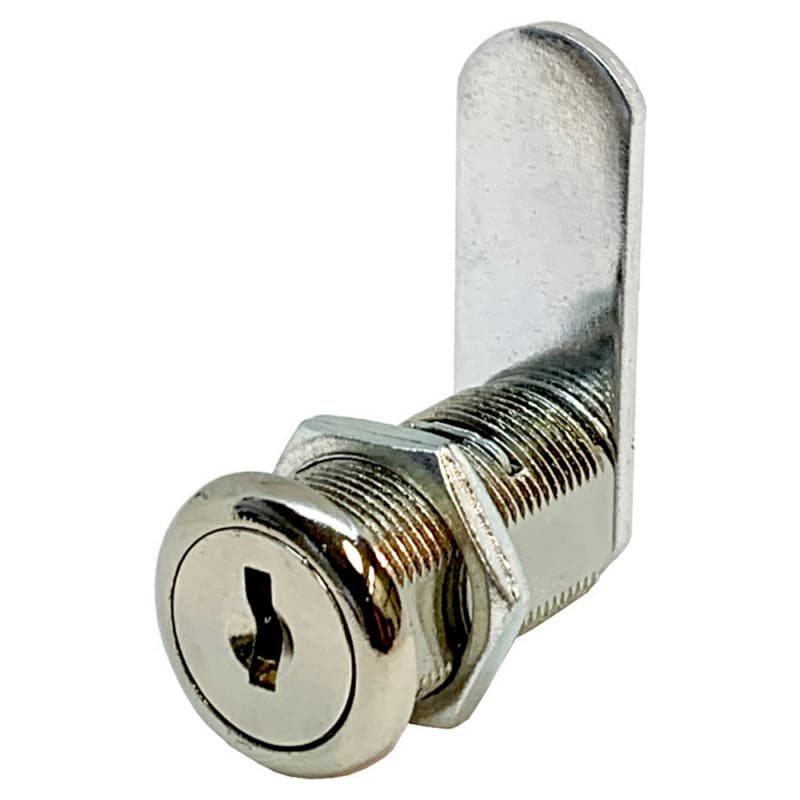

Olympus Disc Tumbler Cam Lock For Cabinets

Olympus disc tumbler cam lock gives installers a keyed cylinder solution for drawers and cabinet doors where controlled access is required. The cam lock uses a 1-3/4 inch cylinder keyed different, so each lock operates on its own key pattern in keyed-different installations. The bright nickel finish provides a clean metal look that matches typical bright cabinet hardware, which helps finished jobs present a consistent appearance. The lock is shipped with the cylinder and body assembled via a patented retainer staple, so the core is already secured to the housing before installation work begins. The design uses a disc tumbler mechanism, which provides a conventional keyed operation that is familiar in cabinet and fixture work. The lock is identified by manufacturer part number 960-14A-KD, giving cabinet shops and facilities a consistent reference when repeating projects or matching existing hardware.

Cam Lock Details That Support Cabinet Work

• The lock comes assembled with the cylinder and body connected by a patented retainer staple, which reduces handling steps during bench prep and keeps the critical components properly oriented.
• The product has passed the ANSI/BHMA Grade 2 cycle test for 20,000 cycles, including key insertion and removal, which shows the mechanism is designed to operate repeatedly in regular cabinet use.
• A spur washer with eyelet is part of the lock design; when this washer is screwed into place it prevents lock rotation and helps keep the fixing nut from loosening during daily use.
• The cylinder and a cylinder extender work together so cylinders can be swapped between different size cam lock bodies, which supports inventory flexibility when projects call for multiple body lengths.
• The cam lock offers a 90 degree cam turn, delivering a simple quarter-turn motion that is easy to align with strike plates or frames on cabinet drawers and doors.
• The lock is intended for drawers and for right-hand or left-hand doors, so one model covers typical swing directions in cabinet and casework layouts.

Installation And Fit For Drawer And Door Use

The Olympus cam lock is listed for lipped or overlay construction using a 1-1/2 inch straight cam, so it can secure door fronts that overlap a face frame within that reach. For flush construction applications, it uses a 1-1/8 inch extension cam with an 11/32 inch offset, positioning the cam to catch behind a frame or strike in a flush-front cabinet. For overlay work, the combined thickness of the front and frame cannot exceed the cylinder length, which ties panel build-up directly to the specified cylinder dimension. The spur washer with eyelet fastens by a screw, which locks the housing against rotation and keeps the fixing nut from backing off over time. The 90 degree cam turn then moves the cam into and out of engagement with the frame, allowing straightforward alignment during drilling and layout.

How This Cam Lock Fits Cabinet Projects

Where The Olympus Disc Tumbler Cam Lock Works

This Olympus disc tumbler cam lock is specified for drawers and for right-hand or left-hand cabinet doors, so it fits common casework such as storage cabinets, display fixtures, and drawer banks in woodworking projects. The option for lipped or overlay construction using the 1-1/2 inch straight cam supports face-frame cabinets where the door overlays the frame. For flush construction, the 1-1/8 inch extension cam with its 11/32 inch offset positions the locking point to catch behind a frame in frameless or flush-front designs. Because the combined thickness of the front and frame in overlay applications cannot exceed the marked cylinder length, builders can match their door and frame build-ups to the stated dimension for predictable fit. The bright nickel finish coordinates with bright cabinet pulls and hinges, which helps installations present a unified hardware look.

Why These Cam Lock Details Reduce Rework

The lock being shipped with the cylinder and body assembled via the patented retainer staple means the core is seated at the factory, reducing field assembly steps and helping avoid assembly-related alignment issues. The disc tumbler mechanism paired with a 90 degree cam turn gives a simple quarter-turn action, which helps installers line up strikes without complicated throws. Passing the ANSI/BHMA Grade 2 cycle test at 20,000 cycles, including key insertion and removal, shows the mechanism is tested for repeated locking and unlocking, which matters in cabinets that see frequent daily access. The spur washer with eyelet, once screwed into place, bites into the mounting surface to prevent the lock body from spinning, which keeps the keyway vertical and the fixing nut tight after repeated use. The cylinder and cylinder extender design allows cylinders to be swapped between different size cam lock bodies, so shops can manage fewer keyed cores while still covering several door or drawer thicknesses. Custom keying typically ships direct from the manufacturer in 48-72 hours, helping projects that require specific keying patterns stay on schedule.

Common Questions About Olympus Cam Lock Use

Choose This Cam Lock For Targeted Cabinet Security

The Olympus disc tumbler cam lock with 1-3/4 inch cylinder keyed different gives cabinet shops and facility teams a defined solution for drawers and right-hand or left-hand doors in lipped, overlay, or flush construction. The bright nickel 960-14A-KD model carries ANSI/BHMA Grade 2 cycle testing at 20,000 cycles, so it is specified for repeated operation. The spur washer with eyelet and the factory-assembled cylinder and body help maintain alignment and resist loosening in service. For projects needing specific keying setups, custom keying typically ships direct from the manufacturer in 48-72 hours, which supports planned hardware schedules.
