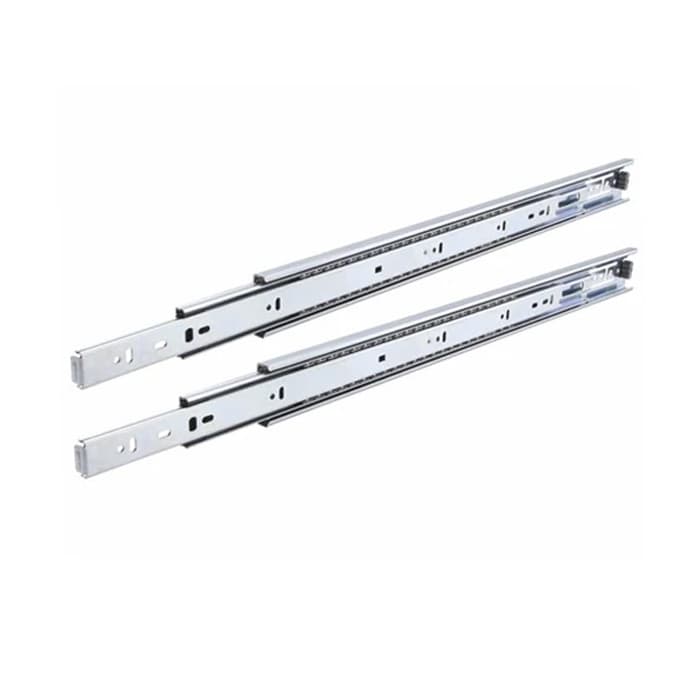

The Pro Value PRO 100 Series is a 14 inch full-extension side-mount ball bearing drawer slide rated 100 lb per pair, finished in zinc, and designed for compact kitchen drawers, bath vanities, and shallow utility cabinets where a shorter slide length fits the box.
A 14 inch slide suits drawers that a longer slide simply will not fit: shallow spice drawers beside a range, narrow bath vanity pull-outs, nightstand drawers, and small utility cabinet inserts where the cabinet interior depth is in the 14 to 15 inch range. Full extension matters even in a short drawer — without it, the back of a 14 inch box can be hard to reach. This slide brings the whole drawer out, so the last inch is as accessible as the first. It also works as a replacement slide in older furniture and cabinetry where the original hardware wore out at this common small-cabinet length.
The slide members are cold-formed steel, carrying a bright zinc finish that protects against indoor moisture and daily handling. Zinc is the working standard for side-mount ball bearing slides in this duty class — it is a functional, durable finish on a component that sits beside the open drawer rather than on display. The steel raceways run ball bearings continuously along the full length of each member, producing smooth, even travel whether the drawer is empty or loaded.
The PRO 100 is built to the 32mm hole pattern used in production frameless cabinetry, so it drops onto a line-bored panel without layout work. For face-frame cabinet installs, rear mounting support is required at the back of the slide — fixed or floating rear brackets suit this application and are sold separately. The non-handed design simplifies ordering for shops running multiple drawers: one set covers one drawer, and every set in a run is the same part. Cabinet shops, contractors replacing worn hardware on a vanity remodel, and homeowners fitting a new pull-out shelf all land on this slide for the same reason: a 14 inch full-extension slide at 100 lb per pair, in stock and sized right for the job.
This listing is a set — one pair of slides, which is everything needed for one drawer.
Build the drawer box 1 inch narrower than the cabinet opening. Each slide takes 1/2 inch of clearance, so a 1 inch total reduction across both sides puts the box in the right position.
Slide length and travel are two different numbers. A 14 inch full-extension slide closes to 14 inches and travels approximately its full closed length, bringing the whole drawer out to the cabinet face. It does not mean the drawer opens 14 inches beyond the cabinet.
Yes, with the right rear support. Face-frame cabinets set the side panel back from the opening, so the rear of the slide needs a bracket to keep it level. Add the matching rear mounting brackets, sold separately, for a solid face-frame install.
No. The PRO 100 is a standard-motion slide — no soft-close damper, no self-close spring, and no detent. The drawer stays wherever it is left. For a damped close, look at the soft-close variants in the Pro Value line.
At 14 inches, full extension, and 100 lb per pair, this set covers the compact end of the cabinet drawer range without overbuilding the spec — a practical fit for vanities, small kitchen pull-outs, and replacement work where the depth just does not call for a longer slide.
