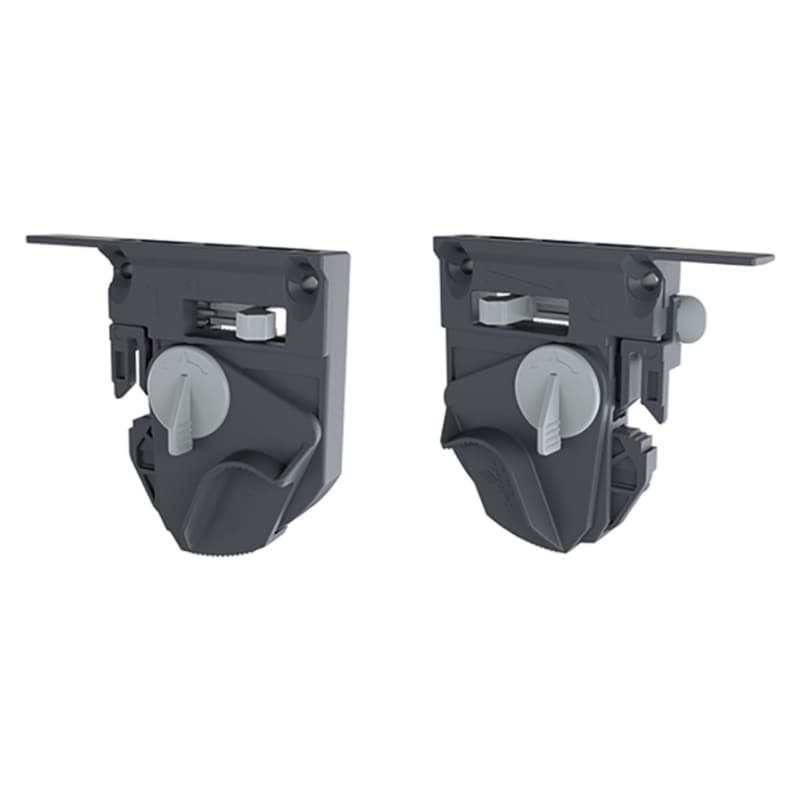

Quadro 4D V6 left-hand locking device secures the Quadro 4D V6 drawer slide to a wooden drawer, so the slide and drawer move as one unit and resist unwanted disengagement during everyday use. This Hettich America Corporation component is designed as a front fixing clip, placing the connection at the front of the drawer box where technicians routinely adjust fit and alignment. The part is identified by manufacturer part number 9247355, giving installers a clear reference when matching components on repeat jobs or service calls. The web description notes that this locking device is intended specifically for Quadro 4D V6 and wooden drawer construction, tying the slide system to common shop-built drawer boxes. By assigning this device to the left-hand side, planning becomes straightforward when pairing it with the corresponding right-hand component in a run of drawers.
This front fixing clip configuration places the Quadro 4D V6 left-hand locking device at the front of the wooden drawer, where height and side adjustments are most effective for visual alignment. Tool-less height adjustment up to + 2 mm means the drawer front can be nudged upward within that range, helping match top edges when cabinets are level but individual drawers sit slightly low. Side adjustment up to plus or minus 1.5 mm lets the installer shift the drawer front left or right within that window, which is valuable for tightening or evening gaps between neighboring drawers without disturbing the overall cabinet setup. Because the secure connection of Quadro 4D V6 and wooden drawer is built into this device, each adjustment translates cleanly into changed drawer position rather than play between parts, supporting precise alignment outcomes.
The Quadro 4D V6 left-hand locking device is specified for use with the Quadro 4D V6 drawer slide system and a wooden drawer, positioning it on the left side of the drawer front. As a front fixing clip, it works at the leading edge of the drawer, tying the slide to the drawer box where appearance and function meet. In a typical build using wooden drawers, this part anchors the left-hand slide interface, while a corresponding right-hand component handles the opposite side, so the drawer travels squarely on the Quadro 4D V6 tracks. The secure connection of Quadro 4D V6 and wooden drawer achieved through this device supports a stable running action, which is important when drawers carry everyday loads in residential or commercial cabinetry.
The tool-less connection and adjustment features of this Hettich America Corporation locking device directly support repeatable results on multi-drawer projects. Because the connection between Quadro 4D V6 and the wooden drawer is tool-less, installers can engage or release the left-hand locking device quickly, which simplifies fine-tuning after initial fitting. Tool-less height adjustment up to + 2 mm means that achieving consistent top lines across a stack of drawers can be handled through small, controlled movements at the clip, instead of rebuilding the drawer box or altering the slide position. Side adjustment up to plus or minus 1.5 mm gives precise lateral control at the front fixing clip, which helps establish uniform gaps between drawer fronts across a run of cabinets. By concentrating these adjustments at the left-hand front area, the 9247355 Quadro 4D V6 locking device supports a clear workflow: position the drawer in the opening, use the clip settings to dial in vertical and lateral relationships, and repeat the same steps on additional drawers for consistent alignment.
The Quadro 4D V6 left-hand locking device secures the Quadro 4D V6 drawer slide to a wooden drawer, so the drawer and slide operate together with a stable, positive connection.
The tool-less connection lets the installer attach the Quadro 4D V6 slide to the wooden drawer using the locking device without extra tools, which can speed up fitting and later adjustments.
The tool-less height adjustment up to + 2 mm allows the drawer front to be fine-tuned vertically, which helps align drawer fronts with neighboring fronts for an even visual line.
Side adjustment plus or minus 1.5 mm lets the drawer front move slightly left or right, which helps tighten or balance gaps between adjacent drawers during final fitting.
Front fixing clip means the locking device works at the front of the wooden drawer, placing the secure connection and adjustments where installers typically set reveals and gaps.
The left-hand designation for part 9247355 identifies it as the component for the left side of the drawer, which helps match it correctly within a Quadro 4D V6 installation.
The Quadro 4D V6 left-hand locking device from Hettich America Corporation offers a secure, tool-less connection between Quadro 4D V6 slides and wooden drawers, with front-focused height and side adjustment built in. For projects using this slide system with shop-built drawer boxes, the 9247355 front fixing clip provides a defined way to establish the left-hand connection and then fine-tune drawer front position within the available adjustment ranges. When choosing hardware for a bank of drawers, this part number helps keep the slide interface consistent from one opening to the next, supporting an efficient, repeatable installation workflow.
Sold In: 1 Each
