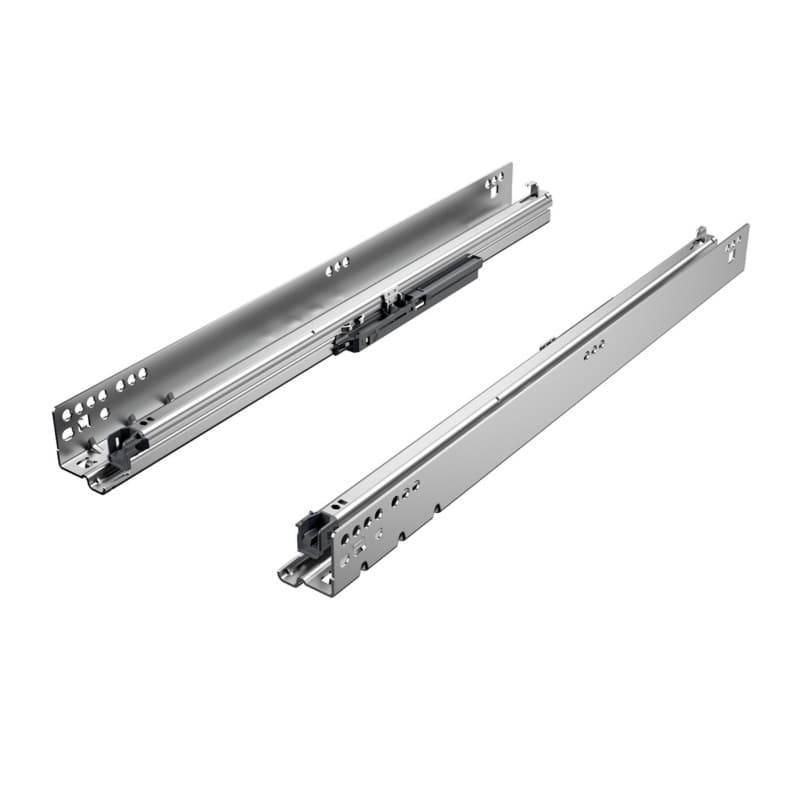

Hettich Quadro V6 15" Soft-Close Full Extension Undermount Drawer Slides, Ball Bearing Left hand Zinc - 9304298

Hettich Quadro V6 15 Inch Undermount Drawer Slides

Hettich Quadro V6 15 inch undermount drawer slides provide full extension movement so the drawer can travel completely out of the cabinet, which gives clear access to stored contents and better visibility in day-to-day use. The soft-close function slows the drawer on closing, which helps the front land gently against the case and reduces impact on the drawer construction over repeated cycles. This left hand slide is part of the Quadro V6 undermount drawer slide system, giving installers a consistent platform to use across multiple cabinet runs. The ball bearing mechanism supports smooth running of the drawer, which matters when drawers are frequently opened and closed in busy locations. As an undermount drawer slide in galvanized steel, it sits hidden under the drawer and resists typical moisture in interior rooms, supporting clean cabinet lines while working reliably over time.

Key Quadro V6 Drawer Slide Working Advantages

• Slide on installation with catches lets the drawer engage the slide without loose fasteners at that interface, which speeds cabinet assembly when repeating the same setup across a kitchen or bank of drawers.
• Tool-less height adjustment on the drawer simplifies fine tuning the front alignment, so installers can quickly correct minor reveals without pulling the drawer back out of the cabinet.
• Side adjustment up to plus or minus 2 mm using 2D front fixing clips gives controlled lateral movement of the drawer front, which helps bring adjacent fronts into a consistent gap pattern along a run.
• Convenient slide on installation with catches and tool-less drawer adjustment reduces setup time at the jobsite, which supports efficient installation when working under schedule pressure.
• Optionally upgradeable with Push to open Silent provides the option to add a push-activated opening mechanism with silent and soft closing, which supports handleless designs while maintaining controlled drawer motion.
• Meeting or exceeding ANSI / BHMA 156.9 grade 1 requirements indicates the slide has been tested against accepted performance criteria, which helps installers match hardware to commercial or higher-duty residential expectations.

Installation And Adjustment Details For This Slide

Slide on installation with catches allows the drawer to be mounted onto the undermount slide by engaging the pre-formed catches, which reduces handling time during assembly and helps keep drawer positions repeatable across multiple units. Tool-less height adjustment lets the installer change the vertical position of the drawer front without separate tools, which is useful for dialing in even reveals once the cabinet is already standing. Side adjustment up to plus or minus 2 mm via 2D front fixing clips permits left-right movement of the drawer front relative to the case, which helps straighten lines when face-frame or frameless cabinets show slight construction variation. The soft-close and Push to open Silent upgrade paths are built into the system design, so the same basic slide layout can support different opening and closing behaviors on the same project.

Using This Quadro V6 Slide In Cabinet Projects

Where This Left Hand Undermount Slide Fits Best

This Hettich Quadro V6 15 inch soft-close full extension undermount drawer slide fits cabinet drawers that use a 15 inch undermount runner length, which suits many base and vanity drawer depths in common layouts. Its undermount design positions the slide beneath the drawer box, supporting a clean side profile when using 1/2 inch or 5/8 inch drawer side thickness, as specified for this model. The galvanized steel construction is suitable for rooms exposed to moisture, so it works in spaces such as kitchens or baths where humidity is present during normal use. Load capacity up to 90 lbs dynamic and 100 lbs static, as per ANSI / BHMA 156.9 grade 1 specifications on a 21 inch length slide, shows how the Quadro V6 platform is rated, which helps installers select this family where drawers carry heavier contents.

Details That Support Consistent Results On Site

Slide on installation with catches keeps the connection between the drawer and the left hand slide repeatable, which matters when aligning multiple drawers in tall stacks or long cabinet runs. Tool-less height adjustment allows quick vertical corrections after fronts are installed, so installers can bring fronts into plane without disassembling hardware. Side adjustment up to plus or minus 2 mm through 2D front fixing clips allows small lateral shifts that correct for case squareness deviations, supporting tight and even margins between fronts. The option to upgrade with Push to open Silent lets the same Quadro V6 slide layout serve both standard soft-close drawers and push-to-open drawers, which helps maintain a unified hardware specification across different cabinet sections. Compliance with ANSI / BHMA 156.9 grade 1 requirements indicates that the Quadro V6 system is tested for load and cycle performance, supporting confidence when specifying these slides for frequently used drawers in residential or commercial environments.

Common Questions About Hettich Quadro V6 Slides

Selecting This Quadro V6 Slide For Your Project

The Hettich Quadro V6 15 inch soft-close full extension undermount drawer slide, left hand 9304298, combines slide on installation with catches, tool-less height adjustment, and side adjustment up to plus or minus 2 mm to support efficient, accurate drawer alignment. Galvanized steel construction suitable for rooms exposed to moisture and performance that meets or exceeds ANSI / BHMA 156.9 grade 1 requirements position this slide for demanding cabinet environments. For projects using 1/2 inch or 5/8 inch drawer sides and targeting smooth undermount movement with optional Push to open Silent, this Quadro V6 model offers a consistent hardware choice across multiple drawers.
