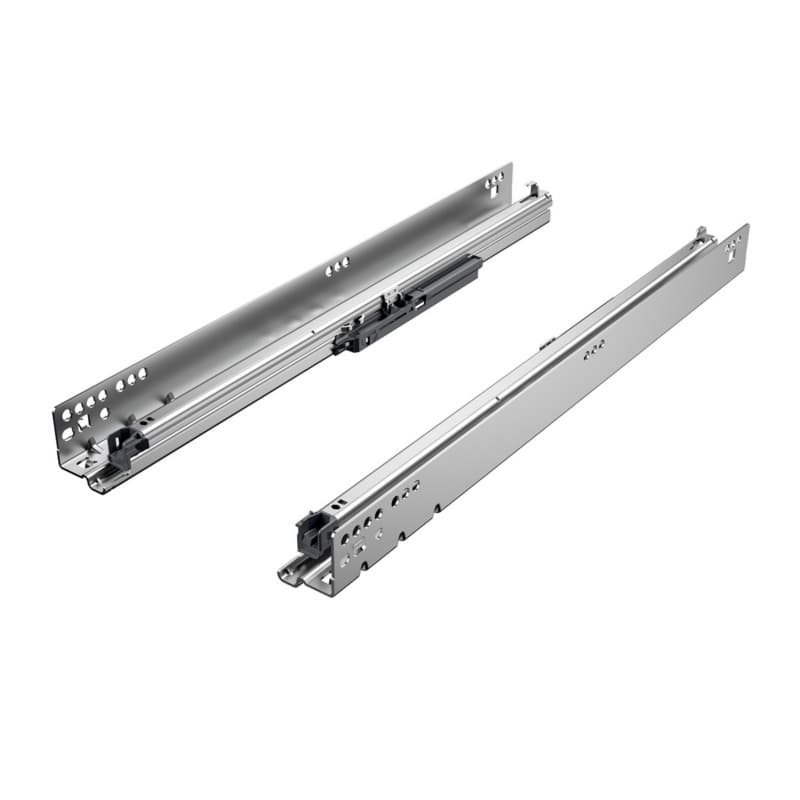

Hettich Quadro V6 15" Soft-Close Full Extension Undermount Drawer Slides, Ball Bearing Right hand Zinc - 9304299

Hettich Quadro V6 Undermount Slide For 15 Inch Drawers

Hettich Quadro V6 undermount drawer slide defines this 15 inch, right hand, full extension undermount slide with soft closing action, so a drawer can open fully and then close in a controlled, quiet way on ball bearings. The undermount design places the galvanized steel slide beneath the drawer, which keeps it out of sight while supporting the drawer on a concealed track during daily use. Soft close operation is part of the Push to open Silent system, which combines convenient opening with silent and soft closing for smooth transitions from open to closed. The full extension function lets the 15 inch slide move the drawer completely out, allowing clear access to stored items along the entire drawer length during work.

Key Quadro V6 Details That Support Daily Use

• The dynamic load capacity up to 90 lbs, as per ANSI / BHMA 156.9 grade 1 on a 21 inch length slide, means the Quadro V6 system is engineered for heavier drawer contents in typical cabinet applications.
• The static load capacity up to 100 lbs, based on ANSI / BHMA 156.9 grade 1 specifications on a 21 inch slide, indicates the slide is designed to support stored loads when drawers are at rest in normal service conditions.
• Meeting or exceeding ANSI / BHMA 156.9 grade 1 requirements shows the Quadro V6 slide is built to a recognized performance benchmark, which matters for projects that call for standardized testing and repeatable function.
• The galvanized steel construction is described as suitable for rooms exposed to moisture, so the slide material supports use in environments such as kitchens or utility spaces where humidity is present.
• Ball bearing action within the Quadro V6 design provides guided movement along the undermount track, which helps drawers travel smoothly under load during opening and closing cycles.
• The right hand designation defines the orientation of this slide within the Quadro V6 undermount system, which is important when matching parts to the intended drawer configuration.

Installation And Fit Details For Quadro V6 Slide

Hettich describes this Quadro V6 slide as using slide on installation with catches, so the drawer can be engaged with the undermount slide by sliding it into position until the catches secure it. Tool-less height adjustment is built into the system, which lets the installer shift the drawer front vertically without tools to align it with adjacent fronts. Side adjustment up to plus or minus 2 mm is available when used with 2D front fixing clips, allowing the drawer front to be moved sideways within that range to fine-tune reveals. The design fits drawers with 1/2 inch, or 13 mm, drawer side thickness and 5/8 inch, or 16 mm, drawer side thickness, so it can be used with these two common side dimensions during cabinet construction.

Using The 15 Inch Quadro V6 Slide In Cabinet Work

Where This 15 Inch Undermount Slide Fits Best

The Quadro V6 slide in this 15 inch length is part of Hettichs undermount drawer slide class, which places the running gear beneath the drawer for concealed guidance in cabinet installations. This model is identified by manufacturer part number 9304299 and is a right hand slide, so it aligns with Quadro V6 layouts that call for that orientation on one side of the drawer. The design is specified for drawer side thicknesses of 1/2 inch, or 13 mm, and 5/8 inch, or 16 mm, meaning it pairs with drawer boxes built in these material thickness ranges that are common in cabinetry. Because the slide is described as suitable for rooms exposed to moisture, its galvanized steel construction supports use in interior spaces such as kitchens, baths, or utility rooms where humidity may be present during normal operation.

Adjustment, Performance, And Workflow Advantages

The Quadro V6 system offers slide on installation with catches, which lets the drawer be mounted onto the undermount slide through a sliding engagement that locks when the catches engage, helping installers work efficiently across multiple drawers. Tool-less drawer height adjustment is integrated into the design, allowing the front to be raised or lowered without tools so vertical alignment of drawer reveals can be set quickly during fitting. Side adjustment up to plus or minus 2 mm is provided when 2D front fixing clips are used, giving lateral movement of the front within that band to align edges with adjacent fronts and doors. The Push to open Silent function is described as a convenient opening mechanism in combination with silent and soft closing, so drawers can be opened and then drawn in gently, supporting controlled movement in day-to-day use. Meeting or exceeding ANSI / BHMA 156.9 grade 1 requirements, with dynamic load capacity up to 90 lbs and static load capacity up to 100 lbs on a 21 inch slide, indicates the Quadro V6 system is engineered for demanding cabinet service where both movement and resting loads matter.

Common Questions About Hettich Quadro V6 Slide 9304299

Selecting The Right Quadro V6 Slide For Your Project

This Hettich Quadro V6 undermount drawer slide in 15 inch length, right hand orientation, and soft-close full extension format gives a concealed, ball bearing-guided solution for drawers built with 1/2 inch or 5/8 inch sides. With slide on installation, tool-less height adjustment, side adjustment up to plus or minus 2 mm using 2D front fixing clips, and performance meeting or exceeding ANSI / BHMA 156.9 grade 1 requirements, it supports precise, repeatable alignment. For cabinet projects in rooms exposed to moisture where a galvanized steel undermount slide with controlled movement is required, this Quadro V6 configuration from Wurth Baer Supply offers a clearly defined option.
