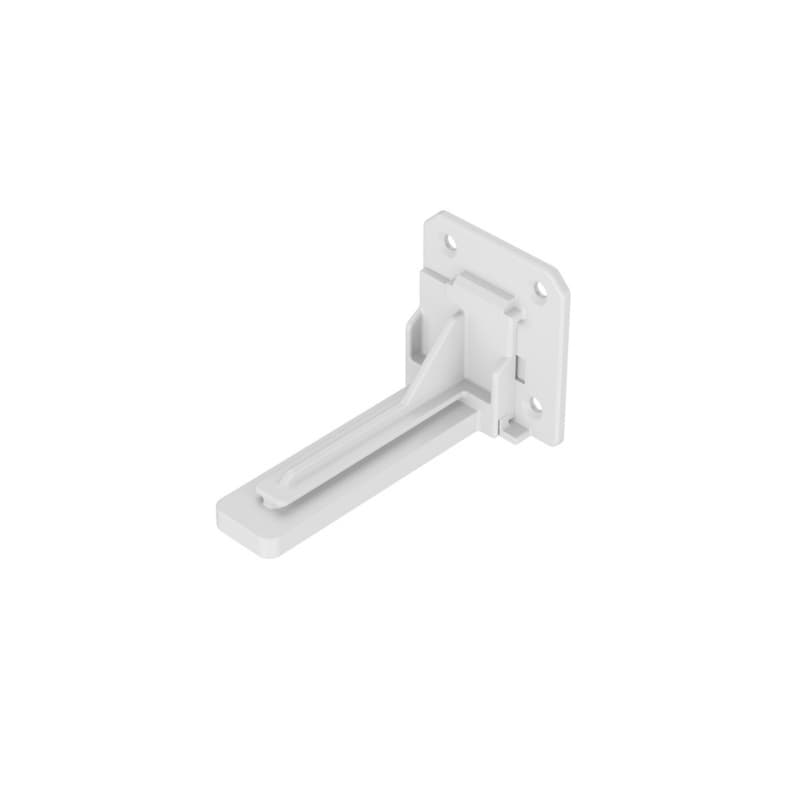

QUADRO V6 2D rear bracket is a plastic rear mount bracket from Hettich America Corporation that supports QUADRO V6 drawer slide installations by locating the slide at the cabinet back, which helps keep the slide line true from front to rear in day-to-day use. The bracket is part of a two-piece design that is pre-assembled, so the installer works with a ready-to-use unit, speeding layout on repetitive cabinet runs. This bracket is described as non-handed, which means the same basic configuration suits either side conceptually, helping shops simplify part identification for QUADRO V6 layouts. The design is specified for up to 26 mm (1 inch) depth adjustment, so the slide position at the rear can be shifted forward or back within that range, allowing the installer to tune the drawer box flush against the face plane they are working to.
This plastic rear mount bracket is described as a screw-in style in the product name and SAP description, which indicates that bracket securing is based around screw fastening into the cabinet back, helping the installer lock the bracket solidly once depth and lateral position are dialed in. The specified 26 mm (1 inch) depth adjustment gives room to bring a drawer forward or back relative to the face, supporting fine-tuning after the case is assembled. The plus or minus 16 mm (5/8 inch) side-to-side self-alignment range also means the slide can settle within that band, which is helpful when case sides and backs vary slightly, so the installer can rely on the bracket design to absorb those differences instead of reshaping cabinet parts.
This Hettich America Corporation plastic rear mount bracket with connector is described as part of the QUADRO V6 family, so its role is to support that drawer slide configuration at the cabinet back, tying the slide into the rear panel material. By locating at a rear panel thickness of 1/8 inch, the bracket is suited to cabinet backs built to that dimension, so it nests against the panel correctly without excessive gap or interference. The non-detachable 8 mm dowels mentioned in the description serve as fixed locating pins into the rear panel, giving a defined registration point that helps an installer drill matching holes and position the bracket square to the cabinet. Because the bracket offers depth adjustment up to 26 mm (1 inch), it supports drawer fronts being set flush or slightly inset as required, using the cabinet back as a reference while still allowing range for layout preferences.
The specified plus or minus 16 mm (5/8 inch) side-to-side self-alignment capability means this bracket allows the slide position at the rear to float within that lateral window, so the slide can align with the front mounting point even if the rear panel is slightly off-center. That self-alignment behavior matters when building production casework, because it helps the drawer slide track line up from front mounting bracket to rear bracket without binding. The depth adjustment range of up to 26 mm (1 inch) gives the installer the ability to move the rear of the slide along the cabinet depth, which directly affects how the drawer front meets the cabinet face once the box is hung. Together, the depth range and lateral self-alignment let the installer respond to real cabinet conditions while still using the same part, which is especially useful when replacing or servicing an existing QUADRO V6 installation that needs the rear support updated without altering the full cabinet.
The QUADRO V6 2D rear bracket supports a QUADRO V6 drawer slide at the cabinet back, so the slide remains properly located along its length, helping the drawer operate smoothly in regular use.
The bracket depth adjustment of up to 26 mm (1 inch) lets the installer shift the rear of the slide, so the drawer front can be aligned with the cabinet face plane after the drawer is mounted.
The plus or minus 16 mm (5/8 inch) side-to-side self-alignment means the bracket allows lateral play, so the slide can center itself between cabinet sides, reducing binding from minor case variations.
The non-detachable 8 mm dowels provide fixed locating points into the rear panel, so the bracket sits in a defined position, supporting consistent hole drilling and repeatable rear mounting layouts.
This plastic rear mount bracket is defined for 1/8 inch rear panel material thickness, so it is suited to cabinet backs made to that thickness in drawer slide applications.
The non-handed description indicates the bracket design does not require separate left and right hand-specific orientation, simplifying part selection for QUADRO V6 drawer slide rear mounting.
The Hettich America Corporation QUADRO V6 2D rear bracket, SAP 9308854, brings together plastic construction, non-detachable 8 mm dowels, and a pre-assembled two-piece layout to support efficient drawer slide rear mounting. With up to 26 mm (1 inch) depth adjustment and plus or minus 16 mm (5/8 inch) side-to-side self-alignment, it gives practical tuning range for drawer position and slide tracking when working with 1/8 inch rear panel material thickness. When a project calls for a rear mount bracket that matches QUADRO V6 drawer slide requirements and supports depth and lateral adjustment at the cabinet back, this plastic rear mount bracket provides those defined capabilities for the installer.
Sold In: 1 Each
