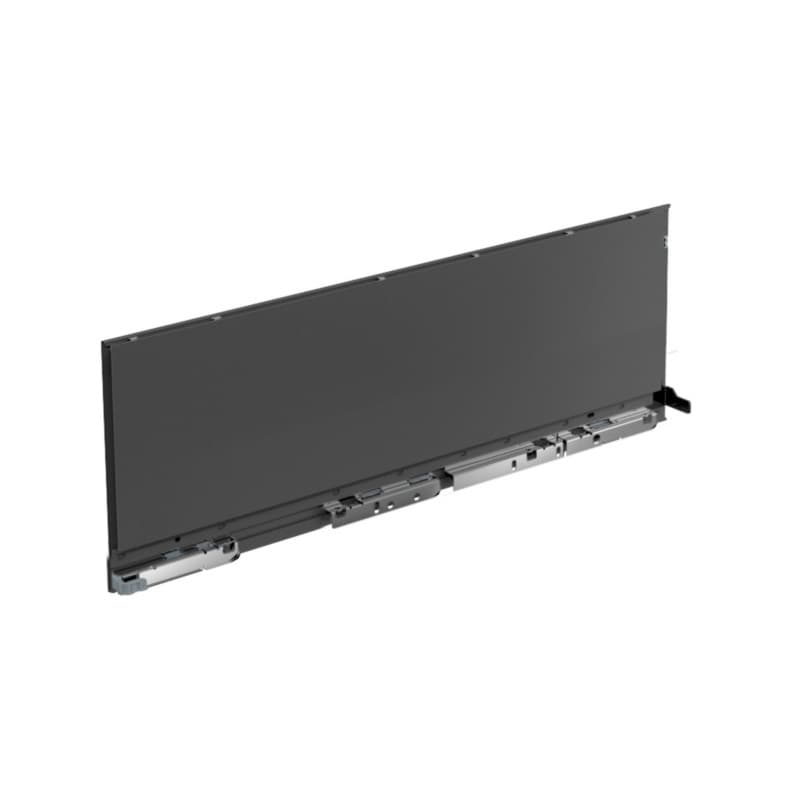

AvanTech YOU Left Hand Drawer Side Profile, 187mm Drawer Height, Anthracite, 500mm

AvanTech YOU Left Hand Drawer Side Profile Use

AvanTech YOU left hand drawer side profile defines one vertical side of an AvanTech YOU drawer, so it sets the drawer height and guides the slide movement on the left. The 187mm drawer height establishes a medium-height drawer box, which supports storage layouts that need more sidewall than a shallow drawer while staying below tall pantry-style heights. The 500mm length matches drawer depth in that size range, so cabinet and slide planning can be based directly on that fixed dimension. Powder coated steel construction gives the drawer side profile a rigid structure, helping the drawer track accurately along the runners in normal cabinet use. The anthracite finish ties into AvanTech YOU aesthetic planning, so the visible drawer sides present a consistent dark tone throughout the run of drawers.

Key Drawer Side Details That Support Work

• The drawer side profile is part of the Hettich AvanTech YOU Drawer System, so it functions within that specific drawer construction platform and supports projects already based on that system layout.
• The left hand orientation defines which side of the drawer this profile serves, simplifying planning when matching right and left components during drawer setup on a line or in the shop.
• The 187mm drawer height dimension fixes the sidewall height, which guides decisions about front heights, back pieces, and internal dividers in storage-focused cabinetry.
• The 500mm length dimension establishes the nominal drawer depth, allowing cabinet carcass depth and runner selection within the AvanTech YOU system to follow that measurement.
• The anthracite finish aligns with AvanTech YOU color options, helping maintain a uniform appearance across multiple drawers where a dark-toned drawer interior is desired.
• Powder coated steel material gives the profile a solid metal sidewall, supporting drawer box rigidity when assembled with matching system components.

Installation Role Of This Hettich Drawer Side

This Hettich AvanTech YOU drawer side profile works as the fixed left-hand structural piece in a system drawer, so it defines both the height and the depth on that side during assembly. The integrated vertical, lateral, and tilt adjustment function is built into the component, providing adjustment capability once the drawer is installed in the cabinet. Vertical adjustment lets the drawer front be shifted up or down relative to the cabinet opening, which supports even reveal lines between stacked drawers. Lateral adjustment allows fine shifting side-to-side, helping align drawer fronts with adjacent fronts within a bank. Tilt adjustment adds the ability to set the angle of the front, supporting flush alignment at top and bottom edges against the cabinet face.

Where This AvanTech YOU Drawer Side Fits In

Drawer Side For AvanTech YOU System Layouts

This drawer side profile belongs to the Hettich AvanTech YOU Drawer System, so it is intended for drawer constructions built around that specific platform. As a left hand drawer side, it occupies the left edge of the drawer box when viewed from the front, defining that boundary and engaging with AvanTech YOU runners designed for this style of side profile. The 187mm drawer height sets the scale of the drawer box, which suits cabinet designs needing a medium-height drawer for general storage or organization. The 500mm length relates to projects that are laid out around that depth class, so shop drawings and cut lists for carcasses can follow that measurement. The anthracite finish aligns with AvanTech YOU components that use the same tone, allowing this drawer side to visually integrate into a coordinated drawer interior.

Adjustment Features Supporting Precise Drawer Results

The integrated vertical, lateral, and tilt adjustment in this drawer side profile gives installers a single component that supports multiple alignment corrections after the drawer is mounted on its runners. Vertical adjustment capability lets the installer move the drawer front up or down relative to the cabinet face, which helps create consistent horizontal gaps between drawers in a stack. Lateral adjustment built into the system allows side-to-side fine-tuning, which is valuable when multiple drawers share a continuous design line or when face materials must meet closely. Tilt adjustment within the drawer side profile enables setting the angle of the drawer front, which aids in getting the top and bottom edges flush with the cabinet frame or surrounding fronts. Powder coated steel construction supports these adjustments by providing a stable structure around which the runner and front fixing components operate.

Common Questions About This Hettich Drawer Side

Selecting This AvanTech YOU Drawer Side Profile

This AvanTech YOU left hand drawer side profile from Hettich America Corporation pairs a 187mm drawer height with a 500mm length, so it suits medium-height, 500mm-deep drawers within the AvanTech YOU system. The anthracite, powder coated steel construction and integrated vertical, lateral, and tilt adjustment position this component as a structural and alignment element in system-based cabinetry work. For projects already organized around the Hettich AvanTech YOU Drawer System, this left hand drawer side profile aligns the drawer size, appearance, and adjustment capability with the overall design intent.
