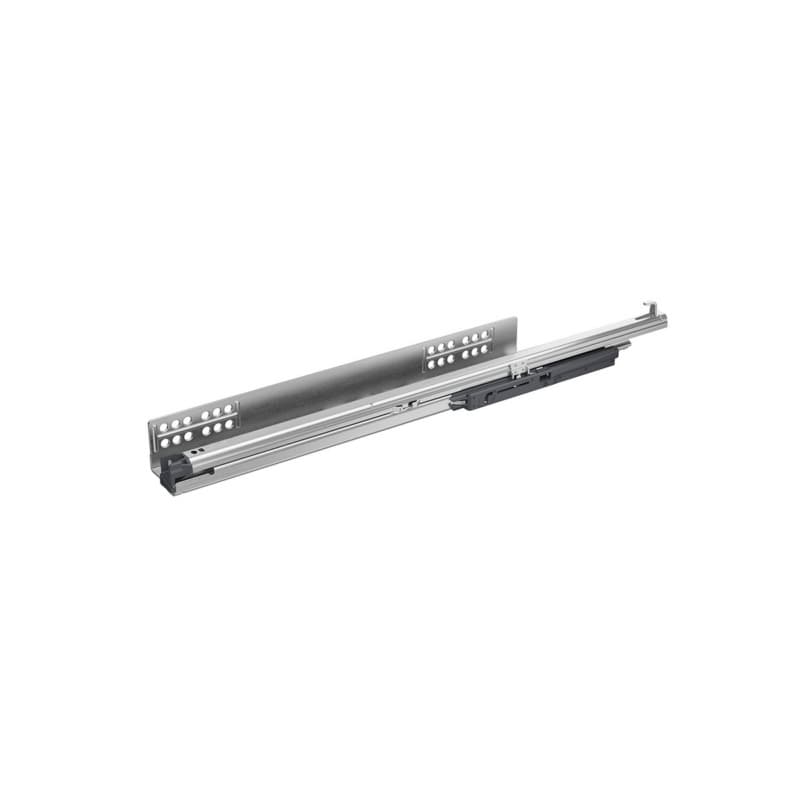

Hettich Quadro YOU 400mm Drawer Slide Use

Hettich Quadro YOU 400mm drawer slide is a full extension undermount runner that lets the drawer travel the entire 400 mm length, which opens the drawer fully so stored contents are accessible without overtravel or partial reach. This runner is designed for combining with Avan br Tech YOU system drawers or wooden drawers with catches, so the same slide supports both metal system drawers and traditional wood boxes on projects using that drawer platform. The runner is specified as left hand, which locates this piece on the left side of the cabinet, keeping orientation clear when matching it with the corresponding right-hand runner. The product is manufactured by Hettich America Corporation under part number 9256864, which ties ordering directly to the documented Hettich specification for repeat jobs or service replacements.

Key Drawer Runner Details For Project Planning

• The full extension runner design lets the drawer move out to the full nominal length, helping installers deliver clear access to the drawer interior without needing extra clearance behind the cabinet face.
• Compatibility with Avan br Tech YOU system drawers means this runner aligns with that drawer line, so cabinet runs using that platform can standardize on the same undermount slide family.
• The ability to combine with a wooden drawer with catches means one runner model supports both metal system drawers and custom wood boxes built around that interface.
• Integrated Silent System provides a soft-close function in the runner, which slows the drawer at the end of travel to reduce slamming forces on the cabinet.
• The left hand configuration defines its mounting side, which simplifies layout when pairing with the matching right-hand unit and when setting jigs or drilling patterns.
• The galvanised steel construction resists corrosion, supporting long-term performance of the slide mechanism in typical interior cabinet environments.

Undermount Slide Mounting And Load Details

This product is classified as an undermount drawer slide, so it supports the drawer from below rather than from the sides, which leaves drawer sides clear for cleaner visual lines or narrow reveals. The runner is specified with load classes XS (10 kg) and M (30 kg), tying the slide capacity to different drawer configurations so cabinet sections can be planned according to expected loading using those reference classes. Load capacity is documented to EN 15338, Level 3, which links the slide performance to a recognized furniture hardware standard for pull-out elements. The runner length of 400 mm sets the nominal cabinet depth this slide is suited to, which helps align cabinet case depth and drawer box construction around that dimension.

Using This Full Extension Runner In Cabinet Builds

Where This 400mm Undermount Slide Fits Best

This full extension runner with 400 mm length integrates into cabinet cases designed around that depth, which helps align drawer travel with standard carcass dimensions in kitchens, baths, or casework using that metric size. The product class as an undermount drawer slide supports installations where visibility of hardware is minimized, because the slide sits beneath the drawer instead of on the side. Combining with Avan br Tech YOU system drawers keeps slide and drawer from the same ecosystem, which can streamline layout when repeating cabinet modules across a project. When used with a wooden drawer with catches, the same runner underpins custom wood box construction that is prepared for the catch interface, supporting a mix of system and custom drawers on a shared slide standard. The left hand orientation is important where runners are ordered as individual sides, since it clearly identifies this unit for the left of the cabinet opening during assembly and layout.

Details That Support Smooth, Repeatable Drawer Action

The integrated Silent System builds soft-close damping directly into the runner, which moderates closing speed so drawers return smoothly and quietly into the cabinet. That damping action reduces impact loads on the face frame or front edge, which can support consistent alignment over time under regular use. The galvanised steel material gives the ball bearing runner a corrosion-resistant structure, which supports stable slide motion in typical interior humidity ranges. Load classes XS (10 kg) and M (30 kg) linked to EN 15338, Level 3 provide a tested performance framework, which helps designers map drawer width and content weight to the slide rating. Full extension travel ensures the bearing mechanism supports the drawer throughout its stroke, which contributes to stable tracking even when the drawer is opened to its full specified length. Part number 9256864 from Hettich America Corporation defines a consistent configuration every time it is ordered, which assists shops and installers in matching replacements or expanding existing runs without revalidating slide characteristics.

Common Questions About This Hettich Drawer Slide

Selecting This Quadro YOU Slide For Your Project

This Hettich Quadro YOU 400mm drawer slide offers full extension, undermount installation, and an Integrated Silent System, aligning it with Avan br Tech YOU system drawers or wooden drawers with catches. For cabinet runs built around 400 mm depth, the defined left hand orientation, EN 15338 Level 3 load capacity, and galvanised steel construction give fabricators and installers a clear, repeatable specification when standardizing on an undermount solution.
