SlideLine M profile set is a sliding door hardware solution for furniture applications where doors run across each other, so you can build cross-running fronts with a dedicated runner profile. The set uses a single aluminum runner profile to guide the sliding motion, which provides a defined track for consistent door travel. The runner profile height of 25mm establishes a compact running line, which helps integrate the hardware into furniture layouts with limited space. The 2500mm length offers a long continuous profile that can serve wider cabinets or multiple smaller units from one piece. Because the profiles can be shortened as required, you can cut the length to match specific cabinet widths, which supports custom-sized projects. When the profile length is sufficient, it can be cut into two sections to act as both top and bottom runner profiles, helping align door movement on upper and lower tracks.
The SlideLine M profile set uses a pre drilled aluminum runner profile to establish fixed mounting points, so the installer locates screws according to the prepared holes instead of laying out each position. Two mounting clips interface with the runner profile, creating defined connection points between the furniture and the running track. The 25mm high profile dimension sets the vertical position of the running line, which helps coordinate door clearance with adjacent components. Because the profile can be shortened, installers can cut it to length first, then fasten through the pre drilled pattern, supporting a straightforward workflow. When cut into separate top and bottom runner profiles from a long piece, both tracks share the same section geometry, which supports aligned sliding behavior between upper and lower guidance.
The SlideLine M profile set is intended for furniture applications with doors running across each other, so it fits projects such as cabinets or similar casework that need overlapping sliding fronts. As a sliding door hardware component in the builders hardware category, it serves as the structural runner element in a sliding system. The 2500mm aluminum runner profile provides enough length for many furniture widths, allowing one piece to cover a wide sliding opening or be allocated across several narrower units. Because the profile can be shortened as required, workshops can prepare multiple cabinet runs from a single profile, matching each carcass width. When the profile length allows, cutting it into top and bottom runner profiles gives both the upper and lower tracks the same 25mm high section, which helps keep door motion parallel between the two guidance points in the furniture.
The aluminum runner profile is silver anodized, which creates a treated surface along the sliding path that supports long-term running quality under typical cabinet service. Pre drilled holes in the profile remove the need to mark individual fastener locations, so the mounting line stays straight and supports accurate runner alignment from end to end. The presence of two mounting clips establishes fixed engagement points between the furniture structure and the runner profile, which stabilizes the track position during use. When profiles are shortened, the installer retains the pre drilled pattern along the cut length, which keeps a series of defined fastening points available on each custom-sized piece. Using one 2500mm profile cut into both top and bottom runner profiles gives upper and lower tracks matching geometry, which supports even door tracking and helps reduce misalignment between the door edges over time.
The SlideLine M profile set is used for furniture applications with doors running across each other, so it suits cabinets and similar casework needing overlapping sliding fronts.
The runner profile has a length of 2500mm and a height of 25mm, setting both the available track span and the vertical running line within the furniture carcass.
The SlideLine M profile can be shortened as required, allowing the 2500mm runner profile to be cut to match specific cabinet widths or multiple smaller units.
If the 2500mm length is sufficient, the profile can be cut into two parts, so the same section serves as both top and bottom runner profiles for aligned sliding tracks.
The runner profile is aluminum with a silver anodized finish, providing a treated metal running surface suited to typical sliding door furniture applications.

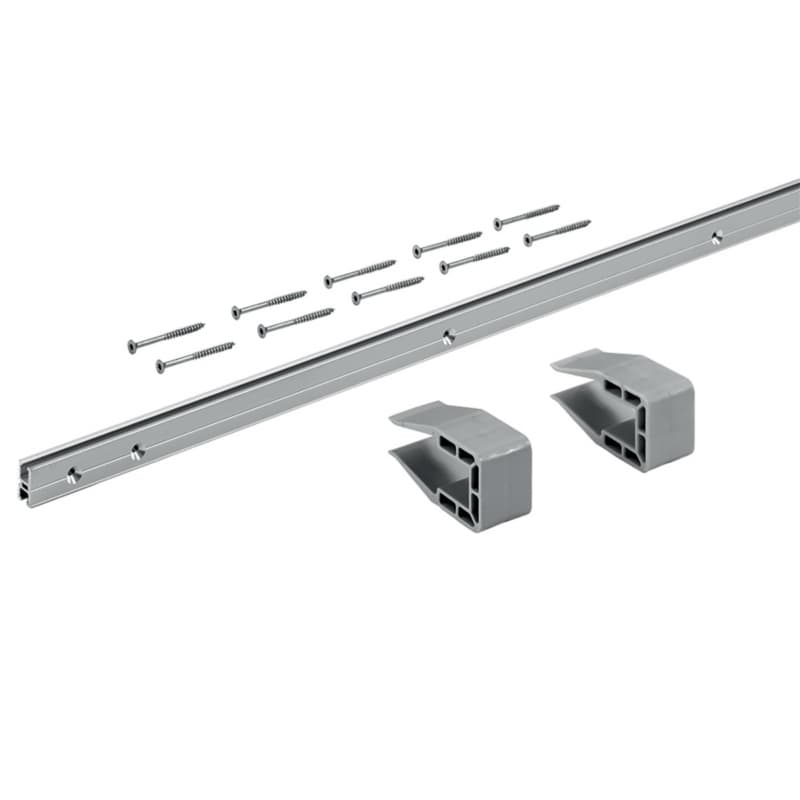

The SlideLine M profile set has one aluminum runner profile, two mounting clips, and fixing screws, forming the core running track and its mounting interface.
The SlideLine M profile set from Hettich America Corporation combines a 2500mm, 25mm high aluminum runner profile with mounting clips and fixing screws, giving sliding door hardware targeted to furniture applications with doors running across each other. The silver anodized, pre drilled runner profile supports accurate fastening and a defined running path, while the ability to shorten the profile or cut it into top and bottom runners supports varied cabinet widths and layouts. For projects needing a dedicated sliding door hardware profile in builders hardware and sliding door hardware work, this set offers the runner track and mounting interface needed to execute cross-running furniture fronts.
Sold In: 1 Set
