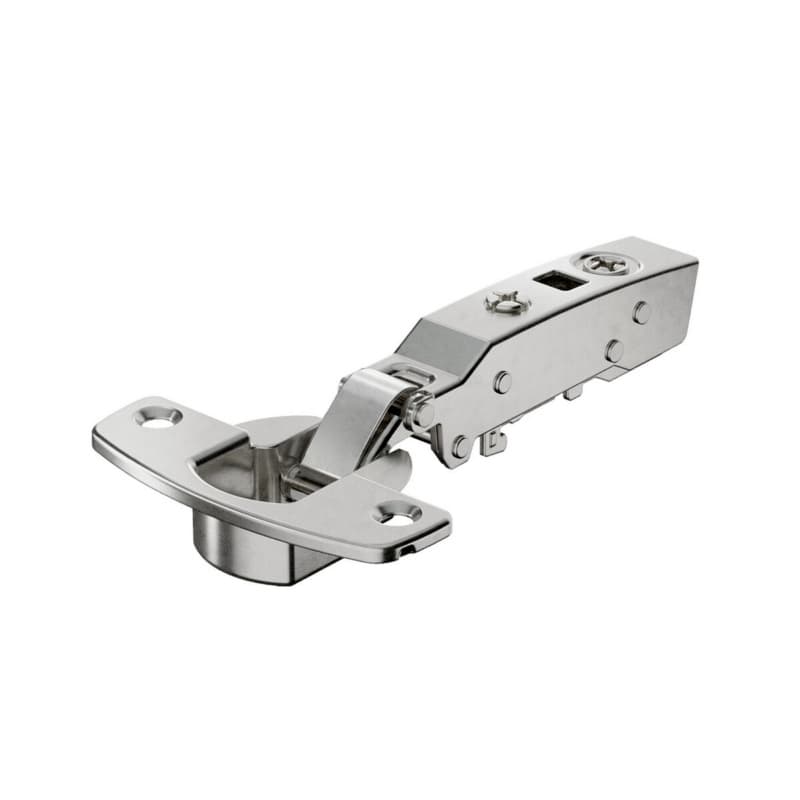

Sensys 95 hinge self close describes a Hettich Sensys 95 degree thick door hinge designed to handle door thickness up to 32 mm, so it supports heavier or thicker cabinet doors in applications where standard hinges are not suitable. This hinge belongs to the Sensys 8631 series and functions as a concealed cabinet hinge, which keeps hardware hidden from view and supports a clean cabinet appearance on both face-frame and frameless builds. The hinge is specified for full overlay applications on face-frame cabinets and frameless cabinets, so it can be used across different case construction styles while maintaining the same hinge line. Its self closing feature pulls the door shut at the end of travel, which helps doors seat firmly against the case without relying on additional catches. The hinge uses a screw-on mounting style, so it attaches mechanically to the cabinet and door for a secure fit in woodworking environments.
The Sensys 95 degree thick door hinge is defined with a drilling pattern TB 45 x 9,5 mm, which specifies cup hole positioning and supports repeatable boring when setting up doors on drill presses or line-boring machines. The hinge features height adjustment at the mounting plate, so installers can shift the door position vertically after mounting to fine-tune reveals and alignment between adjacent doors or drawer fronts. The hinge is described as a screw-on type, meaning the components fasten to the door and cabinet with screws to give a rigid mechanical connection suited to routine cabinet use. As part of the Sensys 8631 series, the hinge is configured without Silent System, so it closes firmly using its self closing feature while leaving soft-close motion control to other hardware choices if desired.
The Hettich Sensys self close full overlay hinge is categorized as a European concealed long arm hinge and as a European thick door hinge, so it fits within modern frameless and face-frame cabinet construction where a concealed long-arm design is preferred. Because it is specified for full overlay on both face-frame and frameless cabinets, this hinge supports layouts where doors cover the front edge of the cabinet box and face frame, helping create continuous door runs on kitchen, bath, or casework projects. Its ability to work with door thickness up to 32 mm means it is suited to installations using thicker solid doors, applied-panel fronts, or build-ups where standard thin-door hinges might not provide proper geometry. The concealed cabinet hinge classification shows that the hinge hardware sits inside the hinge cup and plate system, leaving only the door surface visible when closed, which supports clean design lines in residential or commercial cabinetry.
The hinge operates at 95 degrees, so the open position is defined and predictable, which helps in planning cabinet interior layouts and clearances for pull-outs or adjacent fronts. The self closing feature without Silent System provides an automatic pull-in action near the end of closing, which helps keep doors pulled tight against the cabinet front and can reduce the need for separate latching devices. Height adjustment at the mounting plate allows vertical tuning of the door position after installation, so minor variations in drilling or cabinet construction can be compensated without remaking doors or cases. The drilling pattern TB 45 x 9,5 mm standardizes the bore layout, which supports efficient production when many doors are processed using the same settings. The nickel plated steel construction combines a steel hinge body with a nickel surface, so the hinge offers structural metal support while presenting a consistent metallic finish that pairs with other nickel finished cabinet hardware. The EN 15570, Level 2 quality classification indicates the hinge has been classified according to a European hinge performance standard, so it gives specifiers and installers a common reference point when selecting components for cabinet projects.
The Sensys 8631 thick door hinge supports door thickness up to 32 mm, so it can be used on doors with added panels or heavier constructions.
The Hettich Sensys thick door hinge is specified as a 95 degree hinge, so doors open to a defined angle suited to many cabinet layouts.
The hinge is described as a full overlay hinge for face-frame and frameless cabinets, so it is intended for doors that cover the cabinet front.
The Sensys 95 degree thick door hinge has a self closing feature without Silent System, so it pulls the door shut at the end of travel.
The Sensys 95 degree hinge is a screw-on type, so it mounts to the door and cabinet with screws for a secure mechanical connection.
The hinge provides height adjustment at the mounting plate, which allows vertical tuning of the door position after installation.
The Hettich Sensys 95 degree thick door hinge, part number 9091520, combines self closing action, full overlay geometry for face-frame and frameless cabinets, and suitability for doors up to 32 mm thick, so it addresses many thick-door cabinet layouts. Its EN 15570, Level 2 quality classification, nickel plated steel construction, and standardized TB 45 x 9,5 mm drilling pattern support consistent performance in woodworking environments. When a concealed cabinet hinge is needed for thick doors with a 95 degree opening angle, this Sensys 8631 hinge offers a defined specification that aligns cabinet design, drilling, and mounting plate adjustment in one hardware choice.
Sold In: 1 Each
