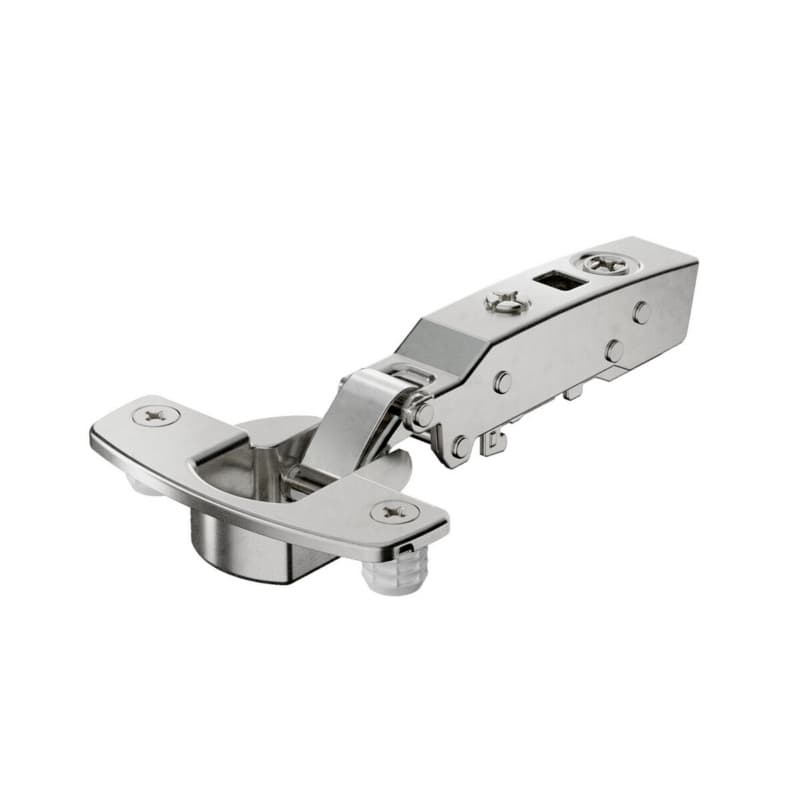

Sensys thick door hinge is a concealed cabinet hinge designed for doors from 15 to 32 mm thick, so it handles standard and thicker cabinet doors in the same hardware family. The 95 degree opening angle controls how far the door swings, which helps avoid doors contacting adjacent cabinets or walls in tight layouts. The hinge is rated as a Sensys 8631i model with self-closing feature, so the cup and arm geometry are tuned for thick doors while still pulling the door shut at the end of travel. Integrated Silent System in the hinge softens closing movement, which reduces door impact and helps protect cabinet fronts in everyday use. Quality classification under EN 15570, Level 2, describes a tested performance level that supports repeatable operation in regular cabinet service.
The hinge installs with a drilling pattern of TB 45 x 9.5 mm, so cup holes can be laid out using matching boring equipment or jigs based on those center distances. A cup depth of 12.8 mm defines how deep the bore in the door needs to be, which is important when working with thicker doors where material behind the cup is limited. Installation with expanding sockets secures the hinge cup in the bored hole, which speeds mounting on production runs and helps keep the cup tight in the door. Height adjustment is handled at the mounting plate, so vertical door alignment across a row of cabinets is set on the plate interface rather than at the cup.
This Hettich Sensys self-close full overlay hinge is specified as a thick door hinge for doors up to 32 mm, so it suits cabinetry where heavier or thicker fronts are part of the design. The overlay door mounting option lets the door cover the cabinet front, which supports frameless and face-frame layouts that rely on overlay for visual alignment. As a concealed cabinet hinge, it fits into a bored cup in the back of the door, so when the door is closed, the hardware is hidden and the cabinet front remains clean. The 95 degree opening angle still provides usable access into the cabinet interior, while limiting swing enough to help reduce interference with nearby fronts and walls.
The hinge integrates overlay adjustment of plus 2 mm to minus 2 mm, so the door position sideways relative to the cabinet edge can be fine-tuned after mounting to tighten gaps. Integrated depth adjustment of plus 3 mm to minus 2 mm changes how far the door face sits from the cabinet side, which helps align thick doors flush along a run. Height adjustment at the mounting plate lets the door be shifted up or down on the cabinet, which helps match reveals across multiple doors without refitting the cup. Together these integrated adjustments reduce rework when setting thick doors, because alignment changes can be made at the hardware instead of altering the cabinet or door.
The hinge is specified for door thickness from 15 to 32 mm, which lets it support standard cabinet doors and thicker door designs within that range.
The hinge has a 95 degree opening angle, so the door swings to roughly a right angle from the cabinet, helping balance interior access with reduced interference.
The hinge is a Sensys 8631i model with integrated Silent System and self-closing feature, so it pulls the door shut and softens the closing motion.
The hinge has plus 2 mm to minus 2 mm integrated overlay adjustment, which lets the door be shifted sideways to even out gaps along the cabinet front.
The hinge uses a TB 45 x 9.5 mm drilling pattern and a 12.8 mm cup depth, so boring operations can be set directly to those values during door preparation.
The hinge is made from nickel plated steel, which provides a robust concealed arm and cup with a protective plated surface for cabinet environments.
The Hettich Sensys self-close full overlay thick door hinge in nickel plated steel offers concealed mounting, 95 degree opening, and overlay, depth, and height adjustments tuned for 15 to 32 mm doors. Those integrated features help set thick cabinet doors cleanly on face-frame or frameless cabinets while controlling door swing and closing behavior. Choosing this Sensys thick door hinge supports accurate alignment and a quiet closing feel on cabinetry built around heavier fronts.
Sold In: 1 Each
