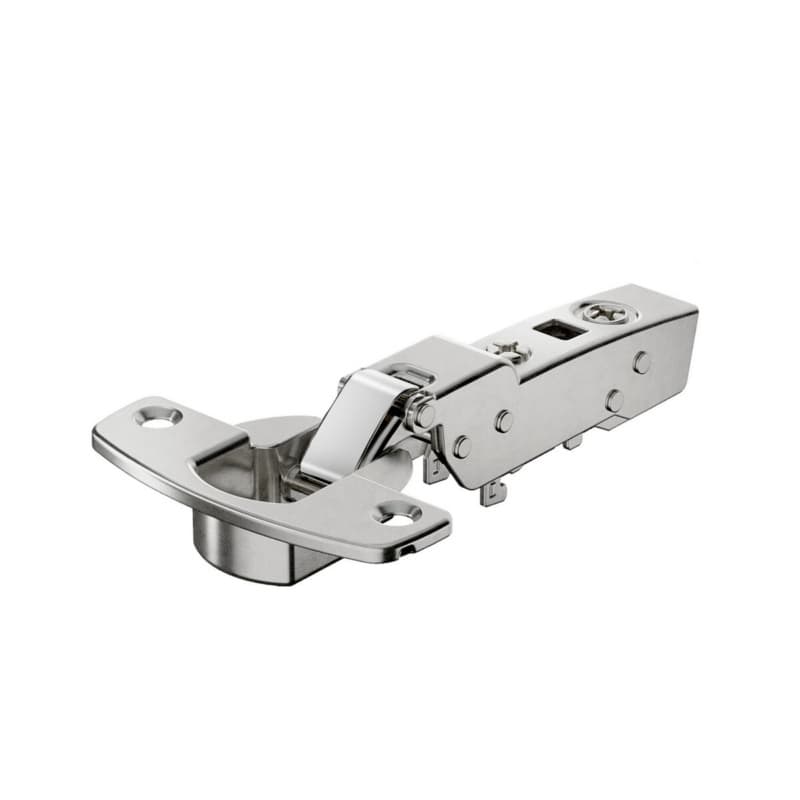

Sensys 95 Degree Thick Door Hinge For Cabinets

Sensys 95 degree thick door hinge is a concealed cabinet hinge designed for thick cabinet doors in professional woodworking projects. The hinge is specified for door thickness up to 32 mm, which allows it to handle heavy or thick fronts common in higher-end cabinetry where standard hinges are not suitable. As a half overlay hinge for face-frame and frameless applications, it supports layouts where the door only partially covers the cabinet side, giving designers flexibility in reveal and spacing. The hinge belongs to the Sensys 8631 series with a self closing feature, so the hinge pulls the door closed at the end of travel, which helps achieve consistent door closing behavior across multiple openings. The 95 degree opening angle defines the swing range, which is useful where adjacent cabinets, walls, or appliances limit how far the door should open.

Key Sensys 95 Degree Thick Door Hinge Advantages

• The stated door thickness up to 32 mm allows this hinge to support thick fronts often used on frameless and face-frame cabinets, so installers can match hardware to heavy doors without changing their construction.
• The half overlay design for face-frame and frameless use supports layouts where doors share stiles or panels, which helps maintain consistent reveals across a run of cabinets.
• The self closing feature in the Sensys 8631 hinge pulls the door shut over the final part of travel, which aids in achieving neat, aligned fronts without extra latches.
• The 95 degree opening angle sets a controlled swing range, which is helpful near corners or obstacles where full 110 degree or wider openings are not practical.
• The steel nickel plated construction provides a robust metal hinge body with a nickel surface, which supports a uniform appearance in the cabinet interior.
• The quality classification under EN 15570, Level 2, signals that the hinge meets a defined performance level, which supports confidence in repeatable function across multiple doors.

Screw-On Thick Door Hinge Mounting Details

This Sensys thick door hinge uses a screw-on mounting method, so it attaches to the door and mounting plate using screws to create a solid mechanical connection. The drilling pattern TB 45 x 9.5 mm defines the cup bore position on the door, which helps drilling jigs and CNC programs locate the hinge accurately during production. Height adjustment is specified at the mounting plate, which allows vertical fine-tuning of the door position after the hinge is fixed, helping align doors to adjacent fronts and frames. Because the hinge is part of the European concealed long arm hinge class, its geometry keeps the hardware hidden when the door is closed, supporting clean cabinet lines while still allowing adjustment access during installation.

Using This Concealed Hinge In Cabinet Projects

Where This Thick Door Hinge Is Applied

This Hettich Sensys self close half overlay hinge is identified as a concealed cabinet hinge within the European thick door hinge category, so it is intended for cabinet doors that exceed standard thicknesses. Its suitability for door thickness up to 32 mm supports use on substantial doors, such as thick solid fronts or applied-panel construction, where increased mass demands a hinge designed for that geometry. The half overlay configuration for face-frame and frameless cabinets makes it appropriate on runs where doors partially cover the cabinet side or frame, such as shared stiles or paired doors on a single opening. Because it belongs to the European concealed long arm hinge family, it fits projects where hidden hardware and full-overlay style fronts are part of the design language.

Details That Support Consistent Hinge Performance

The Sensys 8631 self closing feature means the hinge takes over during the closing motion, pulling the door shut in the final degrees, which helps maintain consistent closing even when users do not push the door fully. The 95 degree opening angle sets a repeatable stop point, which simplifies planning for adjacent cabinets and ensures the same swing behavior across a bank of doors. Height adjustment at the mounting plate allows the installer to shift the door vertically relative to the cabinet, which is useful for aligning reveals, matching rail lines, and compensating for slight drilling variances. The drilling pattern TB 45 x 9.5 mm standardizes the cup location, supporting fast, repeatable machining whether drilling is done by hand jig or automated equipment. The steel nickel plated construction delivers a hinge body made from steel with a nickel finish, which provides a consistent interior appearance that coordinates with other nickel plated cabinet hardware. The quality classification under EN 15570, Level 2, indicates the hinge has been assessed to that standard, supporting projects that call for hardware with documented performance characteristics.

Common Questions About Hettich 9091530 Hinge Use

Select This Hinge For Thick Cabinet Doors

The Hettich Sensys self close half overlay hinge, part number 9091530, combines thick door capacity up to 32 mm with a 95 degree opening angle for controlled swing. Its screw-on design, TB 45 x 9.5 mm drilling pattern, and height adjustment at the mounting plate support efficient installation and fine tuning on face-frame or frameless cabinets. With steel nickel plated construction and EN 15570 Level 2 classification, this European concealed cabinet hinge offers a defined performance profile that fits demanding cabinet projects where thick doors and consistent closing behavior are required.
