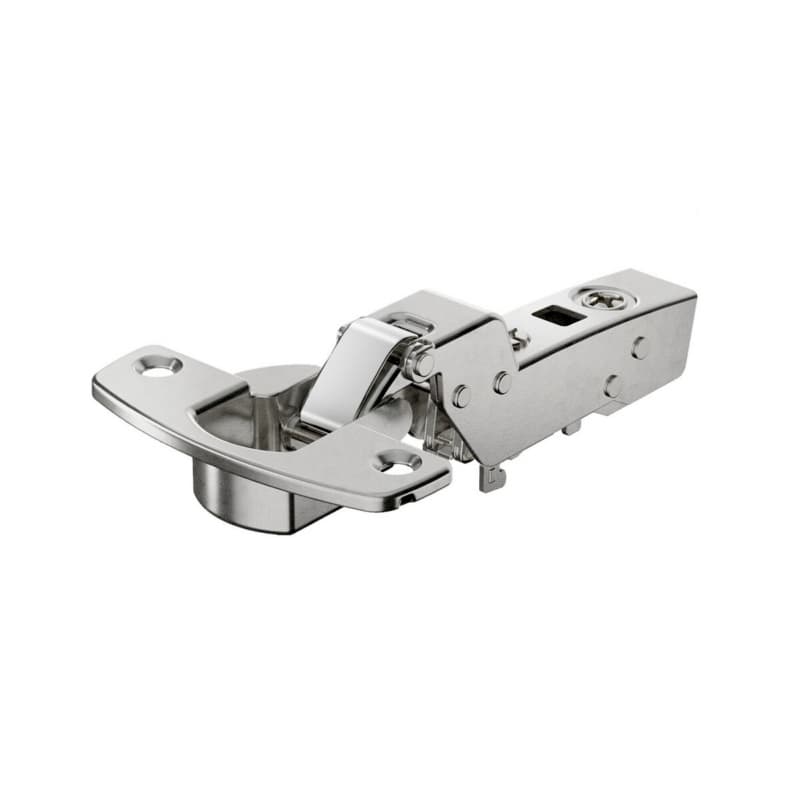

Sensys 95 degree thick door hinge gives you a concealed hinge solution for inset and thick cabinet doors on face-frame or frameless construction. The hinge is part of the Sensys 8631 series, so it is engineered specifically for thick doors up to 32 mm, which helps when you are working with heavier or specialty fronts. The 95 degree opening angle supports typical cabinet access while helping control door travel in tighter runs. This hinge is self closing without a Silent System, so the spring closes the door reliably to the cabinet without added damping components to consider during layout. As a concealed cabinet hinge with a long arm design, it stays out of sight when the door is closed, which maintains a clean cabinet appearance while still giving you standard adjustability at the mounting plate.
This Sensys 95 degree hinge is a screw-on design, so it fastens to the door and mounting plate using standard screw fixing, which suits installers who prefer direct mechanical attachment to wood or plate. The product description notes height adjustment at the mounting plate, giving you vertical adjustment after mounting to bring inset doors into line with cabinet rails and adjacent fronts. As a concealed cabinet hinge for inset overlay on face-frame and frameless applications, it is configured for cabinet layouts where the door sits within the opening, and the hinge geometry supports that relationship during installation. The TB 45 x 9.5 mm drilling pattern on the Sensys 8631 cup keeps your boring work predictable, which helps when you are batching doors or using line-boring or CNC programs tied to this pattern.
The Hettich Sensys self close inset overlay face-frame and frameless thick door hinge 9091540 is specified for cabinets where the door is inset and made from material up to 32 mm thick, so it fits projects using hefty solid wood or laminated doors. Being part of the European concealed long arm hinge category, it is suited to cabinetry where hidden hardware is preferred, such as kitchens, baths, and built-ins that call for clean door faces. The hinge is designed for both face-frame and frameless cabinets, which lets you run the same hinge family across different box constructions within a project. Its 95 degree opening suits wall and base cabinets in runs where adjacent doors or walls limit how far each door should open, and the self closing action supports everyday residential or light commercial cabinet use where a positive close is useful.
The Sensys 8631 design with self closing function without Silent System focuses on a clear closing action, which helps you predict how the door will behave once adjusted without compensating for damping lag or variable closing speeds. Height adjustment at the mounting plate lets you fine tune the door position relative to cabinet rails and neighboring doors after the hinges are fixed, so minor drilling tolerances or wooden cabinet movement can be corrected with plate adjustment instead of reboring. The TB 45 x 9.5 mm drilling pattern standardizes the hinge cup location, which allows you to set up boring jigs or CNC programs once and repeat them on every door assigned to this hinge, improving shop throughput. Steel nickel plated construction combines a sturdy steel hinge body with a nickel finish that stands up to typical interior cabinet environments, so hinges continue to function and present a consistent appearance over time in normal woodworking applications.
The Sensys 95 degree thick door hinge is designed for door thickness up to 32 mm, which lets you use thicker solid or laminated doors while staying within the hinge specification.
The Hettich 9091540 hinge has a 95 degree opening angle, giving typical cabinet access while helping limit how far doors swing in tight installations.
The Sensys 8631 hinge is self closing without Silent System, so the built-in spring pulls the door shut at the end of travel for a positive close.
This hinge is a screw-on design, so it is secured to the door and mounting plate using screw fixing, providing a firm mechanical connection to cabinet components.
The hinge uses drilling pattern TB 45 x 9.5 mm, which defines the cup hole layout and allows repeatable boring using jigs or programmed machinery.
This Hettich Sensys hinge carries quality classification under EN 15570, Level 2, indicating it meets a defined performance level for concealed hinge testing.
The Sensys 95 degree thick door hinge from Hettich America Corporation brings a concealed, self closing option for inset doors up to 32 mm on face-frame and frameless cabinets, using a screw-on design and TB 45 x 9.5 mm drilling pattern. When your project calls for a European concealed long arm hinge with EN 15570 Level 2 classification and nickel plated steel construction, this 9091540 model aligns those needs with a consistent installation pattern. Use it wherever a 95 degree opening angle and Sensys 8631 self close function match your cabinet layout and door thickness.
Sold In: 1 Each
