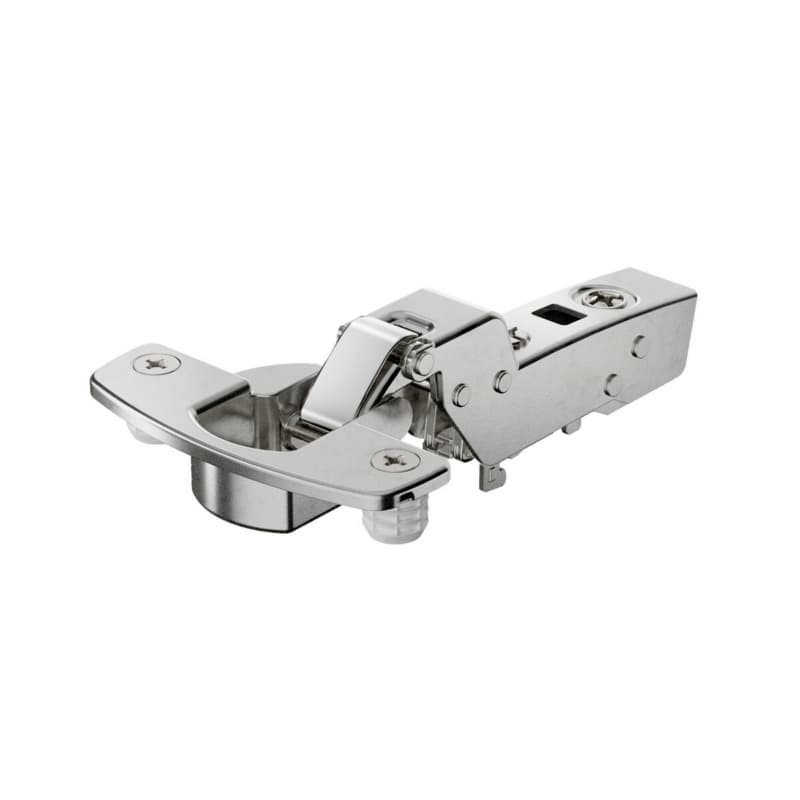

Hettich Sensys Self-Close Inset Overlay Face-Frame;Frameless Thick Door Hinge Nickel, 95° Dowel - 9091541

Sensys 95 Hinge Self Close Inset Dowel Use

Sensys 95 hinge self close inset dowel describes a Hettich Sensys 8631 concealed cabinet hinge designed for inset applications, so doors sit flush with the cabinet frame for a clean, built-in look on finished work. This hinge is specified as a thick door hinge for door thickness up to 32 mm, so it supports heavier or thicker fronts often used in higher-end cabinetry without changing to a different hinge family. The hinge opens to 95 degrees, giving enough swing for comfortable access while keeping the door from overextending into adjacent fronts in tight runs. It is a self closing hinge without Silent System, so the internal mechanism pulls the door shut at the end of travel without added soft-close damping, which simplifies component interaction and gives a firm close on standard cabinet projects.

Key Sensys 95 Hinge Details For Projects

• The hinge is part of the Sensys thick door hinge range with door thickness up to 32 mm, which lets you use thicker doors while staying in a known drilling pattern and hardware line across the job.
• The product is classified as a concealed cabinet hinge in the European long arm hinge category, so it stays hidden inside the cabinet for a clean exterior, useful on visible kitchen and bath installations.
• The model is identified as Hettich Sensys series 8631, giving you a consistent geometry and behavior if you are aligning this hinge with existing Sensys layouts or repeating a proven construction detail.
• The hinge is steel nickel plated, so the steel core carries the load and the nickel plating provides a hard, corrosion-resistant surface in typical indoor cabinet environments like kitchens, baths, and shop fixtures.
• Quality classification under EN 15570, Level 2, indicates the hinge has been tested to a recognized European standard, giving confidence when specifying it for repeat-use cabinet doors in residential or light commercial projects.

Mounting And Adjustment Characteristics In Use

The drilling pattern is specified as TB 45 x 9.5 mm, so cup holes and dowel positions follow a defined layout that supports accurate drilling and repeatable mounting across multiple doors. The hinge is described as a dowel version, so it is intended for press-in style installation into the door, which can speed production in shop environments set up with line boring or specialized drilling equipment. Height adjustment at mounting plate is provided, so final vertical alignment happens at the plate interface rather than redrilling, which helps fine-tune reveals along a run of doors. The hinge is described as suitable for inset overlay face-frame and frameless thick door applications, so it supports both face-frame and frameless cabinet constructions within the stated door thickness range.

Where This Sensys Thick Door Hinge Works Best

Applications On Face-Frame And Frameless Cabinets

This Sensys 95 thick door hinge is specified for inset overlay face-frame and frameless thick door hinge applications, so it can serve both traditional face-frame cabinets and frameless European-style cases using a single hinge family. Being a concealed cabinet hinge, it installs inside the cabinet so hardware stays out of sight when the door is closed, which is useful when you want uninterrupted door surfaces on painted, stained, or laminated fronts. Its design for door thickness up to 32 mm means thicker shaker, applied molding, or engineered fronts remain compatible within that range, letting you maintain consistent reveals even when door styles vary in thickness on the same project. The 95-degree opening angle keeps the door clear enough for everyday access while helping avoid conflict with adjacent doors or walls in tighter layouts, important on corner cabinets or close returns.

Details That Support Repeatable Alignment And Workflow

The drilling pattern TB 45 x 9.5 mm defines cup and dowel positions, so once jigs or CNC programs are set, holes can be repeated across many doors without changing setups, supporting production efficiency. The dowel configuration works well with line-bored doors, where pressed-in dowels provide consistent positioning from door to door, which is valuable for shops running batch work. Height adjustment at mounting plate lets you shift the door vertically relative to the cabinet after mounting, so you can bring margins into line without altering the original drilling, reducing rework time. The hinge is steel nickel plated, which gives a robust steel body for repeated opening and closing while the nickel finish provides a durable surface suited to indoor cabinetry. With quality classification under EN 15570, Level 2, the hinge aligns with an established standard, supporting its use in everyday residential and similar cabinet installations. The self closing feature without Silent System brings the door positively to the closed position, which helps maintain consistent door positions on runs of cabinets without relying on additional closing devices.

Common Questions About This Sensys 95 Hinge

Selecting This Sensys Hinge For Your Project

This Sensys 95 thick door hinge from Hettich America Corporation combines inset application capability, door thickness up to 32 mm, a 95 degree opening angle, and self closing action without Silent System, giving a defined behavior for everyday cabinet doors. Its TB 45 x 9.5 mm dowel drilling pattern and height adjustment at mounting plate support efficient drilling routines and on-site alignment. For projects needing a concealed cabinet hinge matching EN 15570, Level 2 classification with a steel nickel plated construction, this Sensys 8631 model offers a consistent specification to build around.
