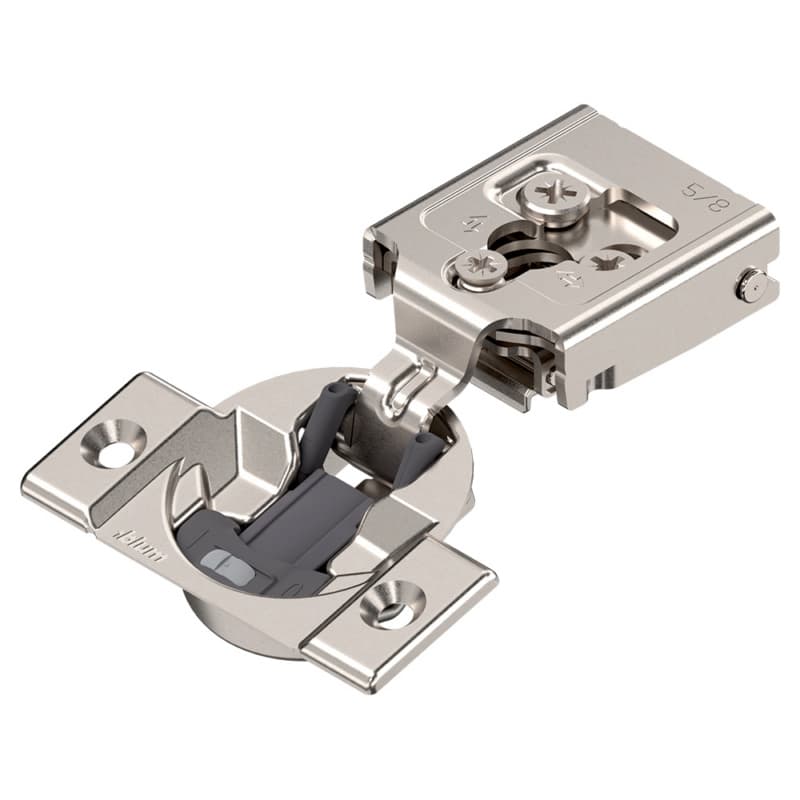

Blum Compact 30C Soft-Close BLUMOTION 1/2" Overlay Face-Frame Hinges Nickel, 105° Screw-On - 30C255BE8
Description
Blum Compact 30C Soft Close Hinge For Face Frames
Blum Compact 30C soft close hinge is a concealed cabinet hinge for 1/2 inch overlay face-frame doors, so it keeps hardware out of sight while setting the correct reveal on typical framed cabinets. This hinge utilizes Blum's CLIP technology, which lets the hinge clip to the mounting plate in one motion, saving time during runs of doors or when removing doors for finishing. BLUMOTION is integrated into the hinge cup, so the soft-close function is built into the hinge body rather than added as a separate device, helping maintain a clean interior. A deactivation switch for small or light doors lets you shut off BLUMOTION on that hinge, which helps prevent over-damping on narrow or low-mass doors. The hinge is nickel finished, giving the hardware a consistent appearance inside the cabinet.
Key Hinge Details That Support Cabinet Work
- The hinge design is for 1/2 inch overlay on face-frame cabinets, which sets door position predictably when laying out multiple openings across a run.
- The concealed construction keeps the hinge hidden when the door is closed, which maintains a clean cabinet exterior while still providing full hinge function inside the case.
- CLIP technology provides a tool-free clip-on connection at the hinge, which speeds mounting and door removal during installation or later adjustments.
- Integrated BLUMOTION in the hinge cup controls the closing action, which reduces door slamming and helps protect door edges and frames over repeated use.
- The deactivation switch for BLUMOTION on small or light doors lets you tune the soft-close effect, which helps doors close fully without bounce on lighter constructions.
- The nickel finish on the hinge components provides a uniform metal surface, which keeps the interior hardware look consistent across a job.
Face Frame Hinge Mounting And Adjustment Details
This 105 degree soft close hinge is designed as a concealed face-frame hinge, so it opens cabinet doors to a typical working angle while keeping the hardware hidden from the front. The screw-on style uses screws for attachment at both the hinge and face-frame connection points, which provides a secure mechanical mount into wood frames and doors. A 7-16 inch cup depth is built into the hinge, so the boring depth in the door stile must match that depth for proper seating. Three dimensional cam adjustment is provided on the hinge, which means the installed door position can be shifted in height, side-to-side, and in and out at the hinge without redrilling.
How This Blum Compact CLIP Hinge Performs In Use
Where This Face Frame Hinge Is Typically Applied
This Blum Compact CLIP face frame hinge is part of Blum's concealed cabinet hinge class, so it fits projects using framed cabinet construction where a 1/2 inch overlay is specified. The 105 degree opening angle provides access for everyday kitchen or shop cabinet use, while still keeping the door clear of adjacent faces in most standard layouts. With BLUMOTION integrated into the hinge cup, each door position is controlled directly at the hinge, which keeps the soft-close function aligned with the motion of the door rather than relying on a separate device. The 7-16 inch cup depth is suited to standard cabinet door boring operations, so doors bored to that depth seat the hinge cup firmly in the stile.
Why These Hinge Adjustments Support Repeatable Results
The three dimensional cam adjustment built into this hinge allows fine-tuning in height, side-to-side, and depth at the hardware, which helps align reveals across multiple doors without shifting mounting holes. CLIP technology in the hinge connection lets doors be removed and reinstalled quickly, which is useful during finishing, hinge plate installation, or field adjustments. The BLUMOTION deactivation switch is specific to small or light doors, so soft-close can be switched off on that hinge where reduced resistance helps those doors shut positively. The overload safety feature in the hinge works with the BLUMOTION function, so the soft-close system is protected when higher force is applied as doors are used. Because the hinge is described as Compact 30C and identified by part number 30C255BE8, matching this hinge to the same series across a job helps keep opening angle, overlay function, and adjustment behavior consistent from one cabinet to the next.
Common Questions About This Blum Cabinet Hinge
What type of cabinets use this Blum Compact 30C hinge?
The Blum Compact 30C soft close hinge is for face-frame cabinets with 1/2 inch overlay doors, so it suits framed construction where the door overlays the frame by that amount.
How far does this BLUMOTION hinge allow the door to open?
The hinge is rated at 105 degrees, which provides a typical cabinet door swing for access while keeping the door within a controlled opening range.
How does the three dimensional cam adjustment help during installation?
The three dimensional cam adjustment lets the installed door move up-down, side-to-side, and in-out at the hinge, so reveals and clearances can be tuned without redrilling holes.
What is the purpose of the BLUMOTION deactivation switch?
The BLUMOTION deactivation switch on this hinge is intended for small or light doors, allowing the soft-close function to be turned off where reduced damping helps the door close fully.
Why is the 7-16 inch cup depth important for this hinge?
The 7-16 inch cup depth defines how deep the hole in the door must be bored, so the hinge cup seats correctly and the overlay geometry functions as designed.
What does the screw-on style mean for mounting?
The screw-on style means this hinge is fastened with screws at the door and frame connection points, providing a secure mechanical attachment into wood components.
Selecting This Hinge For 1-2 Inch Overlay Projects
This Blum BLUMOTION cabinet hinge is identified as a 1/2 inch overlay Compact 30C face-frame hinge, so it matches cabinet runs built around that overlay dimension. The integrated CLIP connection and three dimensional cam adjustment give installers direct control of door position at the hinge. When a concealed hinge with 105 degree opening, 7-16 inch cup depth, and built-in soft-close is required, this 30C255BE8 hinge from Wurth Baer Supply offers those functions in a single concealed unit.
