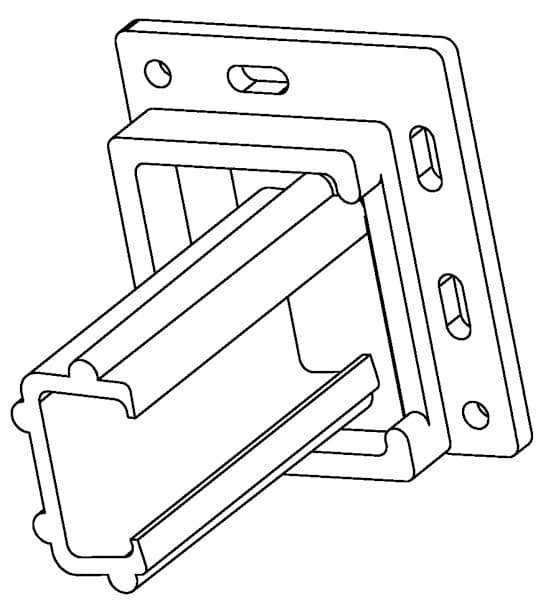

This is the left-hand adjustable rear mounting socket for KV 1282 and KV 1294 series epoxy drawer slides, providing the rear cabinet support that face-frame installations require to keep the slide level and stable at the back of the opening.
In a frameless cabinet, an epoxy slide mounts flush to the side panel from front to back with no support hardware needed. Face-frame cabinets are different: the cabinet side is set back from the face frame, leaving the rear of the slide without a solid mounting surface unless a rear socket is added. This left-hand socket fills that gap, giving the back end of the KV 1282 or 1294 slide a secure, adjustable anchor point at the cabinet rear. Without it, the slide can sag or rack under load, which makes for stiff operation and misaligned drawer fronts. If you are installing these epoxy slides into a face-frame cabinet, rear sockets on both sides are not optional hardware — they are part of a complete installation.
The socket is molded in plastic at compact dimensions — 2-1/8 inches deep, 7/8 inch tall, and 3/8 inch wide — so it tucks neatly into the cabinet rear without crowding the drawer box. Plastic keeps weight negligible and eliminates any corrosion concern in the cabinet interior. The adjustable design means you are not locked into a single fixed position: once the socket is screwed to the rear panel, the slide end seats into it and can be shifted to bring the drawer front into square. This is the left-hand version, which means it supports the left slide as you face the open cabinet.
Cabinet shops and contractors installing KV 1282 or 1294 epoxy slides in face-frame casework need this socket on every left-side run. It is also the right part for a replacement when an existing socket cracks or goes missing during a renovation tearout. Homeowners retrofitting drawers into older face-frame kitchen cabinets will find this the correct rear support piece, provided the existing slides are the matching KV series. This socket does not fit other Euro or ball-bearing slide brands — order by the slide series, not by general cabinet type.
You need two — one left-hand and one right-hand — to support both slides at the rear. This listing is the left-hand socket only; the right-hand version is a separate SKU.
No. This socket is designed for the KV 1282 and KV 1294 slide series. It is not a universal rear support and will not seat correctly on other brands or series.
No. Frameless cabinets have a continuous flat side panel that the slide mounts to from front to back, so no rear socket is required. Rear sockets are a face-frame installation requirement.
The socket uses standard wood screws through its screw-on mounting holes. Screw size is not specified in the source data — use a size appropriate for the cabinet panel material and thickness at the rear of the opening.
A drawer slide is only as reliable as its rear anchor point. This left-hand socket gives the back end of your KV 1282 or 1294 epoxy slide the stable, adjustable footing it needs in a face-frame cabinet, so the drawer runs level from first install to years of daily use.
