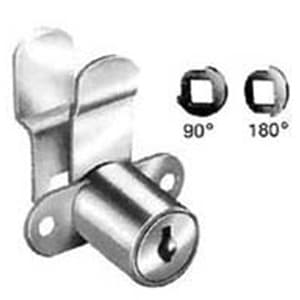

CompX National Disc Tumbler Rear Mount Cam Lock, 7/8" Cylinder with 3/4" Mounting Hole, Bright Nickel C8080-KD-14A
Description
CompX National Disc Tumbler Cam Lock For Cabinets
CompX National disc tumbler cam lock uses a disc tumbler mechanism to secure doors and drawers, giving cabinet builders and installers a compact lock that fits typical furniture and casework layouts. The rear mount design supports applications where the cam mounts behind the panel, helping maintain a clean exterior while still delivering positive locking action. A 7/8 inch cylinder length paired with a 3/4 inch mounting hole size matches common cabinet and drawer front thicknesses, simplifying layout when boring lock holes. Bright nickel finish provides a clean, neutral look that pairs well with a wide range of decorative hardware. The C8080-KD-14A designation identifies this specific keyed-different configuration, so it can be matched consistently across a project when the same security level and key pattern are required.
Cam Lock Details That Support Cabinet Work
- Disc tumbler construction provides defined keying patterns, which supports controlled access where each lock is matched to its own keying or project keying plan.
- Rear mount cam lock format lets the locking cam operate from behind the door or drawer, which is useful when the front face needs a simple key hole without exposed housing features.
- 7/8 inch cylinder length with 3/4 inch mounting hole sizing works with many cabinet and drawer fronts, reducing extra layout steps when matching standard boring practices.
- Design for doors and drawers allows the same lock type to be used across mixed casework, helping streamline hardware choices on a shop drawing or install list.
- Bright nickel finish offers a neutral metallic appearance, which supports visual coordination with other bright cabinet hinges, pulls, and latches in the same area.
Rear Mount Cam Lock Installation And Function
Rear mount design means the CompX National disc tumbler cam lock secures from the back side of the door or drawer, so installers can plan the bore and cam swing within the cabinet interior. The 3/4 inch mounting hole size sets the drill diameter needed, which helps speed repetitive boring on multiple fronts. A 7/8 inch cylinder projects through typical door and drawer thicknesses so the locking mechanism operates reliably after installation. Stop washers are provided for either 90 degree or 180 degree cam turn, allowing the installer to set quarter-turn or half-turn operation depending on the cabinet layout. Key removable in both locked and unlocked positions supports workflows where keys are taken away after locking or left nearby when the lock is open.
Using This Bright Nickel Cam Lock In Projects
Where This Rear Mount Cam Lock Fits Best
This CompX National disc tumbler rear mount cam lock is specified for doors and drawers, so it suits casework where a rotating cam can catch behind a frame or strike. The 7/8 inch cylinder with 3/4 inch mounting hole allows it to work in many cabinet fronts without special machining beyond the bore and cam clearance. Bright nickel finish lends itself to office furniture, built-ins, and shop fixtures where a clean metallic look is preferred. Two formed cams with 1-1/2 inch extension and either 3/32 inch inset or 1/4 inch offset give flexibility in how the cam reaches behind the panel, supporting different setback conditions between the lock face and the strike point. This lets the same lock body serve varied cabinet dimensions and face reveals on a single project.
Details That Help Repeatable Locking Performance
Stop washers provided for either 90 degree or 180 degree cam turn allow consistent handle feel across multiple doors and drawers by standardizing rotation angle. Being able to set 90 degree or 180 degree travel also assists with clearance planning inside cabinets that contain shelves or dividers. Key removable in both locked and unlocked positions supports routines where installers or facility staff remove keys after use or leave them in the cylinder during frequent access. Stock keying options defined as KA for all keyed alike and KD for all keyed different let planners choose between shared-key access and unique-key access, which is important for managing security levels in multi-user environments. Other key changes available from National Lock via special order give additional flexibility when projects call for distinct keying beyond standard KA or KD groupings.
Common Questions About C8080-KD-14A Cam Lock
What type of mechanism does this cam lock use?
The CompX National disc tumbler cam lock uses a disc tumbler mechanism, which provides defined keying patterns suited for cabinet and furniture security layouts.
Where is this rear mount cam lock typically used?
This rear mount cam lock is designed for doors and drawers, so it works in cabinets and casework where a rotating cam can catch behind a frame or strike point.
What mounting hole size does the C8080-KD-14A require?
The C8080-KD-14A cam lock uses a 3/4 inch mounting hole, helping installers select the correct drill size for consistent boring across multiple fronts.
How long is the cylinder on this cam lock?
The cylinder length is 7/8 inch, allowing the lock body to work with many common cabinet door and drawer front thicknesses in woodworking projects.
How far does the formed cam reach from the lock body?
The formed cams offer a 1-1/2 inch extension with either 3/32 inch inset or 1/4 inch offset, supporting different setbacks between the lock and strike area.
What keying options are available for this cam lock?
Stock keying can be KA for all keyed alike or KD for all keyed different, and other key changes are available from National Lock via special order.
Select This Cam Lock For Cabinet Security
The CompX National disc tumbler cam lock C8080-KD-14A pairs a 7/8 inch cylinder and 3/4 inch mounting hole with rear mounting to suit many cabinet doors and drawers. With bright nickel finish, selectable 90 degree or 180 degree cam rotation, and KA or KD stock keying choices, it adapts to varied woodworking and casework layouts. Choose this rear mount cam lock when a defined cam reach and clear keying options are needed across multiple furniture or fixture openings.
