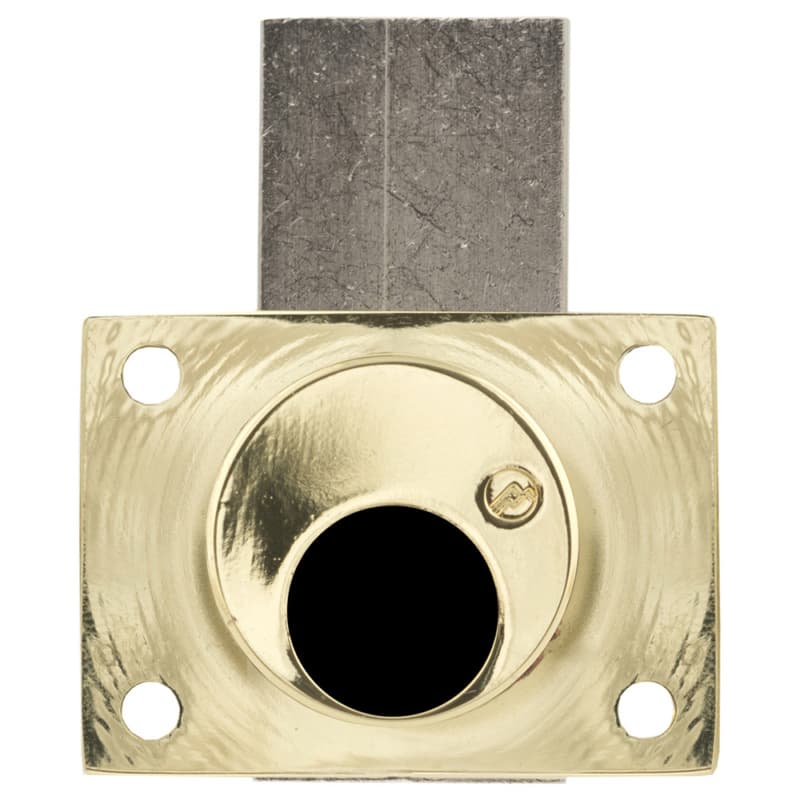

800LCM Schlage Less Deadbolt Drawers Lock Body, Bright Brass, Cylinder Length 1-3/8"

800LCM Schlage Drawers Lock Body For Secure Use

800LCM Schlage drawers lock body is a deadbolt lock body from Olympus Lock, Inc. that is designed for use on drawers, giving installers a Grade 1 performance option where keyed security is required. As a deadbolt lock in the Locks and Latches category, it provides a driven bolt action that engages the strike, which is important when a drawer needs positive locking rather than only latching. The product is identified as manufacturer part 800LCM-US3, so it can be specified and reordered precisely across projects. The bright brass US3 finish presents a traditional brass appearance, which helps match common decorative hardware on casework and millwork. The cylinder length reference of 1-3/8 inch ties this lock body to installations using Schlage style cylinders of that length, allowing planners to coordinate door or drawer construction depths with the locking hardware layout.

Key Lock Body Details That Support Drawer Work

• The lock body is easily rekeyable via a set screw cylinder release mechanism, which allows cylinders to be released and changed without replacing the lock body, supporting future keying changes on the same drawer fronts.
• The product passed ANSI/BHMA A156.11 Grade 1 performance requirements, which indicates it has been tested to a high performance standard, giving specifiers a way to align drawer security hardware with demanding commercial applications.
• The lock body is made from zinc die cast, which provides a rigid housing for the deadbolt mechanism, supporting consistent bolt travel under repeated operation in cabinet and furniture environments.
• The lock body will accept other manufacturer's Schlage compatible key-in-knob cylinders, which lets shops standardize on existing key systems while still using this lock case in new or retrofit drawer installations.
• The product is classified in the Deadbolt Locks product class, meaning it operates with a projecting bolt rather than a spring latch, which is useful where drawers must remain closed until deliberately unlocked.

Drawer Lock Body Setup And Cylinder Interface

This lock body is specified for Schlage cylinders with a 1-3/8 inch length, so drawer and panel thickness can be planned around that dimension for proper cylinder seating. The easily rekeyable set screw cylinder release mechanism holds the cylinder in the case and allows it to be released with the set screw, which simplifies lock changes when key systems are updated. The lock body will accept Schlage compatible key-in-knob cylinders from other manufacturers, so installers can match the cylinder style already used on related doors or casework. As a zinc die cast housing, the case provides a stable interface between the cylinder, driver, and tailpieces, which supports repeatable alignment between the key rotation and the deadbolt movement on the drawer.

How This Drawer Deadbolt Lock Body Works In Practice

Where The 800LCM Lock Body Is Typically Used

The 800LCM Schlage less deadbolt drawers lock body is intended for drawer applications where a deadbolt-style lock is required. Being part of the Deadbolt Locks product class, it provides a bolt action suitable for securing drawers in cabinetry or furniture runs. Its ability to accept other manufacturer's Schlage compatible key-in-knob cylinders lets it fit into key systems built around Schlage cylinder formats, so drawers can be keyed along with matching door hardware. The reference to a 1-3/8 inch cylinder length ties the lock body to installations using that cylinder size, which suits drawer fronts or panels designed to accommodate that depth from face to back. With a bright brass finish designated as US3, the lock body visually coordinates with brass tone hardware commonly specified on drawers.

Why The Rekeyable And Component Details Matter

The easily rekeyable set screw cylinder release mechanism is significant because it lets the installer remove and change cylinders while leaving the lock body installed in the drawer, reducing work when keys or keying plans change. Passing ANSI/BHMA A156.11 Grade 1 performance requirements means the lock body has been evaluated to a recognized performance benchmark, which supports its use when project documents call for Grade 1 locks on drawers. The zinc die cast construction gives a solid base for the deadbolt and driver parts, which helps the bolt extend and retract consistently so drawers lock and unlock smoothly over time. The lock body will accept Schlage compatible key-in-knob cylinders, Medeco cylinders referenced as 10-363, and Assa cylinders referenced as 10-364, allowing the same body to serve different cylinder brands in one installation program. The web description identifies a universal driver and multiple tailpieces for use with Schlage compatible, Medeco, or Assa cylinders, so the lock body can translate key rotation from these cylinder types into deadbolt motion across various drawer layouts.

Common Questions About The 800LCM Drawer Lock Body

Selecting This Lock Body For Drawer Projects

The 800LCM Schlage drawers lock body from Olympus Lock, Inc. provides a bright brass, zinc die cast deadbolt solution that passed ANSI/BHMA A156.11 Grade 1 performance requirements. Its easily rekeyable set screw cylinder release mechanism and acceptance of Schlage compatible key-in-knob cylinders, Medeco 10-363, and Assa 10-364 cylinders let it slot into established key systems. When a drawer project calls for a deadbolt-style lock body built around a 1-3/8 inch Schlage cylinder format, this 800LCM-US3 model offers a clearly defined part number and feature set for straightforward specification.
