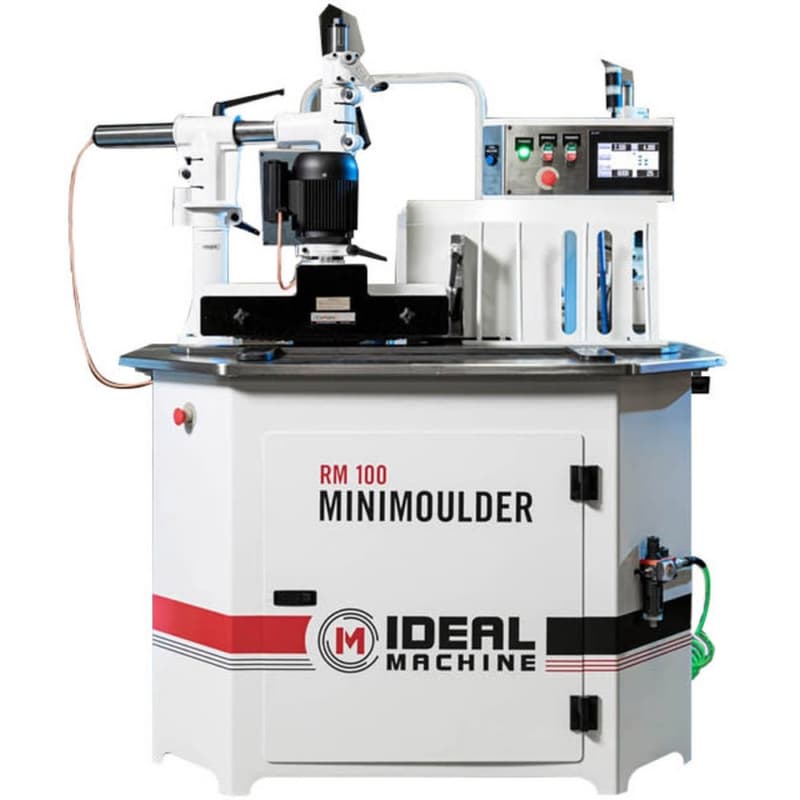

The Ideal RM100 Mini Moulder 230V, 3 Phase is a compact, high-output stile and rail machine built to deliver consistent results and reduce labor costs. Created with operator-friendly features like digital controls, customizable presets, and optional hopper feed, it’s for streamlined productivity. Whether you're running short stock or longer materials, the RM100 adapts to your workflow with speed and precision. Choose from multiple configurations to match your shop's specific needs.
Key Features & Benefits
Compact Powerhouse for High-Volume Moulding
• 8 HP spindle running at 12,000 RPM ensures fast, accurate cuts
• HSK interchangeable spindle allows for quick tool changeovers
• Compact footprint with high-output performance
Increased Throughput with Optional Hopper Feed
• Hopper feed system automates material handling for faster production
• Ideal for shorter material runs; Hiland model available for longer pieces
• Consistent, face-down feeding reduces errors and boosts precision
Operator-Friendly Controls for Faster Setups
• Touchscreen interface with up to 20 programmable "recipes"
• Digitally positioned sizing fence for repeatable adjustments
• Optional digital axial readouts for even greater precision
Flexible Configurations to Fit Your Operation
• Choose between 230V or 480V versions depending on power needs
• Manual or hydraulic HSK spindle options available
• Optional spindle upgrades up to 20 HP for heavier applications
Accurate Cutting, Fewer Defects
• Supports both climb and conventional cutting methods
• Bore diameter determined by your choice of tool holders
• Dust collection port ensures clean operation with minimal debris
- Weight: 1,350.000 lbs
- Spindle RPM: 12000 RPM
- Working Width: 1-1/2"-8-1/2"
- Motor Power: 8
- Dust Port: 4"
- Dust Collection Requirements: 1x outlet
- Min. Part Length: 5"
- Compressed Air Required: 80 PSI
- Voltage: 230 V
