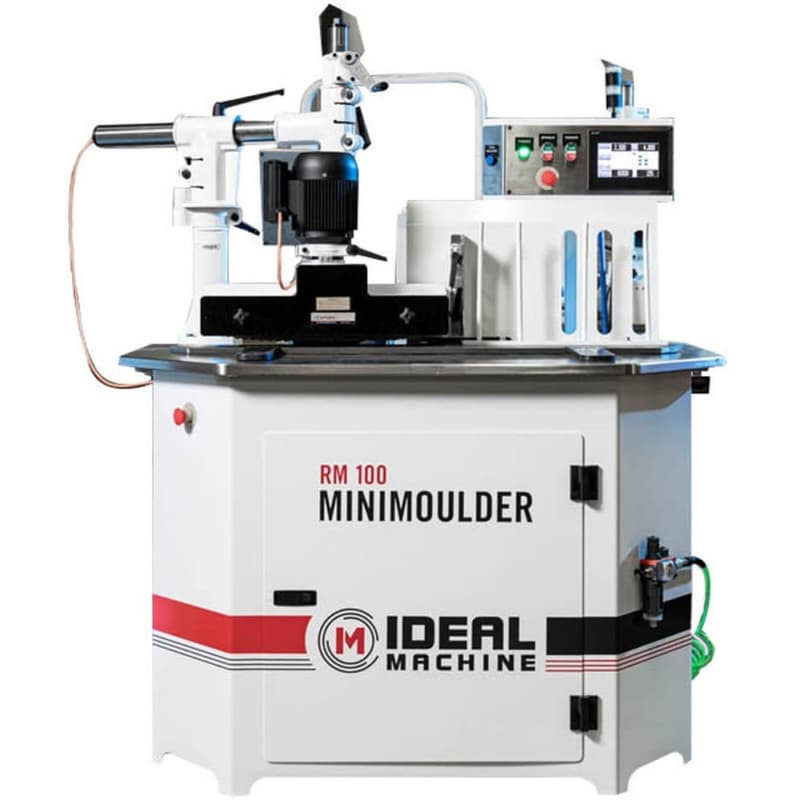

The Ideal RM100 Mini Moulder, 480 V, 3 Phase is a high-production stile and rail moulder created for shops that demand precision, speed, and consistency. Equipped with operator-friendly features like digital controls, programmable presets, and an optional hopper feed system, it delivers streamlined performance while reducing labor. This compact powerhouse is perfect for both short and long partsavailable in flexible configurations to suit your specific workflow.
Key Features & Benefits
Industrial Power for Demanding Applications
• 8 HP spindle runs at 12,000 RPM for fast, clean cuts
• 480 V power delivers added stability and industrial-grade performance
• HSK interchangeable spindle allows quick and easy tooling changes
Programmable Precision with Digital Setup
• Up to 20 preset “recipes†for repeatable configurations
• Digitally positioned sizing fence ensures accurate cuts every time
• Optional digital readouts available for axial adjustments
Flexible Feed Options for Any Material Length
• Optional hopper feed system ideal for shorter material runs
• Hiland model available without hopper for longer stock
• Face-down feed orientation provides consistent material tracking
Customizable Configurations to Match Your Shop
• Manual or hydraulic HSK spindle options available
• Scalable spindle HP up to 20 for heavier workloads
• Adjustable cutting methods: climb or conventional
Reduced Labor and Increased Throughput
• Automated feed and repeatable setups cut down on operator effort
• Designed for high-volume output with minimal manual adjustments
• Compact design maximizes floor space without sacrificing performance
- Spindle RPM: 12000 RPM
- Working Width: 1-1/2"-8-1/2"
- Motor Power: 8
- Dust Port: 4"
- Dust Collection Requirements: 1x outlet
- Min. Part Length: 5"
- Compressed Air Required: 80 PSI
- Voltage: 480 V
