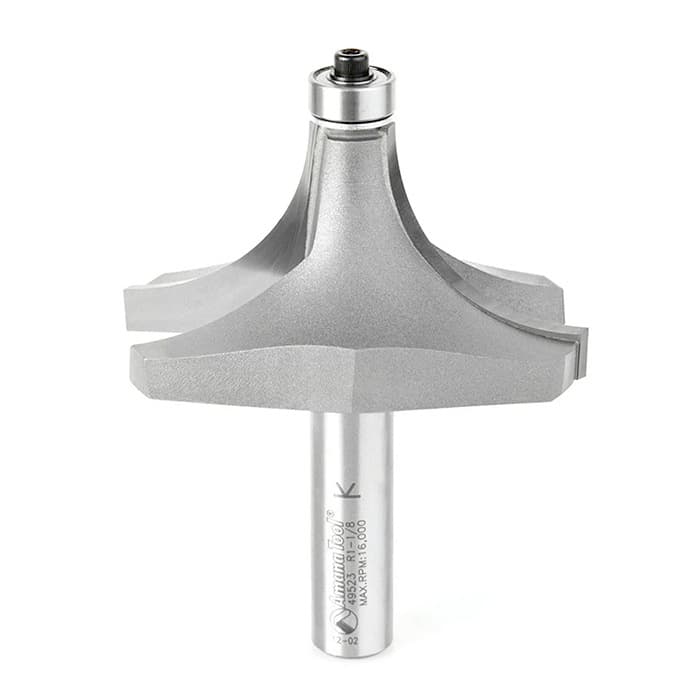

Edge Forming Corner Rounding Router Bit 1-1/8R

Edge Forming Corner Rounding Router Bit Performance

Edge Forming Corner Rounding Router Bit describes a basic edge-forming bit designed to round an edge to a given radius and cut a fillet, so you can produce consistent eased edges on workpieces that need a clean, repeatable profile. The bit is also known as a round over, rounding over, or quarter-round bit, which aligns with common shop terminology and simplifies matching it to existing profiles on finished parts. With a 1-1/8 inch radius, it establishes a substantial, smooth curve, useful when a larger, softer transition between surfaces is required. The ball bearing guide controls the cut along the edge, helping the bit follow the workpiece profile for repeatable results on similar parts. As a profiling router bit, it supports creating simple rounded edges or forming part of a more complex multi-step profile when combined with other cuts.

Key Corner Rounding Bit Details For Work

• The corner-rounding bit rounds an edge to a given radius and cuts a fillet, which allows you to ease edges or build a defined profile that visually matches other milled components.
• The cut can be used to ease edges as a simple profile or as part of a complex one, so the same bit can support both straightforward softening passes and more detailed profile-building workflows.
• The bit is also known as round over, rounding over, and quarter-round, which helps match this tool to existing shop drawings or prior jobs that specify those common edge names.
• If a smaller pilot bearing is used, a second shoulder can be produced, in effect making the bit a beading bit, giving the option to add a decorative bead using the same cutting geometry.
• The ball bearing guide works as a pilot during cutting, helping keep the bit tracking along the edge profile to maintain a consistent radius around curves and straight runs.

Installation And Fit Details For Router Setup

This router bit has a 1/2 inch shank, so it fits router collets designed for 1/2 inch shank tooling and seats with a substantial grip during setup. The overall length of 3-1/4 inches provides reach for profiling thicker stock while still allowing standard collet engagement. With a cutting height of 1-3/8 inches, the bit covers significant edge depth, supporting passes on material where a taller rounded edge and fillet are required. The stated D1 of 1/2 inch defines an additional dimensional interface on the tool, giving a reference when aligning this bit with other components or settings that rely on that measurement. The product is marked not for use in a handheld router, which directs its use toward more controlled setups rather than freehand edge work.

Using This Profiling Router Bit In The Shop

Where This Corner Rounding Router Bit Applies

This router bit is part of the profiling class, so it serves whenever a shaped edge is needed on wood or similar materials in a routed setup. The 2-3/4 inch diameter determines the sweep of the cutting circle, affecting how the radius engages the edge as stock passes the bit. The 1-1/8 inch radius shapes a broad, rounded profile, useful in applications where a softer edge transition is preferred over a sharp corner. Because the cut also forms a fillet, it can generate a defined step between the rounded portion and adjacent surfaces, supporting designs that call for a distinct visual break. When the cut is used as a simple profile, it provides a straightforward rounded edge, while in complex profiles it becomes one segment of a multi-element shape that can match existing architectural or furniture patterns.

Why These Router Bit Details Support Consistent Profiles

The ball bearing guide serves as a running reference against the workpiece, which helps the 2-3/4 inch diameter cutting edges track smoothly and keeps the 1-1/8 inch radius following contours along the edge. That guided action supports repeatable rounding and fillet formation on multiple parts in the same setup. The cutting height of 1-3/8 inches offers enough vertical engagement to process deeper edge details when required, which can reduce the need for multiple bits to cover the same profile height. With a 1/2 inch shank, the bit interfaces with robust router collets, supporting steady rotation during profiling passes. The option to use a smaller pilot bearing to create a second shoulder effectively turns the tool into a beading bit, which lets the same cutter geometry serve both rounding and bead-forming tasks in a profiling workflow. The directive that it is not for use in a handheld router points this bit toward stable mounted operations, aligning its dimensions and cutting action with controlled feed conditions.

Common Questions About This Amana Tool Router Bit

Select This Bit For Your Next Profiling Setup

The Amana Tool edge-forming corner-rounding bit with 1-1/8 inch radius pairs a 2-3/4 inch diameter cutting profile with a 1/2 inch shank, aligning with routed setups that call for a substantial rounded edge. Its 1-3/8 inch cutting height and ball bearing guide support building either simple eased edges or more complex multi-step profiles as workpieces pass the bit. The ability to act as a beading bit when used with a smaller pilot bearing broadens its role within a profiling workflow. For projects where a quarter-round or round over edge with a fillet is specified, this 49523 router bit provides the defined radius and guided cut needed to match that shape.
