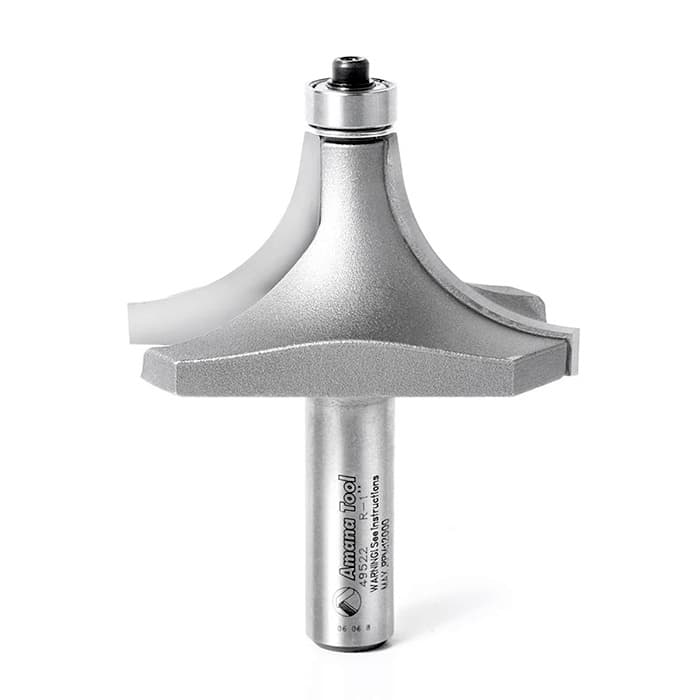

Edge Forming Corner Rounding with Ball Bearing Guide 1" Radius, 1/2" Shank

Edge Forming Corner Rounding Router Bit For Clean Profiles

Edge Forming Corner Rounding Router Bit from Amana Tool is a 1 inch radius, ball bearing guided router bit designed to round edges to a precise radius. The corner-rounding design shapes an edge to a given radius, which matters when you need consistent profiles across multiple parts. The tool is shouldered to cut a fillet, so it can form a small step at the base of the roundover that defines the profile cleanly. This bit can ease sharp edges, creating safer and more user-friendly corners on workpieces. It can also be used as a simple decorative profile or as one element in a more complex multi-step profile. With its profiling design, it works well in woodworking jobs that call for repeatable edge shaping along straight or curved stock.

Key Corner Rounding Details That Support Workflow

• The 1 inch radius (R) shapes a substantial round edge, useful when a larger, softer transition between surfaces is needed on workpieces.
• A 2-1/2 inch diameter (D) cutting profile removes more material per pass, which can speed profiling when stock and setup are appropriate.
• The 1-1/4 inch cutting height (B) provides enough vertical reach to run taller edges in a single pass where material and setup allow.
• A 1/2 inch shank (d) provides a solid mounting interface in routers designed for 1/2 inch bits, supporting stable cuts at working speeds.
• The overall length of 3-3/16 inch (L) gives sufficient projection for table-mounted routing while keeping the bit compact for control.
• Two flutes help produce a balanced cut along the profile, which supports smoother edge finishes when feed rate and RPM are coordinated.

Large Radius Router Bit Setup For Table Use

This Amana Tool router bit is designed for use in a table-mounted router, which supports the large 2-1/2 inch diameter (D) and 1 inch radius (R) during cuts. A maximum RPM rating of 18,000 sets the upper speed limit, guiding router speed selection for this tool size. The 1/2 inch shank (d) fits routers that accept 1/2 inch shank bits, giving a solid grip in the collet for edge forming. The bit is not for use in a handheld router, so it stays in stationary setups where fence and table support control the workpiece. With two flutes and a ball bearing guide, this bit follows the workpiece edge while the table and fence handle alignment.

Using This Large Radius Bit In Real Projects

Where This Corner Rounding Router Bit Performs

This Amana Tool corner-rounding bit with 1 inch radius (R) is suited to jobs where a larger, softer edge is required, such as substantial trim or thicker panels. The 2-1/2 inch diameter (D) and 1-1/4 inch cutting height (B) allow the bit to address a wide edge surface in a single pass on suitable stock. The tool is shouldered to cut a fillet, so it can create a round edge with a defined step, which is useful when matching existing profiles or building multi-part molding details. The bit can be used to ease edges for comfort, applied as a straightforward roundover profile, or used as part of a complex profile sequence where multiple bits form a custom shape. The ball bearing guide follows the workpiece edge, which helps keep the profile consistent as material moves along the router table fence.

Details That Support Repeatable Profiling Results

This router bit is described as also known as a roundover, rounding over, or quarter-round, so it matches common edge-forming terminology used in shops. When a smaller pilot bearing is used, the same cutting geometry can produce a second shoulder, effectively turning the corner-rounding profile into a beading profile, which adds flexibility in how one bit can be used across different jobs. The bit is noted as not guaranteed due to extreme diameter and radius, which highlights that the 2-1/2 inch diameter (D) and 1 inch radius (R) represent a large cutting circle compared to many bits. For best results, it is recommended to use a smaller radius bit or chamfer the material prior to using these large radius tools, so the heavy cut is reduced and the final pass with this bit focuses on refining the profile and finish. That approach prolongs tool life and supports a smoother finish across the rounded edge, especially on dense or harder materials in profiling operations.

Common Questions About This Corner Rounding Bit

Select This Router Bit For Large Radius Edges

The Amana Tool Edge Forming Corner Rounding router bit with 1 inch radius (R) and 1/2 inch shank (d) is built for table-mounted routers handling substantial edge profiles. Its 2-1/2 inch diameter (D), 1-1/4 inch cutting height (B), and ball bearing guide support consistent profiling along workpiece edges. For projects calling for eased or decorative edges using a large radius, this bit provides the geometry to form either a simple roundover or a filleted profile, with the option to create beading when paired with a smaller pilot bearing.
