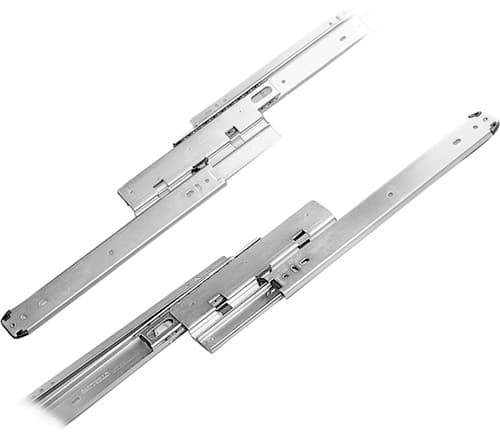

Pro Value Series 20" Over Travel Hold-In Ball Bearing Drawer Slides PRO 5000 Series, Unhanded Side Mount Zinc - 5000-20-ZPOT

Pro Value Over Travel Drawer Slides For Files

Pro Value Series 20 inch over travel drawer slides use a heavy duty extension with progressive movement, so drawers open fully past the cabinet and move in a controlled sequence that feels smooth on every cycle. The ball bearing design creates very quiet and smooth function, which keeps file drawers and box drawers moving cleanly when loaded and reduces friction at the slide members. Side mount construction with a 1/2 inch side clearance gives a straightforward fit into standard casework layouts, simplifying layout for cabinets built around that clearance. A 3.79 inch slide height sets a consistent reference for drawer side design, which supports repeatable construction across multiple cabinets. At 20 inch length, the slide matches common file and storage drawer depths, helping installations align with standard cabinet carcass dimensions.

Key Drawer Slide Details For Daily Use

• The heavy duty extension with progressive movement controls how each slide member engages, which helps drawers open fully while spreading the load through the travel for stable motion.
• Very quiet and smooth function means the ball bearing action reduces noise and vibration, which is useful in office or residential installations where drawers cycle frequently.
• Side clearance of 1/2 inch defines the gap between drawer and cabinet, which simplifies drawer box sizing when laying out multiple banks using the same slide.
• A 3.79 inch height gives a taller slide profile, which helps support file or lateral drawers that need more vertical bearing area along the cabinet side.
• The 20 inch length fits many standard base and file cabinet depths, which helps match slide travel to drawer box depth without overbuilding the cabinet.
• The available bright zinc chromate finish provides a protective metal coating, which supports long term performance of the slide members in typical indoor cabinet environments.

Mounting, Fastener, And Fit Details

These PRO 5000 Series side mount drawer slides are designed as side mount units, so the slide members fasten directly to cabinet sides and drawer sides for a simple, linear fit. A side clearance of 1/2 inch defines the working space between drawer and cabinet, which guides drawer box width on new builds or retrofits. The manufacturer specifies recommended fasteners of #8 x 7/16 inch Phillips pan head (WW46000), which match the scale of the slide holes and help seat the members tightly along wood cabinet sides. The 20 inch nominal length coordinates with cabinet depths where full extension plus over travel is required, so drawers can clear countertop edges or face frames more easily during use.

Using PRO 5000 Slides In Real Installations

Where These PRO 5000 Slides Work Best

The product is described as a 150LB over travel file slide 20 inch, indicating it is built for file drawer duty where drawers may be heavily loaded and still need to open beyond the cabinet front. Heavy duty extension with progressive movement supports both box drawer and lateral drawer applications, so the same PRO 5000 slide style can be used across standard storage and wide lateral drawers for a consistent feel. The web description states the product can be used in lateral applications up to 30 inches in width, which lets installers apply this slide to wider file cabinets while staying within the intended design envelope. Side mount configuration aligns with common cabinet construction methods, so these slides integrate into frameless or face frame cabinetry that is already set up for side mounted ball bearing slides. The very quiet and smooth function suits office file banks and residential storage where frequent drawer cycles benefit from controlled movement.

Details That Support Accurate Fit And Workflow

The drawer rail disconnects from the slide with a quick release clip, which lets installers separate the drawer member from the cabinet member to mount each piece more easily and then re-engage the rail after installation. The description notes handed slide members with unhanded rails, so left and right slide bodies are oriented while the drawer rails themselves do not require separate left and right parts, which simplifies handling and reduces part sorting at the bench. A 3.79 inch height provides a predictable reference for drilling and mounting patterns along the cabinet side, which helps align multiple slides vertically when stacking drawers. The 32 mm pattern is listed as present, tying the mounting to a common 32 mm system layout and allowing integration with cabinet sides drilled on that standard. Side clearance of 1/2 inch and a 20 inch length give fixed design points for drawer box sizing and setback, which supports repeatable casework runs using the same part number 5000-20-ZPOT.

Common Questions About PRO 5000 File Slides

Select PRO 5000 Slides For File Drawer Runs

The Pro Value Series 20 inch over travel drawer slides combine heavy duty extension, progressive movement, and very quiet and smooth function, giving file and lateral drawers controlled travel in daily use. Side mount layout with 1/2 inch side clearance, 3.79 inch height, and a 20 inch length provides fixed design points for cabinet and drawer sizing. The quick release drawer rail and 32 mm pattern support efficient installation, while the bright zinc chromate finish suits typical indoor cabinet environments. For projects calling for a 150LB over travel file slide 20 inch with these characteristics, this PRO 5000 Series 5000-20-ZPOT model aligns with that need.
