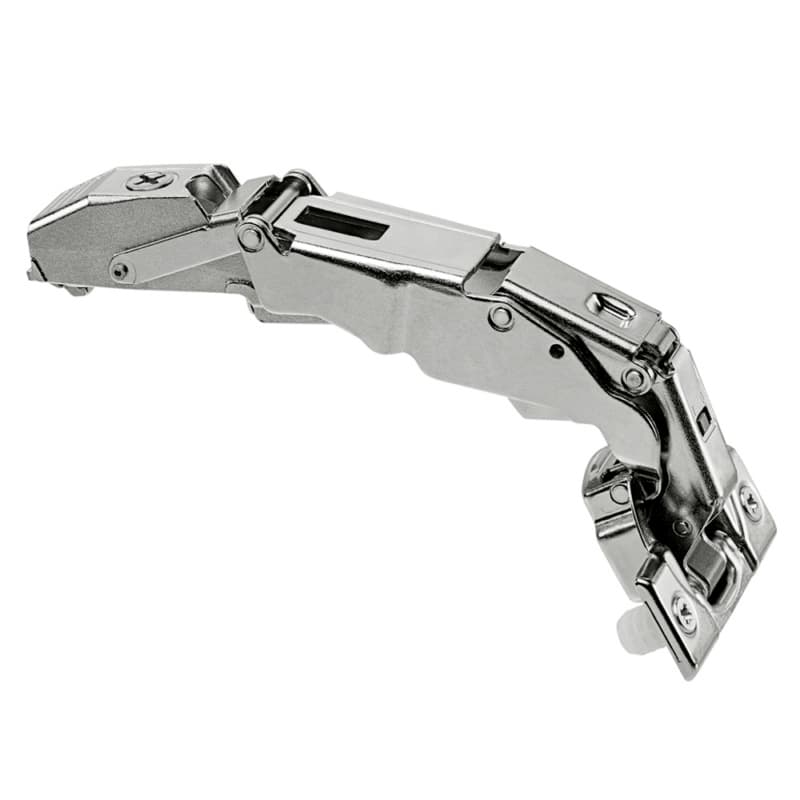

This Blum CLIP top BLUMOTION hinge opens full overlay doors to 155 degrees on frameless and face-frame cabinets, with a zero-protrusion arm that stays inside the cabinet line and soft-close built in. Dowel mounting seats the cup in the door without screws for a clean, production-ready install.
A 155-degree swing is the widest opening available with integrated soft-close in the Blum CLIP top line, and the zero-protrusion arm is what makes that angle practical inside a cabinet. When the door opens past 90 degrees the arm folds back flush with the interior wall, so a pantry loaded to the edge, a tall cabinet running to the ceiling, or a wall unit placed in a corner stays accessible without the hinge arm creating an obstruction. The 35mm cup bores into the door at 13mm depth, and the arm clips to a separate Blum base plate on the cabinet, ordered separately to match your cabinet construction. Use Blum plates only; the arm-to-plate clip engagement is Blum-specific.
The hinge is plated steel in a nickel finish, suited to cabinetry where exposed hardware coordinates with other nickel-finished pulls or slides. The dowel-mount cup carries pre-attached dowels that press into the door's bored dowel holes, eliminating the cup-screw step that slows production lines. BLUMOTION is integrated into the arm, so the damped close works from day one without an add-on. Three-way adjustment, plus or minus 2mm on height and side and plus 3mm or minus 2mm in depth, brings doors to an even reveal after the box is set.
This hinge works on frameless and face-frame cabinets with standard doors in the 16 to 22mm thickness range. It suits cabinet shops running CNC equipment with a dowel-boring station, production builders who want to eliminate cup screws from the door-prep step, and designers specifying wide-access cabinetry in tight rooms where a door that opens past 90 degrees is not a luxury but a requirement. For doors in a standard swing with no clearance concern, the 110-degree version covers most everyday installs. For the widest swing without soft-close, note that soft-close is not offered at 170 degrees; 155 degrees is the practical ceiling for a damped close in this line.
No. Zero protrusion describes the arm position when the door is open: the arm folds flush with the cabinet interior rather than jutting inward. When the door is closed the hinge is fully concealed as with any CLIP top hinge.
No. The hinge clips to a Blum base plate that mounts to the cabinet, and that plate is sold separately. Choose a plate matched to your cabinet type, whether frameless or face-frame, and the overlay position you need.
A dowel-mount cup has pre-attached dowels that press into bored holes in the door, so no screws are needed to fasten the cup. The screw-on version uses wood screws through the cup flanges. Dowel mounting is faster on a CNC-prepared door and is the standard for production shops with a line-bore or point-to-point machine.
155 degrees is the maximum opening angle for this hinge. It is also the widest angle at which BLUMOTION soft-close is available in the CLIP top line; a 170-degree wide-angle hinge does not include soft-close.
When the cabinet placement demands a door that swings wide and the finish line calls for coordinated nickel hardware, this hinge delivers all three: 155 degrees of access, a damped close that protects the fit, and a zero-protrusion arm that keeps the interior clear.
