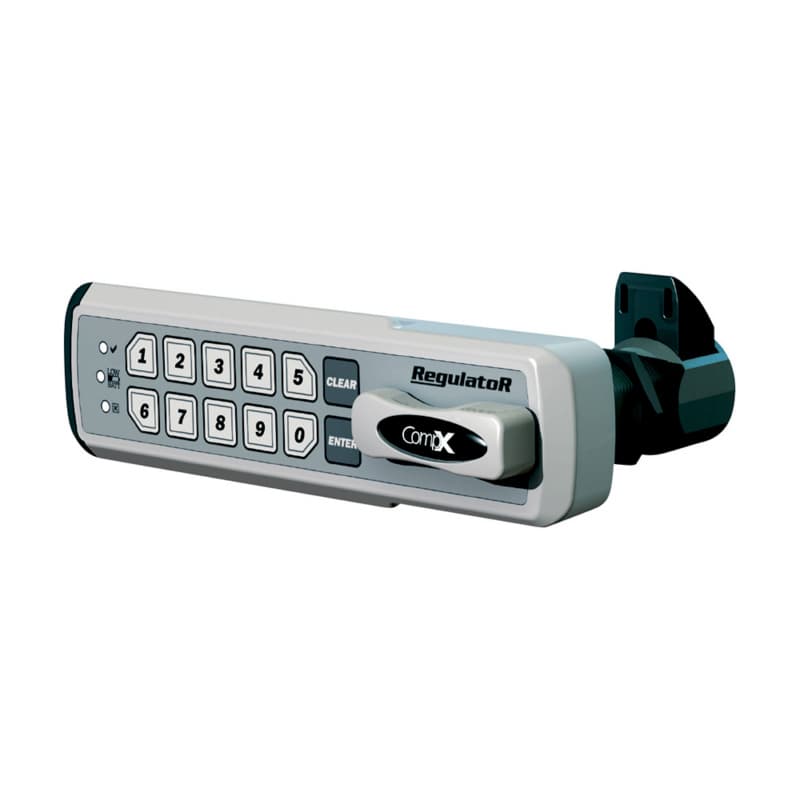

CompX National Electronic Push Button Cabinet Lock, 1-7/16" Maximum Material Thickness with Horizontal Left Hand Position - REG-S-L-5
Description
CompX National Electronic Push Button Cabinet Lock Use
CompX National electronic push button cabinet lock gives cabinets, drawers, lockers, and similar enclosures a keyless way to secure doors and drawers, which streamlines access control when users just need a simple code instead of physical keys. The CompX RegulatoR design uses an electronic push button interface, so users enter a code directly at the lock, which supports shared or repeated access without key management. A self-locking version with Slamcam uses a spring-loaded latching mechanism that lets the user push the door or drawer closed, which removes the extra step of returning a knob to the locked position after every use. The 1-3/4 inch cylinder length lets the lock reach through thicker door or drawer fronts, which helps when working with cabinet construction that exceeds lighter-duty material thicknesses.
Key Features That Support Daily Lock Operation
- The self-locking CompX RegulatoR design uses Slamcam spring-loaded latching, which lets the user push the door or drawer closed so the lock re-engages without extra steps, supporting faster use in busy environments.
- A horizontal left hand mount layout is designed so the hinge location on the left side of the door matches the left hand RegulatoR, which helps installers select handed hardware that aligns with existing cabinet construction.
- Support for up to 20 codes per lock allows multiple user or management codes on one device, which helps installers configure access for different users or groups on the same cabinet or locker.
- An expected battery life of 75,000 cycles on AAA batteries supports long service between battery changes, which reduces maintenance visits and keeps the lock operating over many openings and closings.
- A low battery indicator and easily accessible AAA battery compartment on the outside of the cabinet simplify battery changes, which lets users replace batteries without disassembling cabinet components.
- A 3/4 inch diameter mounting hole requirement gives a clear drilling size, which helps installers prepare accurate bores for the cylinder during cabinet or drawer fabrication.
Horizontal Left Hand Mount And Fit Details
The horizontal left hand mount configuration on this CompX RegulatoR matches doors where the hinges sit on the left when facing the door, which ties the lock handing directly to the existing hinge layout. That specific left hand mount orientation helps installers pick the correct lock for each opening, reducing rework from reversed handing on cabinet doors. A maximum material thickness of 1-7/16 inch guides where this lock can be used, which keeps the cylinder length and hardware working properly with typical cabinet and drawer front build-ups. The 1-3/4 inch cylinder length further supports reach through thicker fronts, which gives flexibility when fitting the lock into a range of woodworking constructions or laminated assemblies.
How This Electronic Cabinet Lock Works In Use
Where The CompX RegulatoR Lock Is Applied
The CompX RegulatoR electronic push button cabinet lock is intended for cabinet doors, drawers, lockers, and other similar enclosures, which gives installers one platform to secure a mix of storage points across a project. Using a keyless push button interface lets users operate the lock by entering codes, which suits applications where codes can be shared, updated, or managed without cutting new keys. The satin nickel finish on the left hand RegulatoR presents a neutral metallic appearance, which helps the lock blend into many cabinet and locker styles in commercial or residential settings. Placement on doors with hinges on the left aligns with the left hand mount description, which lets installers match hinge side and lock handing logically across a run of cabinets.
Details That Support Repeatable Lock Installation
The 3/4 inch diameter mounting hole requirement on this CompX National lock provides a clear drill size, which supports consistent bores that fit the cylinder without trial-and-error on site. A maximum material thickness of 1-7/16 inch defines how thick the cabinet or drawer front can be, which helps installers design or choose door constructions that allow the cylinder to seat and operate properly. The 1-3/4 inch cylinder length gives added reach beyond the maximum thickness, which helps capture hardware on the back side of thicker fronts and maintain secure engagement. Support for 20 codes per lock lets installers program multiple user and supervisory codes, which aids in setting up organized access for staff, tenants, or family members. The self-locking Slamcam feature uses a spring-loaded latching mechanism that re-engages when the door or drawer is pushed shut, which minimizes user steps and helps keep openings secured without relying on users to reset a knob. Battery life rated at 75,000 cycles with AAA batteries supports long-term operation, which reduces the frequency of battery replacement across multiple locks in a facility. A low battery indicator alerts users as power declines, which provides time to change batteries before operation is interrupted. The external AAA battery compartment location means batteries are reachable from outside the cabinet, which allows battery changes without pulling apart cabinet components or disturbing stored contents.
Common Questions About This CompX Cabinet Lock
What type of enclosures can this CompX RegulatoR lock secure?
The CompX RegulatoR electronic push button cabinet lock is designed for cabinet doors and drawers, lockers, and other similar enclosures, which lets one lock style serve multiple storage locations.
How is the horizontal left hand mount orientation determined?
The horizontal left hand mount orientation is based on hinges located on the left when facing the door, which guides installers to match the lock handing to the hinge side.
What material thickness can this CompX National lock handle?
This CompX National electronic push button cabinet lock is rated for a maximum material thickness of 1-7/16 inch, which fits many cabinet and drawer front constructions.
How many user codes can be programmed into the lock?
The CompX RegulatoR supports 20 codes per lock, which allows different users or roles to have distinct codes on the same cabinet or locker.
What drilling is required to mount this cabinet lock?
This electronic push button cabinet lock uses a 3/4 inch diameter mounting hole, which gives a straightforward drilling dimension for fabrication and retrofit work.
How does the self-locking Slamcam function affect daily use?
The self-locking Slamcam feature uses a spring-loaded latching mechanism so users can push the door or drawer closed and have it secure without resetting a knob.
Selecting This Lock For Left Hand Cabinet Installs
The CompX National electronic push button cabinet lock REG-S-L-5 combines a left hand horizontal mount, self-locking Slamcam action, and 1-3/4 inch cylinder length, which suits cabinet doors, drawers, lockers, and similar enclosures built with thicker fronts. With a maximum material thickness of 1-7/16 inch, 3/4 inch mounting hole requirement, and capacity for 20 codes per lock, this CompX RegulatoR supports both precise installation and flexible user access. For projects calling for a satin nickel keyless solution on left hinged doors, this electronic push button cabinet lock offers a defined handed configuration and straightforward mounting details.
