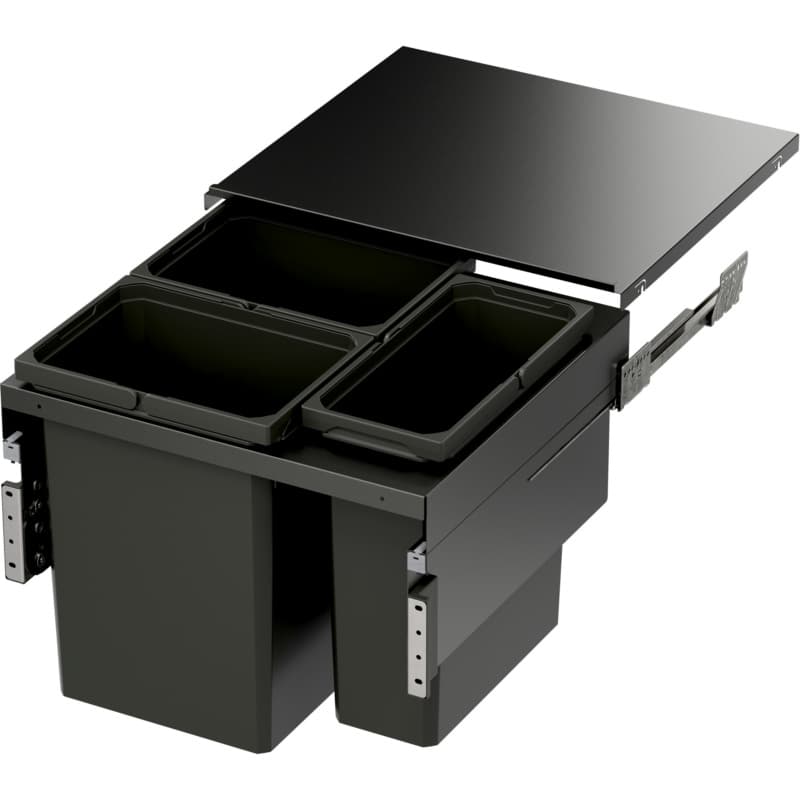

Vauth-Sagel VS ENVI 22-1/2" 3-31 Quart Top-Mount Waste Pullout with Carbon Steel Grey Bins and Soft-Close Slides, 90008898

Vauth-Sagel Top-Mount Waste Pullout For High-Capacity Frameless Cabinets

This Vauth-Sagel VS ENVI Space pullout mounts a three-bin waste system from the top of the carriage inside a frameless base cabinet, putting 93 quarts of sorted waste capacity behind a single door on full-extension, soft-close slides.

Key Features

• Three 31-quart grey bins deliver a combined 93 quarts of capacity for trash, recycling, and compost in one cabinet run.
• Top-mount design suspends the bins from an upper frame rather than resting them on the cabinet floor, keeping the floor clear and the bins easy to lift out.
• Full-extension soft-close slides bring all three bins fully into reach and ease the carriage back in without slamming.
• Door-mount compatible so the pullout travels with the cabinet door when opened.
• Frameless-cabinet fit with a minimum opening width of 22-1/2 inches, minimum depth of 20-5/16 inches, and minimum height of 20-1/2 inches.

Sorting Three Waste Streams From One Cabinet

Three bins side by side is what separates this pullout from single- or double-bin units. A household managing trash, recycling, and compost simultaneously can assign one bin to each stream without splitting the job across two cabinets. The top-mount suspension holds all three bins from the upper frame, so they lift straight out for emptying and drop back in cleanly. Full extension means the bins at the rear travel all the way to the front of the cabinet opening, so nothing is reached around to access.

Carriage, Bins, and Motion Hardware

The bins are grey, sized at 31 quarts each, and are part of the Vauth-Sagel ENVI Space XX series. The carriage measures 22-1/2 inches wide, 20-5/16 inches deep, and 18-29/32 inches tall. Soft-close slides control the return trip so a loaded, heavy carriage comes back in under damped resistance rather than rolling free and slamming the door. Door-mount hardware connects the carriage to the door panel so both move together, though the mounting brackets and any door-mount hardware should be confirmed for inclusion against the specific kit contents at order.

Where This Unit Fits Best

This is the right pullout for a kitchen remodel or custom cabinet installation where frameless construction is specified and a high-volume waste center is part of the design. Cabinet shops building frameless kitchens will find the opening dimensions fit a standard 24-inch frameless base. Designers specifying waste management for a household that sorts compost, recycling, and trash can size this as a purpose-built three-stream station. It is not sized for face-frame cabinetry, so confirm frameless construction before ordering.

Common Questions

Three Streams, One Cabinet, Full Control

Specify this pullout when a frameless kitchen needs a dedicated, high-capacity waste center that handles trash, recycling, and compost together on smooth, damped slides behind a single door.
