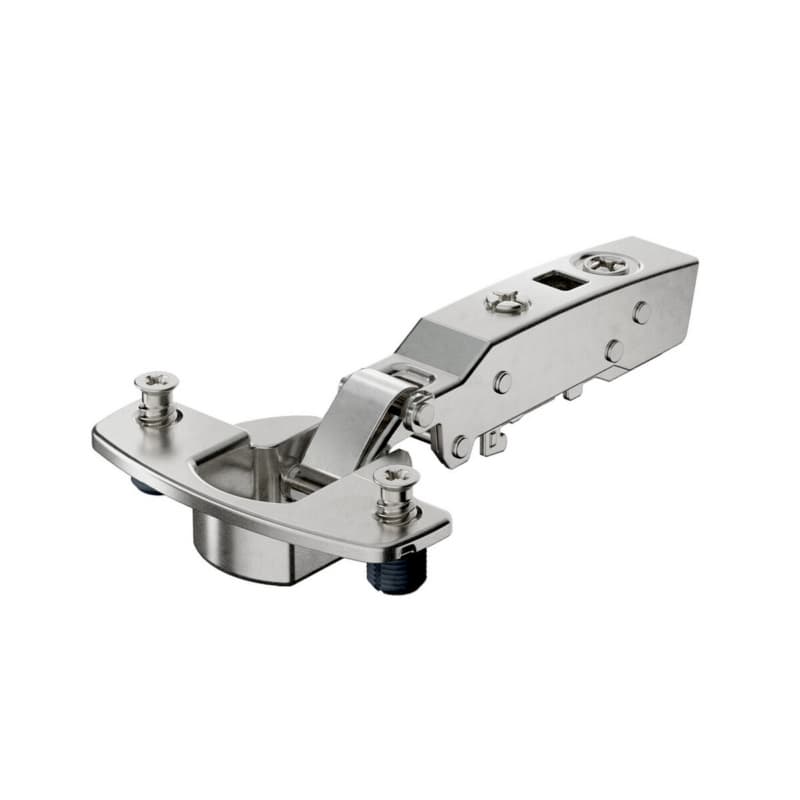

Sensys thick door hinge is a concealed cabinet hinge designed for thick doors in both face frame and frameless cabinets, so it handles applications where standard hinges do not fit. The hinge is specified for door thickness from 15 to 32 mm, which covers a wide range of thicker fronts used in modern cabinetry. An opening angle of 95 degrees gives access inside the cabinet while helping control door swing in tighter layouts. The integrated Silent System provides soft-close action, so the door is gently pulled shut instead of slamming. A self-closing feature in the Sensys 8631i mechanism brings the door from the last part of travel into the fully closed position. Nickel plated steel construction offers a hard-wearing hinge body with a clean, neutral finish that matches common cabinet hardware lines.
The hinge uses a drilling pattern of TB 45 x 9.5 mm, so the cup holes can be bored accurately using that center pattern for repeatable layouts. A cup depth of 12.8 mm defines how deep the hole in the door needs to be, which is important for thick door designs that still must retain enough material behind the cup. Installation uses expanding sockets, so the dowel-style fittings lock into the door boreholes for a secure press-in style mounting. Integrated overlay adjustment of plus 2 mm to minus 2 mm shifts the door sideways on the cabinet, which helps align reveals along a run of doors. Integrated depth adjustment of plus 3 mm to minus 2 mm moves the door in and out relative to the cabinet front, so the door can be tuned to sit flush. Height adjustment is provided at the mounting plate, giving vertical fine-tuning along the cabinet side.
This Hettich Sensys soft-close hinge is specified as a thick door hinge for door thickness from 15 to 32 mm, so it suits heavier or thicker fronts often used in high-end or modern cabinet designs. The hinge is described as a full overlay option for face frame and frameless cabinets, which makes it appropriate where the door needs to cover most or all of the cabinet front. Because it is a concealed European long arm hinge, it mounts inside the cabinet and hides the mechanism behind the door, which helps produce a clean exterior look on both kitchen and shop cabinetry. The opening angle of 95 degrees supports cabinet layouts where moderate door swing is preferred, such as tight galley spaces or installations near corners. Nickel plated steel construction gives a robust metal hinge body with a neutral metallic tone, which coordinates with many cabinet interiors. The hinge functions as part of a concealed cabinet hinge system in the European thick door hinge category, aligning with projects that use this construction style throughout a run of cabinets.
The integrated Silent System in this Sensys 8631i hinge provides soft-close performance, so as the door approaches the frame it is slowed down and drawn shut, supporting quiet operation in busy work areas. The built-in self-closing feature takes over in the final closing range, which helps bring the door reliably to the fully closed position without needing a strong push. Integrated overlay adjustment from plus 2 mm to minus 2 mm lets the installer shift the door side to side on the cabinet, which is useful for aligning gaps between multiple doors. Integrated depth adjustment from plus 3 mm to minus 2 mm allows the door to be moved toward or away from the cabinet front, helping the fronts line up flush across a bank of cabinets. Height adjustment is handled at the mounting plate, so the vertical position of the door can be fine-tuned without re-drilling, an advantage when working across long cabinet runs. The TB 45 x 9.5 mm drilling pattern and 12.8 mm cup depth define the cutting setup, enabling consistent boring on door after door.
This Sensys thick door hinge is specified for door thickness from 15 to 32 mm, so it covers many thicker cabinet fronts used in modern or heavy cabinet construction.
The hinge has a 95 degree opening angle, which provides good access to the cabinet interior while keeping the swing more controlled in tighter installations.
The Sensys thick door hinge has an integrated Silent System and a self-closing feature in the Sensys 8631i mechanism, so the door is cushioned and pulled closed at the end of travel.
The hinge uses expanding sockets for installation and a TB 45 x 9.5 mm drilling pattern with a cup depth of 12.8 mm, guiding boring and mounting setup on the door.
The hinge offers overlay adjustment of plus 2 mm to minus 2 mm and depth adjustment of plus 3 mm to minus 2 mm, while height is adjusted at the mounting plate for fine alignment.
The EN 15570 Level 2 classification places this hinge in a defined performance class for European hinges, indicating it is tested for repeated opening and closing in standard cabinet use.
This Hettich Sensys soft-close thick door hinge pairs a 15 to 32 mm door thickness range with full overlay, face frame, and frameless applications, so it fits a wide range of cabinet runs. The 95 degree opening angle, TB 45 x 9.5 mm drilling pattern, and 12.8 mm cup depth provide clear parameters for layout and machining. With integrated Silent System, self-closing action, and three-way adjustment, the hinge supports clean door alignment and controlled closing on concealed European-style cabinets.
Sold In: 1 Each
