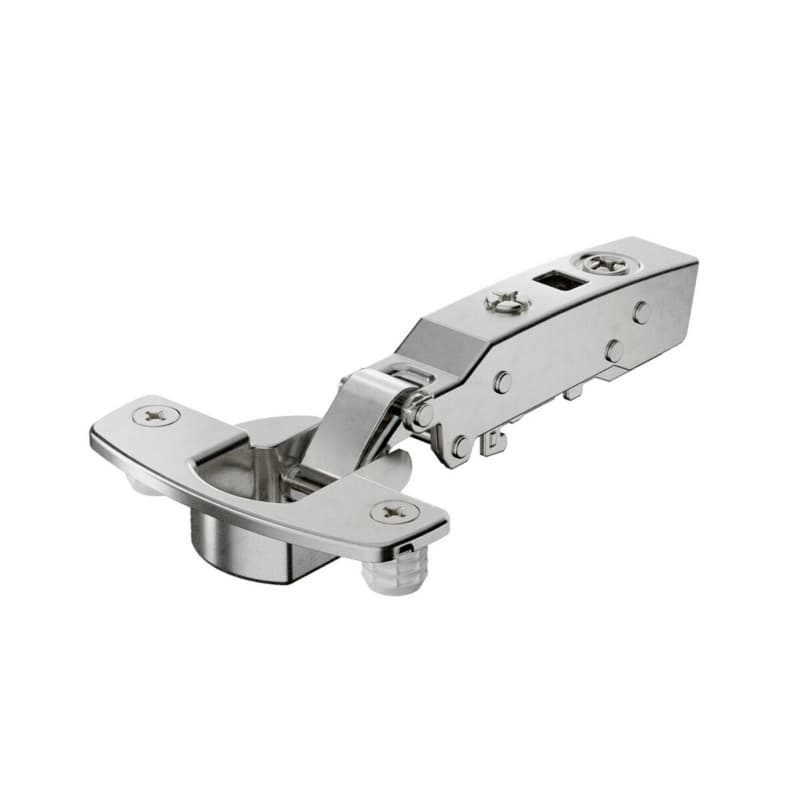

Hettich Sensys Thick Door Hinge For Cabinets
Hettich Sensys thick door hinge is a concealed cabinet hinge designed as a full overlay solution for face-frame and frameless cabinets, so it supports clean front lines while keeping the hardware out of sight. The hinge is specified for door thickness from 15-32mm, which covers a wide range of standard and thick cabinet doors used in shops and on site. A cup depth of 12.8mm lets the hinge sit securely in the door while maintaining material around the cup, which matters on heavier or thicker fronts. The hinge opens to 95 degrees, giving enough access to cabinet interiors while controlling how far the door swings in tight runs. The nickel finish provides a clean, uniform appearance that blends with other modern cabinet hardware in the same work area.
Key Sensys Hinge Details That Support Cabinet Work
- The built-in Silent System delivers soft-close action, so doors are pulled in gently and consistently, which helps protect fronts and reduces slamming noise in busy kitchens and workspaces.
- The hinge is specified as a full overlay type for face-frame and frameless cabinets, so it supports layouts where the door covers the cabinet side or frame, helping achieve a continuous facade.
- The 15-32mm door thickness range covers standard and thick doors, so one hinge type can be used across different cabinet lines where material thickness varies from job to job.
- The 12.8mm cup depth is defined for the hinge, giving installers a clear drilling depth that helps keep the cup secure while retaining strength in the door panel.
- The hinge carries a quality classification under EN 15570, Level 2, so it has been tested to a defined European standard that supports repeatable performance expectations on cabinet projects.
Adjustment And Fit For Sensys 95 Degree Hinge
This Sensys hinge provides integrated overlay adjustment of plus 2mm to minus 2mm, so the installed door position can be shifted laterally on the cabinet to tighten reveals or straighten lines. Integrated depth adjustment of plus 3mm to minus 2mm lets the door move in and out relative to the cabinet front, which helps align the front plane across multiple doors. Height adjustment is handled at the mounting plate, so vertical gaps can be tuned without re-drilling the hinge cup. Together, these adjustments give fitters the fine control needed to dial in consistent reveals on full overlay installations using the 95 degree nickel hinge.
Using The Sensys 95 Degree Thick Door Hinge In Practice
Where This Hettich Sensys Hinge Is Applied
This Hettich America Corporation Sensys hinge is part of the European concealed long arm hinge family, specified here for thick door applications in both face-frame and frameless cabinets. The full overlay design supports cabinet runs where the door is intended to cover the frame or case side, which is common in contemporary kitchens, bath vanities, and commercial casework. With its 15-32mm door thickness range, the hinge suits thicker doors often used with premium materials or applied panels, while still handling standard-thickness fronts. The 95 degree opening angle provides practical access inside the cabinet without demanding excessive clearance, which can be important when fitting doors near walls, appliances, or adjacent cabinets. As a concealed cabinet hinge, it sits inside the cabinet geometry, supporting a clean, hardware-free exterior presentation on finished installations.
Why Adjustment And Silent System Matter On This Hinge
The integrated Silent System on this Sensys hinge controls closing speed so the door is caught and closed quietly, which helps reduce wear at the cabinet front and frame over time and improves user comfort in high-use spaces. Overlay adjustment from plus 2mm to minus 2mm allows the installer to shift the door sideways after mounting, which is valuable when cabinet cases are slightly out of square or when aligning multiple doors in a run. Depth adjustment from plus 3mm to minus 2mm lets the front be brought forward or set back, helping create a continuous plane across neighboring doors and drawer fronts. Height adjustment at the mounting plate offers vertical tuning, so the door-to-door and door-to-drawer gaps can be matched without altering the door cup position. The EN 15570 Level 2 quality classification indicates that the hinge has been assessed against a recognized performance standard, supporting consistent behavior across repeated openings and closings in everyday cabinet use.
Common Questions About The Sensys 95 Degree Hinge
What type of cabinet construction does this hinge support?
The hinge is specified for full overlay face-frame and frameless cabinets, so it works on both framed cases and panel-style boxes that use overlay doors.
What door thickness range can this Sensys hinge handle?
The hinge is rated for door thickness from 15-32mm, covering many standard and thick cabinet doors used in residential and commercial projects.
How far does the Hettich Sensys 95 degree hinge open?
The hinge is designed with a 95 degree opening angle, allowing access to the cabinet interior while managing door sweep near adjacent surfaces.
What soft-close feature is built into this hinge?
The hinge uses the Hettich Silent System, which provides integrated soft-close action so doors are pulled in smoothly and quietly at the end of travel.
How can the door position be adjusted after installation?
The hinge offers integrated overlay adjustment of plus 2mm to minus 2mm and depth adjustment of plus 3mm to minus 2mm, with height adjustment handled at the mounting plate.
What does the EN 15570 Level 2 classification indicate?
The EN 15570 Level 2 classification identifies that the hinge meets a defined European standard for quality, supporting predictable performance in cabinet applications.
Selecting This Sensys Hinge For Thick Overlay Doors
The Hettich Sensys thick door hinge, manufacturer part 9091431, combines full overlay geometry with soft-close Silent System and defined adjustment ranges, which helps fitters deliver even reveals and quiet operation on 15-32mm cabinet doors. The 95 degree opening angle and 12.8mm cup depth tie the hinge to common cabinet layouts, so it suits many overlay projects using face-frame or frameless construction. For cabinet shops and installers working with European concealed thick door hinges, this nickel Sensys model aligns performance, adjustment, and appearance for repeatable cabinet results.
