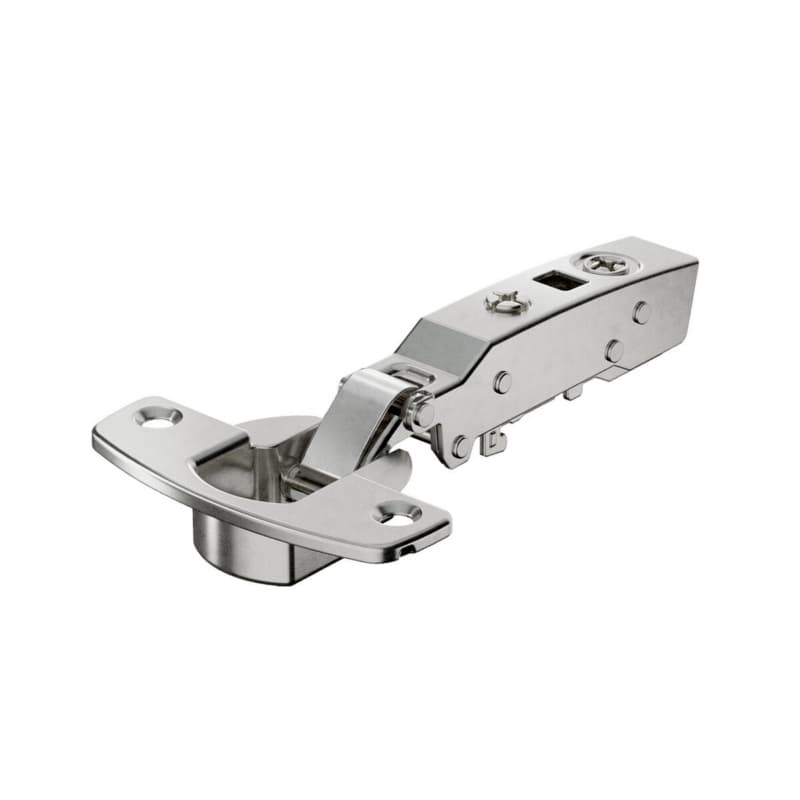

Sensys Thick Door Hinge 9091430 For Cabinets

Sensys thick door hinge 9091430 is a Hettich concealed cabinet hinge designed as a full overlay hinge for face-frame and frameless cabinets, so it supports modern concealed layouts while handling thicker doors in one hinge family. The hinge is specified for door thickness from 15 mm to 32 mm, which lets you hang standard doors and substantial thick doors on the same Sensys platform without changing the hinge model. A cup depth of 12.8 mm lets the hinge sit in a precise mortise, which helps keep drilling consistent across doors. The hinge opens to 95 degrees, giving access for everyday cabinet use while controlling how far the door projects into adjacent spaces. The nickel finish identifies the hinge as a typical cabinet hardware finish, which helps it match other nickel-finished components visually in a run of cabinets.

Key Sensys Hinge Details That Support Use

• The integrated Silent System soft-close function slows the door at the end of travel, which helps doors close quietly and with controlled movement in daily use.
• Door thickness capacity from 15 mm to 32 mm lets the hinge support a range of cabinet door constructions, which simplifies hinge selection across different projects.
• The full overlay configuration for face-frame cabinets lets the door cover the frame edge, which supports clean front views on face-frame runs.
• Suitability for frameless thick doors means the same hinge type can be used on frameless cabinets with thicker doors, which can streamline hardware choices across cabinet lines.
• Quality classification under EN 15570, Level 2 identifies the hinge as tested to a defined European standard, which gives installers a reference point for performance expectations.

Mounting And Adjustment For Cabinet Fit

This Sensys 95 degree overlay hinge uses a screw-on mounting method, so the hinge fastens to the cabinet and door with screws for a secure mechanical connection. Integrated overlay adjustment of plus 2 mm and minus 2 mm lets you shift the door horizontally relative to the cabinet front, which helps align reveals between adjacent doors after mounting. Integrated depth adjustment of plus 3 mm and minus 2 mm moves the door in and out relative to the cabinet side, which helps fine-tune the gap at the cabinet front and improve alignment with surrounding fronts. Height adjustment is handled at the mounting plate, so vertical positioning can be corrected on the plate without changing the hinge cup location in the door.

Using This Hettich Sensys Hinge In Projects

Where This Thick Door Hinge Fits Best

This Hettich Sensys 95 degree hinge is identified as a full overlay option for face-frame cabinets, which suits layouts where the door is intended to cover the frame front and present a flush visual line. Its suitability for frameless thick doors means it also fits frameless cabinet constructions that use thicker door materials, allowing the same hinge model to serve both construction styles in a shop. The specified door thickness range of 15 mm to 32 mm supports everything from lighter doors up to substantial thick doors, which is useful when working with thicker fronts or applied panels within that range. As a concealed cabinet hinge, it sits inside the cabinet structure rather than on the face, which keeps hardware out of sight when the door is closed and supports a clean design.

Adjustment And Soft-Close For Consistent Results

The integrated Silent System soft-close feature is built into this Sensys hinge, so the damping is part of the hinge body and does not require a separate closer, which simplifies layout planning and drilling operations. With overlay adjustment of plus 2 mm and minus 2 mm, doors can be shifted sideways after installation, which helps tune the reveal lines between doors and against cabinet ends without redrilling hinge cups. Depth adjustment of plus 3 mm and minus 2 mm lets you move the door closer to or farther from the cabinet, which helps bring door faces into plane across a large run. Height adjustment located at the mounting plate provides vertical fine-tuning, so doors can be raised or lowered slightly on the cabinet side while the door cup position remains fixed. Together, these integrated adjustments help reduce rework during installation and make it easier to deliver consistent margins and clean alignments on face-frame or frameless cabinets built within the hinge's specified door thickness range.

Common Questions About Sensys Thick Door Hinge 9091430

Selecting This Sensys Hinge For Cabinet Work

The Hettich Sensys thick door hinge 9091430 combines concealed mounting, soft-close Silent System, and a 95 degree opening angle with adjustment in overlay, depth, and height, so it supports accurate fitting of full overlay face-frame and frameless thick doors within the 15 mm to 32 mm range.
