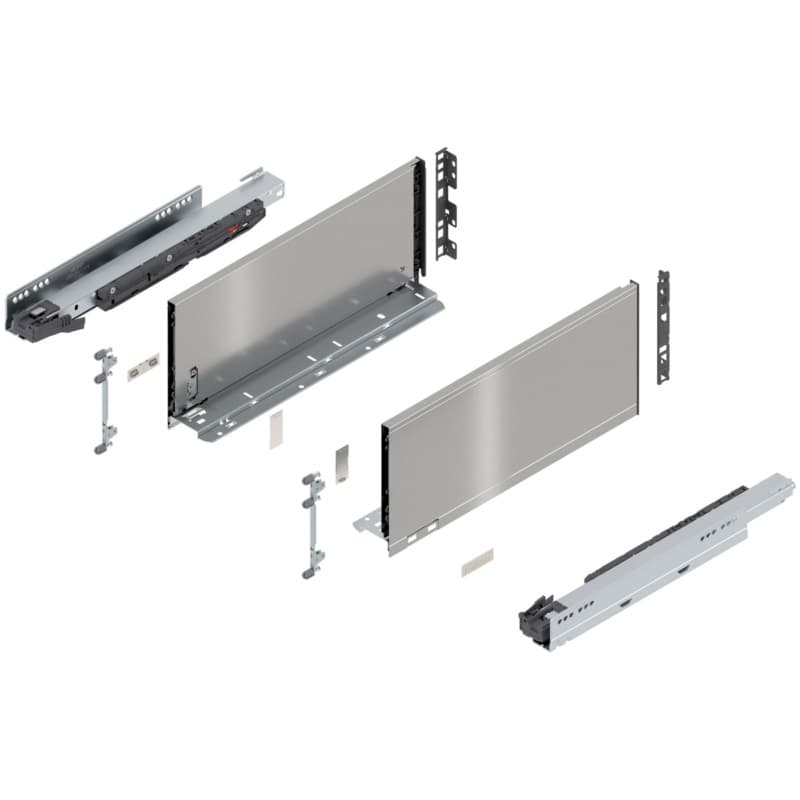

This is the Blum LEGRABOX C Height complete drawer system in Stainless Steel, a 16 inch (400mm nominal length) full-extension, soft-close metal drawer system rated at 125 lb. The C Height profile at 177mm (7 inches) suits deep storage drawers — pots, pans, pantry pull-outs, and tall-bin applications where a shallower side height would leave too much dead space above the contents.
The C Height LEGRABOX is the go-to choice when contents are tall but a full inner drawer box is unnecessary or cost-prohibitive. In a kitchen, that means a pots-and-pans drawer or a tall pantry pull-out where cast iron and sheet pans need a side wall high enough to retain them. In a bath or utility room, the same profile handles rolled towels, cleaning supplies in tall bottles, or organized bin storage. The Stainless Steel finish coordinates naturally with brushed metal appliances and hardware, and it holds up visually against the wear patterns of a working kitchen — fingerprints are less visible on the textured metallic surface than on matte painted finishes.
LEGRABOX sides are double-walled steel profiles, meaning both the inner and outer face are smooth and finished — no exposed fasteners or raw edges face the interior. The Stainless Steel color is factory-applied to the steel profiles and coordinates with the AMBIA-LINE interior organization accessories available for LEGRABOX drawers. The nominal length of 400mm (16 inches) is the system dimension that determines which runners, back panels, and front fixings are compatible; order all components to the same nominal length. BLUMOTION soft-close is integrated into the runner, not retrofitted, so the damping is calibrated to the system's load range and does not require separate adjustment out of the box.
Cabinet shops specifying premium kitchens reach for LEGRABOX when the client wants a metal drawer system that shows well at reveal — the double-walled sides and coordinated finish look factory-fitted rather than utilitarian. Designers appreciate the C Height because it gives a tall profile without committing to the visual bulk of the highest LEGRABOX heights. Contractors completing high-end residential installs stock LEGRABOX in standard nominal lengths so fronts can be fitted and adjusted on-site using the system's front fixing brackets. The 125 lb capacity means the system does not become a limiting factor on heavily loaded drawers, which matters in a pantry or a large pot drawer where content weight is real.
No. As a complete drawer system, it includes the side profiles, integrated runners, and BLUMOTION mechanism. The drawer front, bottom panel, and back are cut by the shop to the manufacturer's published cutting dimensions for this nominal length and height.
Yes. AMBIA-LINE is Blum's interior organization line engineered for LEGRABOX drawers. Cutlery trays, utensil inserts, cross dividers, and other AMBIA-LINE components in Orion Gray Matte and Stainless Steel are designed to fit LEGRABOX interiors — select inserts in the Stainless Steel finish to match this system.
Stainless Steel has a metallic sheen that pairs with brushed or polished metal accents. Orion Gray Matte is a flat, dark gray that reads more neutral. Both are factory-applied finishes on the same double-walled steel profile; the choice comes down to the interior palette of the cabinet.
Front fixing brackets for LEGRABOX are system-specific and height-specific — order brackets made for LEGRABOX C Height. They are sold separately and must come from the LEGRABOX program; brackets from other Blum drawer systems or other brands do not interchange.
The 125 lb rating is the capacity for the complete drawer system as installed — that is, the working load the drawer carries, not a per-side figure. Load the drawer to suit that limit and the system performs as rated.
The LEGRABOX C Height in Stainless Steel combines a practical deep profile, a 125 lb capacity, and integrated BLUMOTION soft-close in a finish that holds its own next to high-end appliances and hardware. Specify it where the drawer needs to work hard and look right doing it.
Sold In: 1 Set
