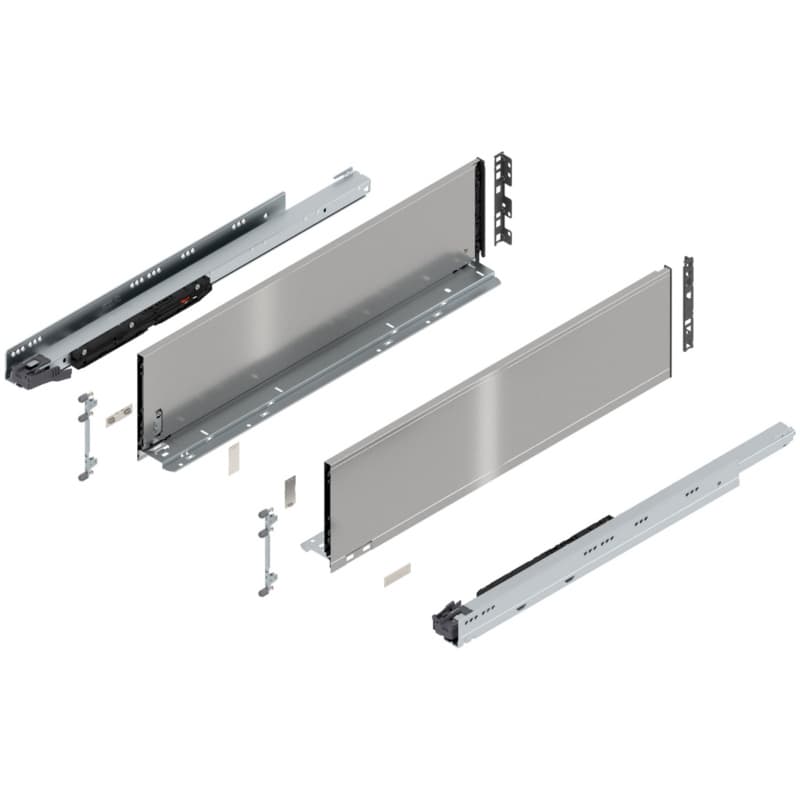

This 26 inch LEGRABOX C Height drawer system pairs Blum's full-extension, soft-close runner with a stainless steel side profile — a combination built for kitchen and bath projects where the interior finish and the load rating both matter. At 177mm (7 inches) tall, the C Height side is deep enough for pots, pantry stock, and heavy utensil drawers without the bulk of a taller profile. Sold as a complete drawer system: side profiles, integrated runners, and BLUMOTION soft-close. The front, bottom panel, and back are supplied by the builder to Blum's published cutting dimensions.
The C Height in stainless steel suits drawer applications where the interior of the cabinet is visible and finish consistency matters. Kitchen showrooms, high-specification renovations, and commercial-grade residential installs benefit most — especially when the adjacent appliances or hardware carry a stainless or brushed steel theme. The 170 lb capacity also opens this system to heavy-duty storage work: a full pot drawer, a deep pantry pull-out, or a bottom drawer carrying cast iron cookware all fall within the rating. For face-frame cabinets, add Blum's LEGRABOX-series rear mounting brackets, sold separately, to complete the installation.
The side profiles are formed steel with a double-walled construction that conceals fasteners and presents a clean face on both the interior and exterior of the drawer wall. The stainless steel finish is a factory-applied metallic coating that coordinates with AMBIA-LINE interior organization components offered in the same program. The BLUMOTION damping mechanism is integrated into the runner rather than added as a clip-on accessory, so the soft-close action is consistent across the drawer's weight range without adjustment at the job site. Drawer bottom and back dimensions follow Blum's published cutting formula for the 650mm nominal length and C Height combination.
Cabinet shops building production kitchens with stainless interiors, designers specifying handle-less slab fronts, and contractors fitting high-load pantry pull-outs are the primary buyers. The stainless finish is also a practical choice for shop utility drawers that need to be cleaned down — the metallic surface shows soiling less than a matte white or gray. Homeowners replacing an existing LEGRABOX system should match the C Height designation and the 650mm nominal length to the current installation before ordering.
The side profiles are steel, and the stainless appearance is a factory finish applied to the formed steel walls. The source data lists the material as steel and the finish as Stainless Steel; consult Blum's finish guide if surface hardness specifications are required for a project.
The system includes the side profiles and the integrated BLUMOTION runners. The builder cuts and supplies the drawer front, bottom panel, and back to Blum's published dimensions for the 650mm nominal length and C Height. Front fixing brackets are a separate order if not already on hand.
Yes, with the addition of Blum's LEGRABOX-series rear mounting brackets, sold separately. Direct side mounting on the 32mm grid suits frameless cabinets; face-frame installs require the rear bracket set to position the runner correctly.
Yes. AMBIA-LINE is Blum's interior organization line for LEGRABOX drawers and is available in finishes that coordinate with the stainless steel profile. Select AMBIA-LINE components sized for the C Height and the 650mm nominal length.
The 170 lb capacity listed in the product attributes is the heavy-duty LEGRABOX series rating, stated per drawer system. Confirm the exact dynamic and static figures in Blum's current LEGRABOX technical data sheet if the project requires the distinction.
When the drawer interior is part of the design — not just the function — the stainless steel finish carries through from opening to closing with a surface that holds up to the load and the look the project calls for.
Sold In: 1 Set
