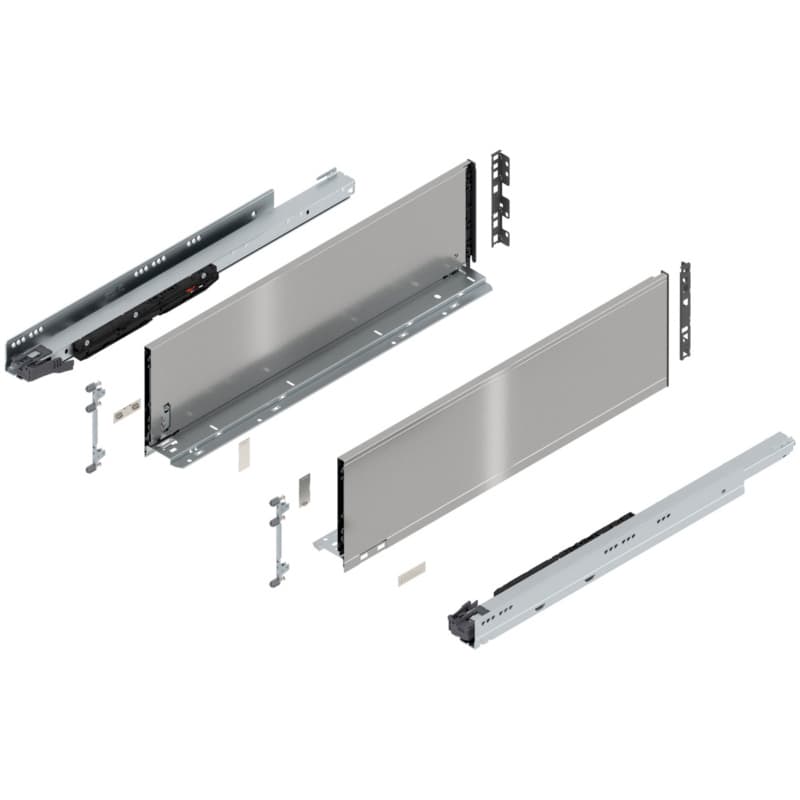

This is a complete 24-inch LEGRABOX C Height drawer system from Blum, finished in Stainless Steel and rated for 170 lb. It combines a double-walled steel side profile with integrated BLUMOTION soft-close and full-extension travel, delivering a kitchen-grade metal drawer ready to carry real workloads.
At 24 inches nominal length and 177mm tall, this C Height system is built for the drawers that carry the most: pots and pans, heavy kitchen tools, pantry staples, and anything that would buckle a lightweight slide. The 170 lb capacity handles a loaded pot drawer without straining the runners, and full-extension travel means you can reach every corner of a deep box without pulling the cabinet off the wall. That combination makes this system a practical choice for base cabinet pot drawers, deep pantry pull-outs, and utility drawers in commercial or residential kitchens. Shops building furniture-grade cabinetry will also find the Stainless Steel finish well-suited to work alongside stainless appliances and hardware in a unified aesthetic.
The Stainless Steel finish is not a cosmetic upgrade layered over a standard profile — it is a color option across the LEGRABOX line that reads as clean and professional in open-drawer applications. The double-walled steel construction keeps every fastener hidden so the inside of the drawer looks as finished as the front. Blum's BLUMOTION damper is integrated into the runner rather than added on, which means the soft-close mechanism is calibrated to the system's load range and adapts as drawer weight changes. The steel sides and integrated runner form one engineered unit; the buyer supplies a bottom panel, a back, and a front built to Blum's cutting specifications for this nominal length and height code.
Kitchen designers specifying tall, heavy-duty base drawers reach for the C Height profile because the 177mm side wall provides the structural depth these applications need. Cabinet shops running frameless European construction will find this system drops directly onto the 32mm grid. The Stainless Steel finish specifically appeals to projects pairing the drawer interior with stainless appliance suites or polished hardware, and to commercial-adjacent residential kitchens where a professional finish language is part of the brief. Contractors installing pre-built cabinetry that calls for a LEGRABOX system can order this configuration by nominal length and height code — the 600mm (24-inch) C Height covers the most common deep base cabinet specification.
This system includes the side profiles and integrated runners. You supply the drawer bottom panel, the rear back panel, and the drawer front, all cut to Blum's published dimensions for the 600mm nominal length and C Height side profile. Front fixing brackets and a locking device are separate LEGRABOX accessories if not already included in your build.
Soft-close. BLUMOTION is a damped closing mechanism — not a spring ramp — so the drawer decelerates quietly over the last portion of travel regardless of how firmly it is pushed in.
LEGRABOX is designed primarily for frameless (European) cabinet construction on the 32mm grid. Face-frame installations require additional rear mounting hardware specific to LEGRABOX; confirm the required components before ordering for a face-frame application.
Yes. AMBIA-LINE is Blum's interior organization line for LEGRABOX drawers and is compatible with the C Height profile. AMBIA-LINE inserts are ordered separately by their own width and depth to fit the drawer interior.
The 170 lb rating reflects the heavy-duty LEGRABOX series. The standard series carries a lower rating; when the source lists 170 lb, that is the heavy-duty configuration and it is the number that applies here.
Stainless Steel finish, 170 lb capacity, full extension, and integrated BLUMOTION soft-close make this 24-inch C Height LEGRABOX system the specification for kitchens that take heavy use seriously. Build the box to Blum's spec, hang the front, and the drawer is ready for years of daily use.
Sold In: 1 Set
