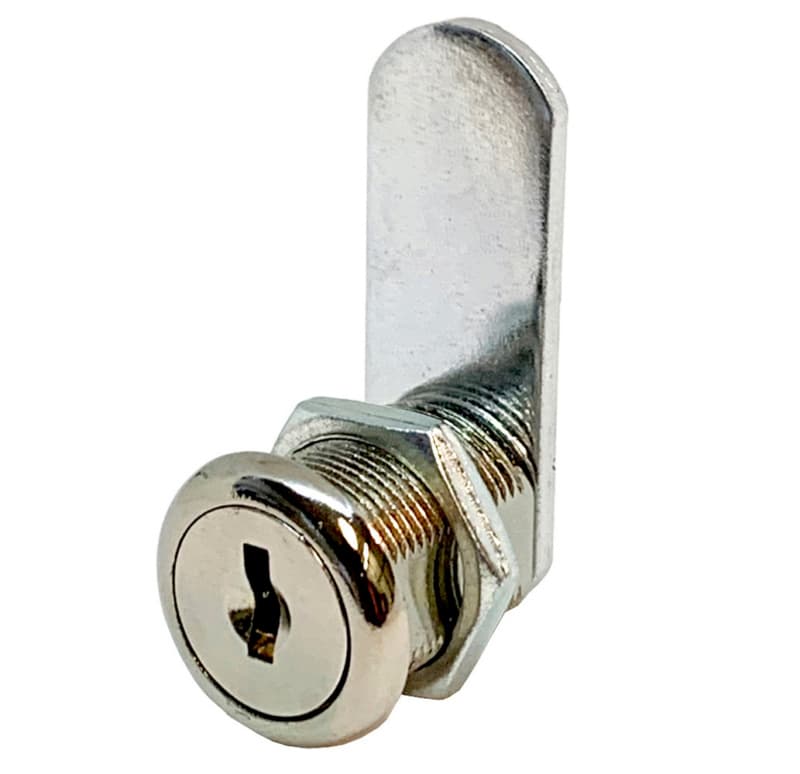

Olympus Disc Tumbler Cam Lock, 1-7/16" Cylinder with Key Different Bright Nickel 955-14A-KD

Olympus Disc Tumbler Cam Lock For Cabinets

Olympus disc tumbler cam lock, 1-7/16 inch cylinder with key different bright nickel 955-14A-KD gives you a keyed security point for drawers and right-hand or left-hand doors, so you can lock casework consistently across a project. The bright nickel finish provides a clean, professional look that matches common cabinet hardware, which helps jobs present well in finished spaces. This cam lock is in the cam locks class, so it is suited to securing cabinet fronts rather than serving as a door knob or latch. The lock comes assembled, which reduces bench time during installation because the cylinder and body do not need separate handling before mounting. As an Olympus Lock, Inc. product, it matches common commercial cabinet hardware lines by the same manufacturer, which simplifies hardware selection when specifying multiple locking points.

Job-Ready Cam Lock Details That Save Time

• The lock comes assembled, so installers can mount a single unit without building up parts, which speeds repetitive casework production on larger runs.
• The cylinder and body are assembled via a patented retainer staple, which holds components together during handling, reducing dropped parts and rework on busy shop floors.
• The lock passed the ANSI/BHMA Grade 2 cycle test at 20,000 cycles including key insertion and removal, which indicates the mechanism is designed for repeated daily operation in typical cabinet use.
• The spur washer with eyelet, when screwed into place, prevents lock rotation and keeps the fixing nut from loosening after installation, which helps the lock stay aligned in the panel over time.
• The revolutionary cylinder plus cylinder extender allows cylinders to be swapped between different size cam lock bodies, which increases inventory and keying flexibility across multiple cabinet styles.
• Custom keying typically ships direct from the manufacturer in 48-72 hours, which supports projects needing specific keying patterns without long scheduling delays.

Installation Layout For Overlay And Flush Fronts

This Olympus disc tumbler cam lock provides a 1-7/16 inch cylinder, which gives a reference for panel and frame build-up when planning borings. For overlay applications, the combined thickness of the front and frame cannot exceed the cylinder length listed, which helps installers design door and drawer fronts that allow full cam engagement. The cam lock offers a 1-1/2 inch straight cam option for lipped or overlay construction, which suits cabinet doors that step over the frame. It also offers a 1-1/8 inch extension, 11/32 inch offset cam for flush construction, which lets the cam reach and grab the strike surface on flat-front installations.

Cam Lock Use, Operation, And Keying Control

Where This Cam Lock Works Best In Casework

This bright nickel cam lock is designed for drawers and right-hand or left-hand doors, so it can be used on a mix of cabinet fronts throughout an installation without changing hardware type. The 90 degree cam turn means the lock operates with a quarter-turn motion, which suits typical cam strike layouts on cabinet rails and gables. Lipped or overlay construction is supported with the 1-1/2 inch straight cam, allowing the cam to reach over the frame edge and secure the door. Flush construction is supported with the 1-1/8 inch extension, 11/32 inch offset cam, allowing the cam to reach behind a flat front, which is useful on frameless or face-flush designs. The spur washer with eyelet, when screwed into place, prevents the lock from rotating in the hole, which keeps the cam correctly oriented to the strike point during repeated locking and unlocking. Because the product falls in the locks and latches cam locks category, it serves as the primary mechanical point that holds the front closed rather than acting as a decorative pull.

Why Operation, Keying, And Cylinder Design Matter

This Olympus cam lock has keys that are removable in both locked and unlocked positions, which lets users remove the key after securing a cabinet or leave the lock ready for staff use without leaving the key hanging in the cylinder. The cylinder and body are shipped assembled via the patented retainer staple, which helps maintain consistent cylinder depth and alignment, reducing adjustment work during repetitive installations. The revolutionary cylinder plus cylinder extender design allows cylinders to be swapped between different size cam lock bodies, which lets shops standardize on a cylinder family while using shorter or longer bodies as cabinet thickness changes. Custom keying typically ships direct from the manufacturer in 48-72 hours, which supports keyed-different or keying plan work on commercial projects with defined security levels. Passing the ANSI/BHMA Grade 2 cycle test at 20,000 cycles including key insertion and removal demonstrates that the lock mechanism is built for frequent use, which supports installations in cabinets that are opened and locked many times per day.

Common Questions About Olympus Disc Tumbler Cam Lock

Selecting This Cam Lock For Cabinet Projects

The Olympus disc tumbler cam lock, 1-7/16 inch cylinder with key different bright nickel 955-14A-KD offers a 90 degree cam turn, support for drawers and doors, and options for lipped, overlay, or flush construction, so it fits a wide range of cabinet layouts. Passing the ANSI/BHMA Grade 2 cycle test at 20,000 cycles including key insertion and removal supports use where cabinets see regular locking and unlocking. The cylinder plus extender design and key removable in both positions help installers and facility staff work efficiently. Use these verified details to match this cam lock to cabinet thickness, front style, and usage frequency on your next project.
