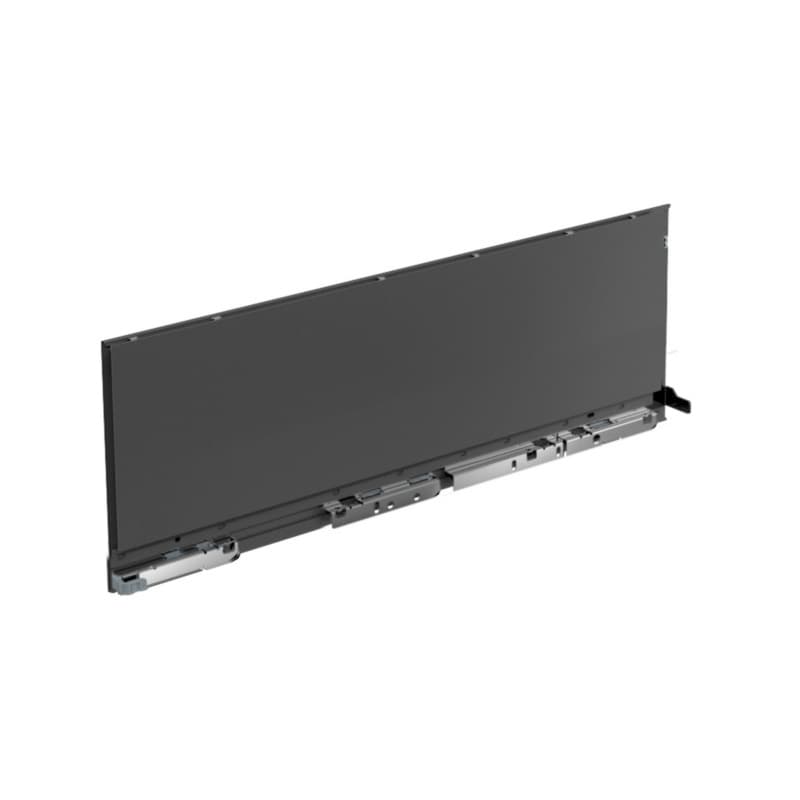

AvanTech YOU Right Hand Drawer Side Profile
AvanTech YOU right hand drawer side profile defines the working edge of a Hettich AvanTech YOU drawer on the right side, so the drawer box keeps consistent geometry along its full 550mm length. This component is specified at 187mm drawer height, which sets a repeatable side wall height that aligns well with matching AvanTech YOU parts in the same system. The part is identified as Hettich America Corporation manufacturer part 9255217, which helps match it to AvanTech YOU documentation and ordering systems. The profile is part of the Hettich AvanTech YOU Drawer System, so it acts as one element in a coordinated drawer construction platform. Anthracite finish gives the visible side a dark, uniform appearance that blends with other anthracite AvanTech YOU elements in the run.
Key Drawer Side Details For Project Planning
- The specified 187mm drawer height sets the drawer side wall elevation, which helps installers plan clearances for fronts, runners, and interior contents when building around the AvanTech YOU platform.
- The 550mm length dimension defines the depth of the right hand side, supporting layout decisions for cabinet carcasses that are designed around matching runner lengths and case depths.
- The right hand orientation means this profile is intended for the right side of the drawer box, so its geometry and adjustment features are aligned for that side within the AvanTech YOU system.
- Anthracite finish on the drawer side profile delivers a consistent dark color tone, which matters where drawer sides are visible and design calls for a coordinated anthracite drawer system appearance.
- The part belongs to the Hettich AvanTech YOU Drawer System category, so its dimensions and adjustment features are engineered to work as a system component in that specific drawer construction line.
- Identification as Hettich manufacturer part 9255217 creates a clear reference for reordering or matching technical information within Hettich AvanTech YOU project documents.
Integrated Adjustment Functions For Drawer Fit
The web description states integrated vertical, lateral, and tilt adjustment, so this drawer side profile provides three axes of fine-tuning during drawer setup. Vertical adjustment allows the installer to raise or lower the drawer front relative to the cabinet opening, helping maintain even reveals across a bank of AvanTech YOU drawers. Lateral adjustment shifts the drawer side-to-side, which supports aligning front gaps against adjacent fronts or cabinets. Tilt adjustment controls the angle of the front, so the installer can correct for minor carcass variation and achieve a plumb, true-appearing drawer front within the AvanTech YOU system.
How This AvanTech YOU Component Works In Practice
Right Hand Profile For AvanTech YOU Drawer Runs
This product is classified as an AvanTech YOU right hand drawer side profile, so it defines the right side rail of a Hettich AvanTech YOU drawer assembly. Being part of the Hettich AvanTech YOU Drawer System means its geometry is coordinated with compatible AvanTech YOU runners and matching left-hand components, which supports consistent drawer action throughout a project. The 550mm length dimension ties directly to drawer depth, so carcass design can be based on that depth when planning cabinet interior space. With a 187mm drawer height, the profile establishes a medium-height side that can align with other AvanTech YOU elements designed for the same rail height, simplifying layout decisions when repeating the same drawer specification across multiple cabinets.
Adjustment, Finish, And Material For Repeatable Results
The integrated vertical, lateral, and tilt adjustment described in the web description gives the installer three-way fine-tuning at the drawer side, which is useful when cabinet walls or fronts vary slightly from ideal. Powder coated steel construction provides a rigid structural member for the drawer side while also presenting a finished surface, which supports smooth drawer operation and consistent visual appearance over time. The anthracite color mentioned in the product name delivers a uniform dark tone along the full 550mm length, matching other anthracite Hettich AvanTech YOU components in the same installation. As part of the Hettich Drawer Systems category, this right hand profile works as a defined component in a systemized drawer construction workflow, helping keep builds consistent when replicating the same drawer configuration in multiple units.
Common Questions About This Drawer Side Profile
What drawer height does this AvanTech YOU side profile support?
This AvanTech YOU right hand drawer side profile is specified at 187mm drawer height, so it sets a consistent side wall height for drawers built to that dimension.
How deep of a drawer can I build with this 9255217 profile?
The side profile length is 550mm, so it is intended for drawer constructions planned around a 550mm nominal drawer depth within the AvanTech YOU system.
What adjustment options does this Hettich drawer side provide?
The web description specifies integrated vertical, lateral, and tilt adjustment, so the drawer side supports three-way front alignment during installation.
Which side of the drawer uses this AvanTech YOU profile?
The product is described as a right hand drawer side profile, so it is intended for use on the right side of an AvanTech YOU drawer box.
What is the finish and material of this drawer side profile?
The drawer side profile is described as anthracite and powder coated steel, combining a dark visual appearance with a coated steel structural member.
How is this part identified within Hettich AvanTech YOU systems?
This drawer side profile is identified as Hettich America Corporation manufacturer part number 9255217, which ties it to AvanTech YOU system documentation.
Selecting This AvanTech YOU Profile For Your Job
This AvanTech YOU right hand drawer side profile from Hettich America Corporation provides a 187mm high, 550mm long, anthracite powder coated steel side with integrated vertical, lateral, and tilt adjustment. For projects built around the Hettich AvanTech YOU Drawer System, these defined dimensions and adjustment functions help align drawers visually while matching cabinet depth plans and system documentation. When a job calls for a right hand anthracite AvanTech YOU side at 187mm height and 550mm length, this 9255217 component offers a system-matched option.
