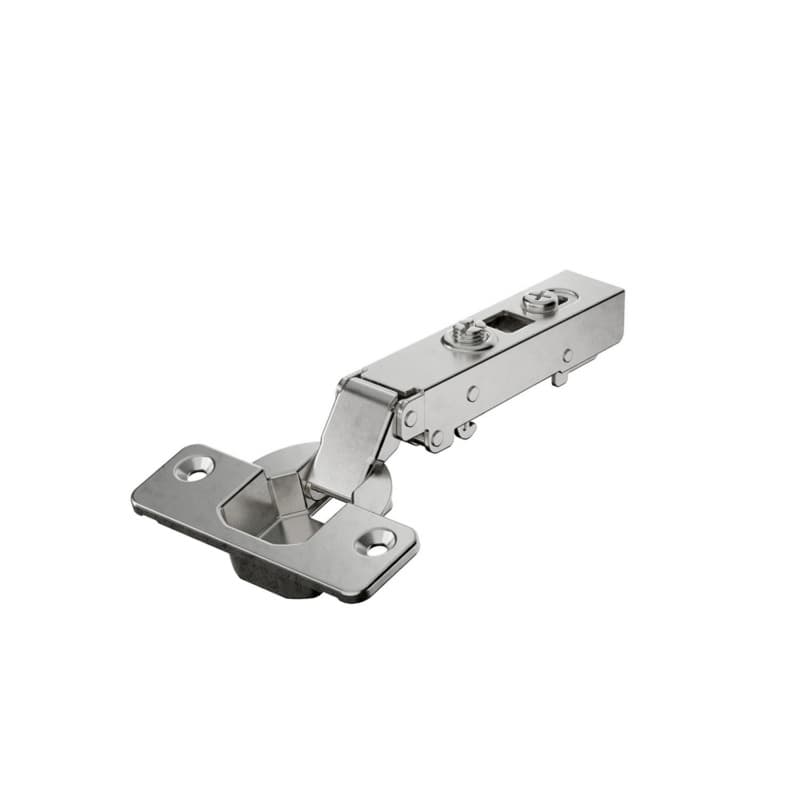

105D Softclose Hinge Full Overlay Screw-On Use

105D softclose hinge full overlay screw-on identifies a Hettich concealed cabinet hinge designed for full overlay doors in cabinet work. The hinge operates at 105 degrees, which gives typical opening access while staying within the European standard hinge range for consistent layouts across a run of doors. The screw-on designation shows that the hinge fastens to the door and mounting plate with screws, supporting a secure mechanical connection in wood cabinet construction. This hinge is a concealed cabinet hinge, so the hardware stays hidden when the door is closed, giving casework a clean, uninterrupted front while still allowing full functional adjustment at the hinge. The hinge is classified for both face-frame and frameless applications, which means it can be used across different cabinet construction styles in the same project where that flexibility is required.

Key Hettich Veosys Hinge Details For Jobs

• The hinge uses an integrated Silent System soft-close mechanism, which slows the door in the final travel and supports quieter, more controlled closing in cabinet installations.
• The product is specified as a concealed hinge with clip on installation, so the hinge cup can be attached to or removed from the mounting plate without tools, which speeds fitting and later adjustment work.
• The hinge is designed for door thickness from 14 to 22 mm, setting a defined material range that helps match the hinge to common cabinet door stock in millwork projects.
• The cup diameter is 35 mm and cup depth is 11.5 mm, giving a standard European hinge bore size and depth that coordinates with common boring patterns and equipment.
• The product is made from stainless steel, providing a metal construction that supports use in typical cabinet environments where moisture and wear can be present.

Mounting, Adjustment, And Fit Characteristics

The hinge uses a screw-on fastening style, so the installer uses screw attachment for the hinge-to-door and hinge-to-plate connection, keeping the joint secure under repeated door cycles. Cup diameter of 35 mm with 11.5 mm depth means the door requires a 35 mm bore at that depth, aligning with standard cabinet drilling setups for repeatable positioning. The integrated overlay adjustment of plus 2.5 mm and minus 2.5 mm allows lateral movement of the door relative to the cabinet side, which helps achieve consistent reveals along a cabinet face. Integrated depth adjustment of plus 2 mm and minus 1.5 mm lets the hinge move the door in and out from the case, helping the door sit flush to the cabinet front line. Height adjustment is provided at the mounting plate, so vertical fine-tuning is done where the hinge meets the plate, supporting alignment of door tops and bottoms across multiple openings.

Using This Concealed Hinge In Cabinet Work

Where This 105 Degree Hinge Fits Best

This product is a Hettich Veosys soft-close silent system full overlay face-frame;frameless hinge in the concealed cabinet hinge class, so it is suited to installations where hidden hardware and smooth closing are desired on full overlay doors. Because it is described for both face-frame and frameless hinges, the same hinge type can be used on different cabinet constructions within one project when full overlay is needed. Door thickness suitability from 14 to 22 mm covers many cabinet door materials, from thinner engineered panels up to thicker solid or composite fronts within that range, which aids in standardizing on a single hinge family. The 105 degree opening angle provides access for everyday cabinet use while maintaining door control, and it fits within common layout expectations for European standard hinges.

Adjustment And Setup For Repeatable Results

The integrated overlay adjustment of plus 2.5 mm and minus 2.5 mm on the hinge provides side-to-side positioning after the door is hung, allowing the installer to dial in consistent gaps between adjacent doors and end panels. Integrated depth adjustment of plus 2 mm and minus 1.5 mm on the hinge body gives front-to-back control of the door, which helps align the door face with the cabinet front so doors sit properly without twist at the hinge line. Height adjustment at the mounting plate means vertical door alignment is managed where the hinge arm meets the plate, supporting quick corrections if a door corner appears high or low relative to nearby fronts. Because the hinge uses clip on installation with a concealed design, the cup can be quickly attached or detached from the plate during setup, which can simplify repeated trial fitting and adjustment in a bank of cabinets. The integrated Silent System soft-close feature works during door closing, so there is no separate closer to set, helping maintain consistent closing action once installed.

Common Questions About Hettich 9309494 Hinge

Selecting This Hinge For Cabinet Projects

This Hettich Veosys soft-close silent system full overlay hinge combines a 35 mm concealed cup, clip on installation, and screw-on fastening, so it fits into standard European boring while supporting efficient mounting. Overlay, depth, and height adjustments built into the hinge and mounting plate give the control needed to align full overlay doors across runs and corners. Stainless steel construction and the integrated Silent System soft-close function support long-term cabinet use where quiet closing and concealed hardware are priorities. For projects needing a 105 degree, full overlay concealed hinge in the 14 to 22 mm door thickness range, this Hettich 9309494 configuration aligns well with typical cabinet and casework requirements.
