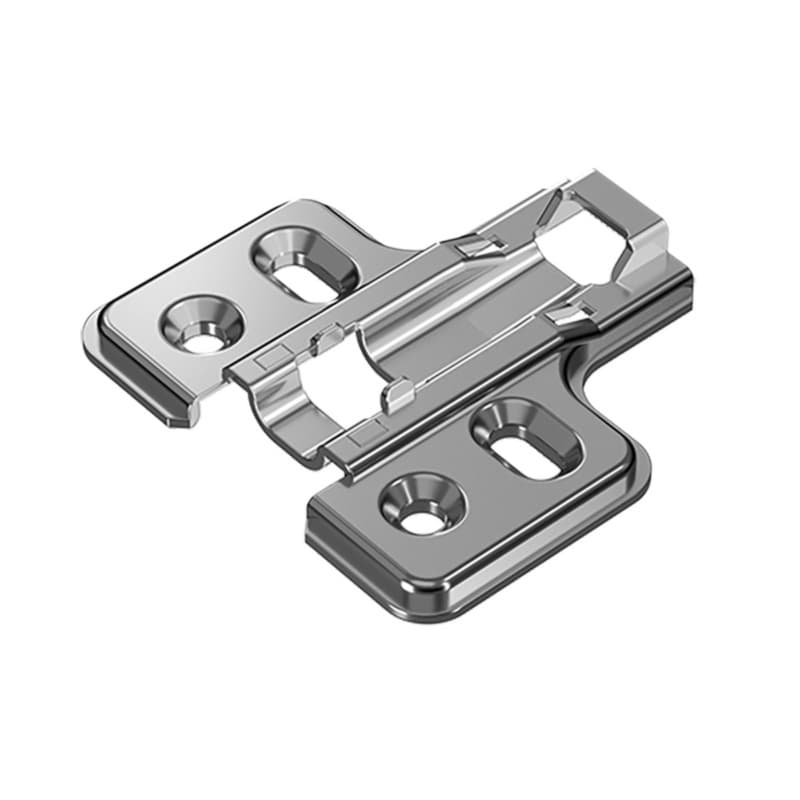

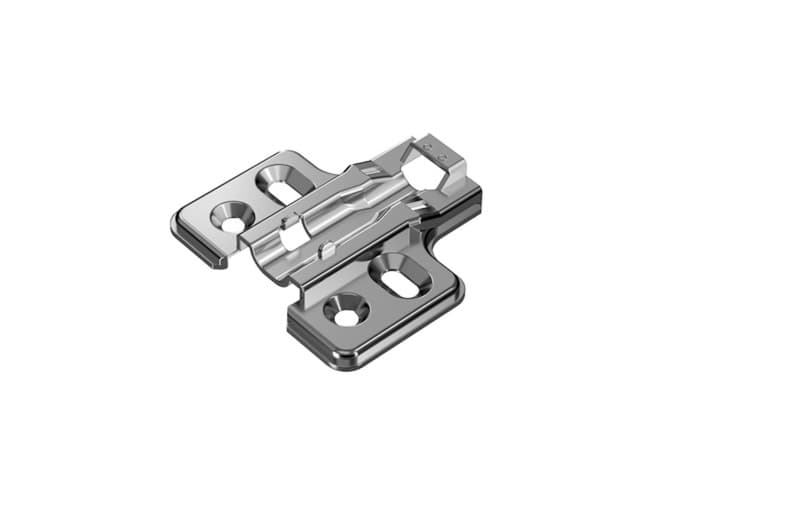

Veosys cross mounting plate defines this stainless steel hinge mounting plate from Hettich America Corporation, giving installers a dedicated base for Veosys hinge arms where a 2mm plate height is required. As a hinge mounting plate, it supports the hinge arm so doors can be positioned accurately on the cabinet. The 2mm specification sets the door overlay relationship relative to the cabinet, which affects reveal consistency across a run of doors. Identified by manufacturer part number 9289609 and described as a 2mm Veosys inline mounting plate, it provides a clear reference for matching existing hardware in service work. The plate is part of the Hinge Mounting Plates product class under hinges and hinge base plates, which aligns it with common cabinet and casework construction workflows. This focused identity helps keep hardware planning straightforward on both new installations and replacements.
The plate is specified as a 2mm Veosys inline mounting plate, so the 2mm height becomes a predictable reference when aligning doors across multiple openings. A hole spacing of 32mm matches the common 32mm system layout, allowing the plate to integrate with rows of system holes or templated drilling patterns. The web description notes a cross mounting plate for 4.5 mm x 16 mm with #8 x 5/8 inch countersunk screws, so the screw sizing and countersunk form support a flush mounting surface at the plate. An oblong hole height adjustment of plus or minus 3 mm gives vertical play at the hinge connection, so small cabinet or drilling variances can be corrected directly at the plate.
This product sits in the Hinges and Hinge Base Plates category as a hinge mounting plate, so it is aimed at cabinet and similar casework doors that use Veosys hinges. The cross mounting plate design for 4.5 mm x 16 mm with #8 x 5/8 inch countersunk screws means it is suited to applications where those screw dimensions and countersunk heads are standard practice, such as many cabinet frames and panels prepared for hinge plates. Its 2mm inline designation defines how the hinge arm will stand off from the cabinet, which is relevant in runs of doors where the same mounting geometry needs to be repeated. Because the plate is part of a hinge system classified under EN 15570, Level 2, it aligns with projects following that classification for their hinge hardware selection.
The 32mm hole spacing directly supports layouts based on the 32mm system, so rows of cabinet holes can receive this plate without reworking spacing, saving layout time on multi-door installations. Stainless steel material provides a stable mounting surface for the hinge arm under door loads, which is important for maintaining door alignment after repeated opening and closing. The oblong hole height adjustment of plus or minus 3 mm at the plate allows fine vertical tuning between door and cabinet, which is useful when panel cuts or drilling locations vary slightly from plan. Using #8 x 5/8 inch countersunk screws in the specified pattern keeps the plate seated flat against the cabinet, which supports accurate hinge geometry and smooth door motion. Together, these defined details give installers a hinge mounting plate that behaves predictably across cabinets built to similar standards.
The Hettich 9289609 plate is a Veosys cross mounting plate classified as a hinge mounting plate, so it serves as the cabinet-side base for a compatible hinge arm.
The 2mm plate height sets the hinge arm position relative to the cabinet, influencing door overlay and helping match other doors that use the same mounting height.
The mounting plate uses 32mm hole spacing, so it fits layouts based on the 32mm system where holes or patterns follow that center-to-center distance.
The web description specifies #8 x 5/8 inch countersunk screws for the cross mounting plate, so that size and head style match the intended mounting interface.
The mounting plate offers an oblong hole height adjustment of plus or minus 3 mm, allowing small vertical shifts for aligning the door to adjacent fronts.
The Veosys cross mounting plate is stainless steel, providing a durable mounting surface for hinge arms in normal cabinet and casework environments.
The 2mm Veosys inline mounting plate from Hettich America Corporation combines a defined 2mm plate height, 32mm hole spacing, and plus or minus 3 mm oblong height adjustment in a stainless steel screw-on design. For projects using Veosys hinges and a 32mm system layout, this hinge mounting plate gives a known geometry backed by EN 15570, Level 2 classification. When a job calls for a stainless steel cross mounting plate for 4.5 mm x 16 mm with #8 x 5/8 inch countersunk screws, this part number 9289609 provides a clear, repeatable choice for the cabinet-side hinge connection.
Sold In: 1 Each
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each | HT9309494 Mfr# 9309494 | Hettich Veosys Soft-Close Silent System Full Overlay Face-Frame;Frameless Hinges Stainless Steel, 105° Screw-On - 9309494 | ||||
Sold in: 1 Each | HT9309495 Mfr# 9309495 | Hettich Veosys Soft-Close Silent System Half Overlay Face-Frame;Frameless Hinges Stainless Steel, 105° Screw-On - 9309495 | ||||
Sold in: 1 Each | HT9289611 Mfr# 9289611 | Veosys Neutral Cover Cap Stainless Steel - 200 Each |
