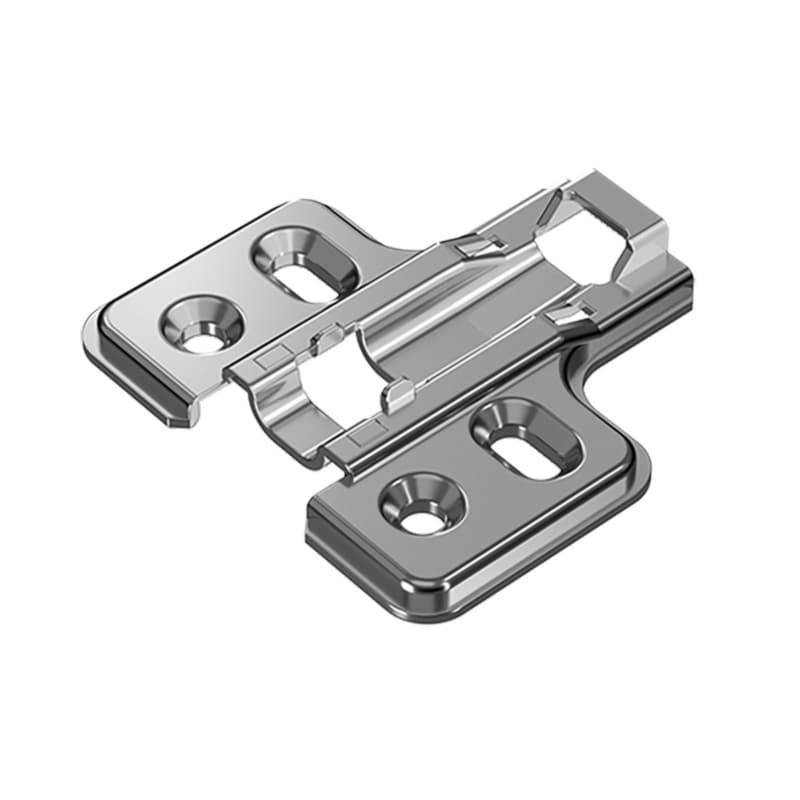

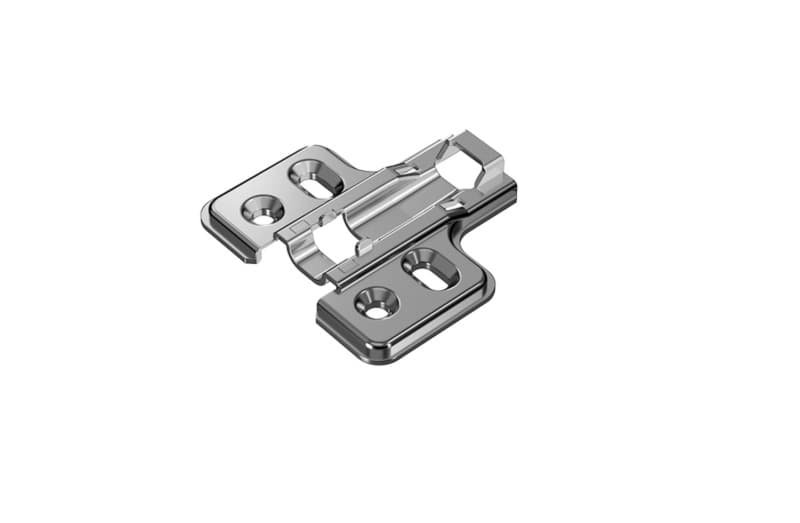

Veosys Cross Mounting Plate, Screw-On, 0mm

Veosys Cross Mounting Plate For Precise Hinges

Veosys cross mounting plate gives you a 0mm mounting base for Veosys-style hinges, so the hinge arm sits directly at the cabinet surface and keeps overlay geometry predictable on new or retrofit jobs. As a hinge mounting plate in the Hettich system, it ties the hinge arm securely to the cabinet side, creating a stable connection that supports consistent door alignment from cabinet to cabinet. The 0mm Veosys inline mounting plate setup also simplifies planning when you want the same reference dimension across a run of doors in commercial or residential work. With Hettich America Corporation behind the design and manufacturing, the hardware layout follows a familiar pattern for installers already using this hinge family in production or jobsite work.

Key Mounting Details That Support Your Workflow

• The cross mounting plate for 4.5 mm x 16 mm with #8 x 5/8" countersunk screws matches a common drilling and screw pattern, so you can drive standard #8 countersunk fasteners and get a flush seating that pulls the plate tight to the cabinet material.
• Hole spacing 32 mm lines up with standard 32 mm system boring, letting you drop this hinge base plate straight into line-bored casework without custom layouts or off-pattern drilling on the cabinet side.
• Oblong hole height adjustment plus or minus 3 mm gives you vertical play at the mounting interface, so you can fine-tune door reveal after hanging without re-drilling or shifting the case.
• Stainless steel construction resists corrosion in normal cabinet environments, so the mounting plate keeps its function and appearance over time in kitchens, baths, or utility spaces where moisture is present.
• Quality classification under EN 15570, Level 2 reflects a tested performance standard for the hinge system, which supports repeatable use in everyday cabinet-door cycles where consistent action is important.

Inline Hinge Mounting That Aids Alignment

The 0mm Veosys inline mounting plate sets the hinge arm right at the panel reference, which helps you hold consistent overlay and gap when matching doors across a bank of cabinets. Cross mounting plate geometry keeps the plate square to the cabinet side, simplifying alignment when you are working off a 32 mm line-bored pattern. Using #8 x 5/8" countersunk screws, the plate beds tightly into the mounting surface, reducing movement over time and helping doors stay where you set them. The oblong hole height adjustment plus or minus 3 mm then lets you shift the plate vertically, so you can bring doors into plane and tune reveals without altering the case or door drilling.

Using This Hettich Mounting Plate In Projects

Where The Veosys Cross Mounting Plate Fits

This Veosys cross mounting plate works as part of a hinge mounting plates setup in cabinets built around the 32 mm system, because its hole spacing 32 mm lines up with standard line-bore patterns. The 0mm mounting height suits applications where the hinge arm is designed to reference directly from the cabinet surface, so your layout math stays straightforward on frameless or system-based casework. As a hinge base plate in stainless steel, it fits well in kitchens, baths, or other interior spaces where moisture can reach the hardware, while still serving everyday cabinet-door use. Quality classification under EN 15570, Level 2 means the mounting plate supports hinge systems tested for defined performance, matching needs in regular residential or light commercial cabinet installations.

Details That Help Achieve Repeatable Door Results

The cross mounting plate for 4.5 mm x 16 mm with #8 x 5/8" countersunk screws uses a dimensioned interface, so drilling and screw choice are clear and mounting stays consistent from cabinet to cabinet. By keeping hole spacing 32 mm, the plate drops directly into standard system rows, which speeds layout on production runs and helps your hinge positions match the drilling pattern every time. The oblong hole height adjustment plus or minus 3 mm then gives practical vertical tuning, letting you raise or lower the door slightly to balance reveals when walls or cabinet fronts are not perfectly true. Stainless steel construction maintains the integrity of these adjustment slots over time, so set positions are better preserved during the life of the cabinet. With the EN 15570, Level 2 classification, the plate is designed to function within a hinge system whose performance has been assessed against a recognized standard, supporting consistent operation in routine opening and closing cycles.

Practical Questions About This Veosys Mounting Plate

Select This Plate For 32 Mm Veosys Hinge Runs

The 0mm Veosys inline mounting plate with hole spacing 32 mm, oblong hole height adjustment plus or minus 3 mm, and stainless steel construction offers a precise base for Veosys-style hinges in system-drilled cabinets. When you want stable door alignment, standard 32 mm hole positions, and a mounting plate that supports EN 15570, Level 2 hinge performance, this Hettich America Corporation hinge base plate gives you those defined parameters for both shop production and on-site work.
