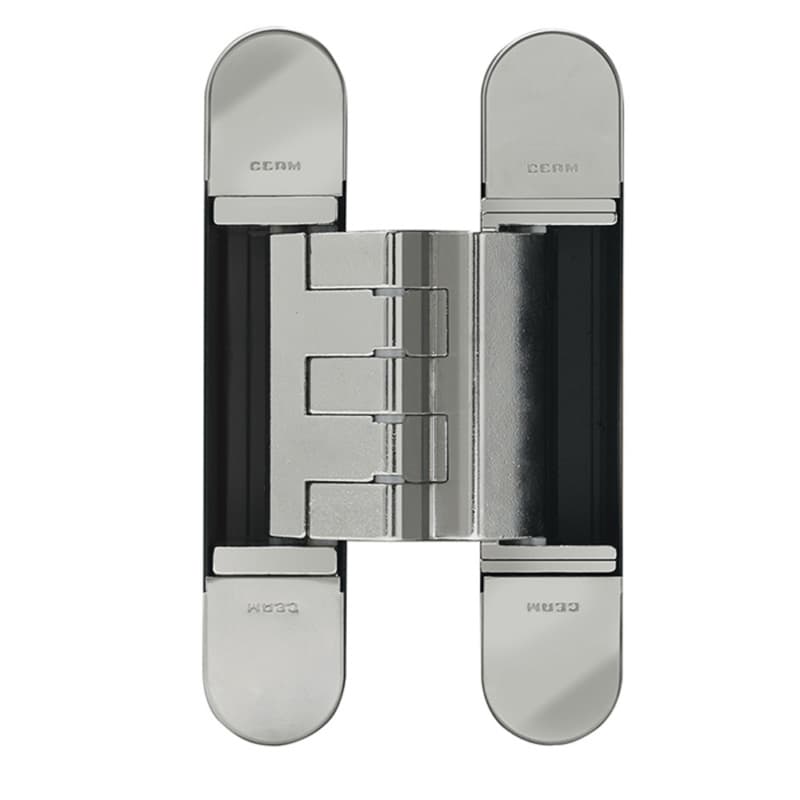

3D Invisible Hinge 1418 defines this Peter Meier, Inc. hinge as a concealed, 3-way adjustable solution for heavier doors where visible hinges are not desired. The zinc construction provides a solid, engineered body that supports the 3D adjustments and load rating in daily use. The nickel plated finish gives the hinge a clean, uniform surface that suits projects where the hinge is visible only when the door is open. The 150mm total length spreads the load over a longer mortise, which helps the hinge support doors up to the stated capacity when three hinges are used. The 30mm width establishes a predictable mortise size that can be repeated across multiple openings. As part of the Invisible Hinges product class, this hinge is designed to sit recessed into the door and frame, so when the door is closed the hardware is hidden from view.
This 3D invisible hinge is suitable for doors of 35mm minimum thickness, which sets the door build requirements for using this hardware. That minimum thickness ensures there is enough material around the recessed pocket to support the hinge body in normal operation. The hinge also allows cladding up to 18mm thick, so door designs can incorporate panels or applied layers within that thickness while staying inside the hinge's working range. The 150mm total length and 30mm width guide the mortise layout on both the door and the frame, allowing installers to set up routers or boring jigs specifically to those dimensions for consistent results.
This hinge belongs to the Invisible Hinges category, so it is intended for installations where the hardware sits recessed and out of sight when the door is closed. The suitability for doors of 35mm minimum thickness directs it toward solid-core or thicker door constructions rather than thin panels. Allowing cladding up to 18mm thick means it can be used on doors that have applied panels, skins, or decorative layers within that thickness, without interfering with hinge function. The 150mm total length makes it appropriate for full-size doors or larger panels where a compact hinge might not spread the load sufficiently. With a load capacity up to 220 lbs when three hinges are used, it is positioned for heavier doors where correct hinge sizing is important to door performance.
The 3D adjustments are central to how this hinge performs in finished work, because they allow positional tuning of the door after the mortises are cut. Being able to adjust in three dimensions lets installers refine the door's vertical and horizontal position and depth relative to the frame, which helps achieve even reveals around the opening. The defined 150mm by 30mm body size gives consistent reference points for routing, so templates or CNC programs can be set once and used across multiple doors. The zinc construction provides a stable base for the moving parts that handle these adjustments, maintaining the geometry that supports the stated load capacity when three hinges are installed. The nickel plated surface contributes to smooth interaction between moving elements within the hinge body, which supports long-term adjustment integrity and helps the hinge operate predictably under door weight.
The 3D Invisible Hinge, Model 1418, is suitable for doors of 35mm minimum thickness, so the door build needs at least that thickness to support the recessed hinge body.
The 150mm total length and 30mm width define the mortise size in door and frame, allowing consistent routing setups and helping produce repeatable hinge pockets across multiple doors.
The 3D Invisible Hinge, Model 1418, has a load capacity up to 220 lbs with 3 hinges, aligning hinge selection with heavier door projects within that weight range.
The 3D adjustments allow fine-tuning of door position after installation, helping align reveals vertically, horizontally, and in depth without recutting mortises.
The hinge allows cladding up to 18mm thick, so applied panels or skins within that thickness can be used without conflicting with hinge operation.
The C1418NK 3D Invisible Hinge is manufactured from zinc and nickel plated, providing a solid hinge body with a uniform metallic finish for visible edges when the door is open.
The 3D Invisible Hinge, Model 1418, brings together zinc construction, nickel plated finish, and 3D adjustments in a 150mm x 30mm format for doors starting at 35mm thick. The ability to handle cladding up to 18mm and a load capacity up to 220 lbs with 3 hinges positions it for heavier, concealed door applications. Matching your door thickness and design to these dimensions and capacities lets this Peter Meier, Inc. hinge perform its role as a recessed, invisible hinge within the stated range.
Sold In: 1 Each
