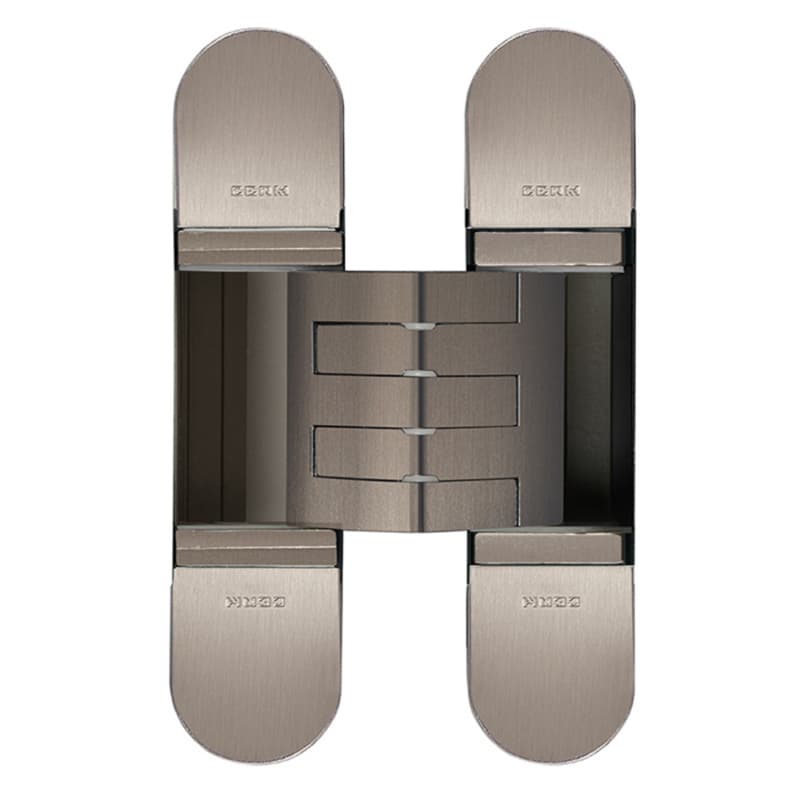

3D Invisible Hinge, Model 1450, Satin Nickel Plated 130mm x 30mm

3D Invisible Hinge 1450 For Concealed Doors

3D invisible hinge 1450 is a Peter Meier, Inc. hinge designed as an invisible hinge for doors where you need concealed movement and a clean finished look. The hinge belongs to the invisible hinges product class, so the door can operate without exposed knuckles that break up the face. Its satin nickel plated finish provides a neutral, professional appearance that coordinates with common architectural hardware, keeping trim and door edges visually consistent in commercial or residential work. The total hinge length of 130mm pairs with a hinge body width of 30mm, creating a compact footprint that still supports substantial door loads in cabinetry or room-entry style applications. Manufactured from zinc, the hinge body offers a solid base for machining mortises and holding adjustment settings, which matters when doors are cycled frequently. As a 3D hinge, it supports multi-directional adjustments that help fine-tune door alignment after the mortises are cut and the door is hanging.

Key Functional Details For Daily Door Use

• Manufactured from zinc, this hinge body delivers a stable structure that resists deformation during installation, so the mortised pockets can hold adjustment settings over repeated door cycles.
• The satin nickel plated finish presents a smooth, neutral surface that blends with typical satin nickel hardware, helping maintain a consistent look around frames and doors in the same project.
• A total length of 130mm gives the hinge extended engagement in the door and frame, which supports stronger anchoring where heavier doors or frequent operation demand a robust mortise footprint.
• The 30mm width combines with the length to define a rectangular cutout, allowing installers to plan precise routing patterns for repeatable hinge pocket layouts across multiple doors.
• 3D adjustments allow the hinge position to be tuned in three directions, so doors can be brought into proper reveal and closing contact without re-machining the mortise.
• Load capacity up to 176 lbs with 3 hinges supports heavier door constructions, allowing substantial doors to operate smoothly when the hinge count and spacing are coordinated with this rating.

Invisible Hinge Installation And Door Thickness Use

This 3D invisible hinge, model 1450, is suitable for doors of 35mm minimum thickness, so it is designed for solid or thick engineered doors where a deep mortise is practical. That minimum thickness helps provide enough material around the 130mm x 30mm hinge pocket, supporting long-term stability and reducing the risk of over-thinning the edge. The hinge also allows installation of cladding up to 10mm thick, which means decorative panels or overlays can be built onto the door face without interfering with hinge motion. This capability helps maintain a flush, concealed appearance even when design calls for additional surface material. With 3D adjustments built into the hinge, final on-site alignment of these thicker or clad doors can be dialed in after hanging, reducing rework when site conditions or frame tolerances vary from plan.

Where This Peter Meier Invisible Hinge Excels

Applications Using 35mm Doors And Cladding

This Peter Meier 3D invisible hinge, model 1450, fits projects using doors of 35mm minimum thickness, so it suits heavier interior doors or substantial cabinet and closet fronts that need concealed hardware. The ability to allow installation of cladding up to 10mm thick lets fabricators design doors with applied panels, veneers, or decorative build-ups while still relying on the same hinge layout. The 130mm length and 30mm width together create a sizeable mortise area, which offers strong support across thick door edges and matching frames. Because the hinge belongs to the invisible hinges category, it is designed so the mechanism remains hidden when the door is closed, supporting clean, uninterrupted surfaces on both door and jamb. Its satin nickel plated finish helps the visible hinge edges at the mortise blend into surrounding trim when the door is open, keeping a unified appearance around the opening.

Adjustment, Load Capacity, And Alignment Control

The 3D adjustments on this hinge give installers three-directional fine-tuning, which is valuable for aligning heavier doors where small shifts in plane or reveal can be noticeable. Once the mortises for the 130mm x 30mm body are machined, these adjustments help avoid reshaping pockets by letting the hinge position be refined mechanically. Load capacity up to 176 lbs with 3 hinges enables the hardware to support doors built from dense cores or doors carrying decorative cladding up to 10mm thick, aligning with the hinge's intended door thickness range. Manufactured from zinc, the hinge body provides a firm base for the adjustment mechanism, supporting repeatable performance as adjustments are set and locked over time. In practice, this combination of 3D adjustments and defined load rating helps maintain door alignment and closing feel across the life of the installation.

Common Questions About The 3D Invisible Hinge 1450

Selecting This Hinge For Your Next Door Project

The 3D invisible hinge, model 1450, from Peter Meier, Inc. provides a zinc-constructed, satin nickel plated solution for doors of 35mm minimum thickness. Its 130mm x 30mm size, 3D adjustments, and load capacity up to 176 lbs with 3 hinges support demanding concealed-door applications. The ability to allow installation of cladding up to 10mm thick lets you align aesthetics and structure around one hinge style. When a project calls for an invisible hinge that balances concealed appearance with defined load and adjustment capability, this model offers a focused option for building clean, well-aligned openings.
