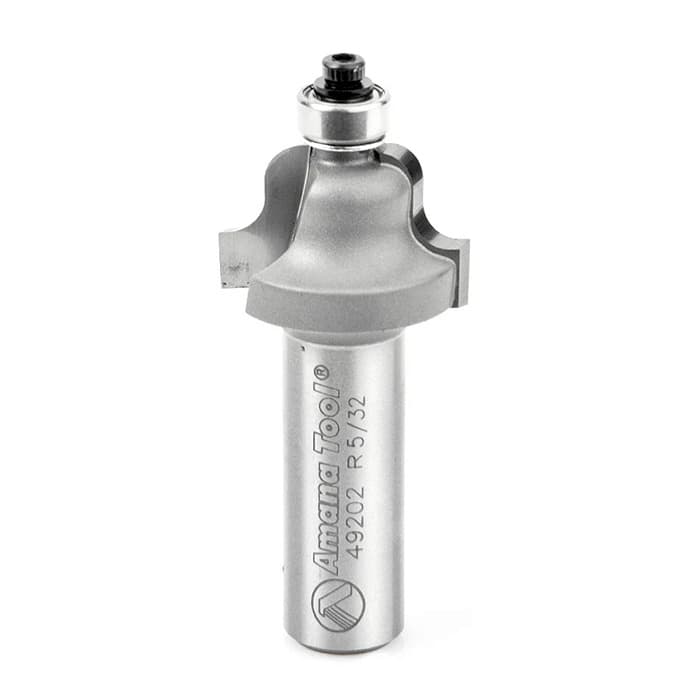

Edge Forming Roman Ogee with Ball Bearing Guide 2-Flute 5/32" Radius x 1" Dia x 5/8" x 1/2" Shank

ROUTER BIT, ROMAN OGEE Edge Forming Profile

ROUTER BIT, ROMAN OGEE describes an Amana Tool edge forming Roman ogee router bit designed for profiling decorative edges on wood. The bit has a convex curve coming off the bearing, so the cutter shapes a classic ogee with a smooth flowing transition that suits furniture, cabinet, and trim work. The diameter is 1 inch, which sets a moderate, controlled profile size suited to common edge widths. A 5/32 inch radius defines the curve, giving a crisp yet not oversized detail that reads cleanly on cabinet doors, shelves, and rails. The cutting height is 5/8 inch, so the bit can handle typical edge thicknesses used in woodworking projects. A 1/2 inch shank provides a solid grip in routers that accept this size, supporting stable cuts during profiling. Two flutes on the bit help produce a smoother finish along the formed edge.

Key Profiling Details For Clean Edge Work

• The convex curve coming off the bearing shapes the Roman ogee so the guide bearing controls the path while the cutter forms a consistent decorative edge along straight or gently curved stock.
• The 1 inch diameter cutting circle fixes the profile width, helping installers plan edge reveals that stay proportional on cabinet parts, shelving, and trim components.
• The 5/32 inch radius determines the tightness of the ogee curve, providing a defined yet modest profile that suits projects where a detailed but not bulky edge is preferred.
• The 5/8 inch cutting height allows the bit to cover common edge thicknesses in a single pass, which supports efficient routing on standard boards and panel edges.
• The 1/2 inch shank gives the bit a robust mounting interface, helping reduce runout in compatible routers so the Roman ogee pattern tracks straighter along long workpieces.
• The 2 flute design divides the cut between two cutting edges, promoting smoother surface quality on the formed profile which can reduce sanding time along the routed edge.

Router Setup, Mounting, And Shank Fit

This edge forming Roman ogee with ball bearing guide 2 flute bit uses a 1/2 inch shank, so it mounts into router collets that accept that shank size and secures the bit for profiling passes. The overall length is 2-1/2 inches, which affects how far the bit projects from the collet and helps installers gauge exposure for their setup. A cutting height of 5/8 inch defines how much of the edge can be profiled at once, guiding how deep the workpiece is presented to the cutter. The ball bearing guide at the tip steers along the workpiece edge, so the router setup can reference the material edge instead of relying only on fences when shaping the Roman ogee.

Using The Roman Ogee Bit In Real Projects

Where This Edge Forming Bit Is Applied

This edge forming Roman ogee with ball bearing guide 2 flute bit is identified for use in either hand held or table mounted routers, giving flexibility for shop or jobsite workflows. In a handheld router, the ball bearing running along the material edge guides the 1 inch diameter cutter, which helps follow cabinet parts, trim, or furniture components directly. In a router table, the same bearing and profile allow workpieces to be run along the fence or against the bearing, supporting repeatable edges on multiple identical parts. The 5/8 inch cutting height is suited to standard thickness edges commonly found in woodworking, so typical boards and panels can receive the full Roman ogee profile in routine operations.

Details That Support Repeatable Ogee Results

The convex curve coming off the bearing controls how the Roman ogee transitions from the bearing contact point into the profile, which helps installers achieve a consistent decorative line on each pass. The 5/32 inch radius and 1 inch diameter work together to lock in the profile shape, so matching existing work or running multiple parts stays uniform. The 2 flute layout balances chip removal, which helps maintain a smoother cut surface on long edges, aiding finish consistency across a full run of components. The 1/2 inch shank provides solid support in compatible collets, which contributes to reduced vibration and more precise tracking of the ogee shape. The specified overall length of 2-1/2 inches informs how the bit is raised and lowered relative to the work, supporting repeatable height settings during edge forming.

Common Questions About This Roman Ogee Bit

Select This Roman Ogee Bit For Precise Edges

The Amana Tool edge forming Roman ogee with ball bearing guide 2 flute bit provides a 1 inch diameter, 5/32 inch radius profile on a 5/8 inch cutting height, mounted on a 1/2 inch shank. These dimensions give installers a defined, repeatable decorative edge for cabinet, furniture, and trim work when run in either hand held or table mounted routers. For projects needing a classic Roman ogee profile with controlled proportions and stable router mounting, this router bit aligns well with typical woodworking edge forming tasks.
