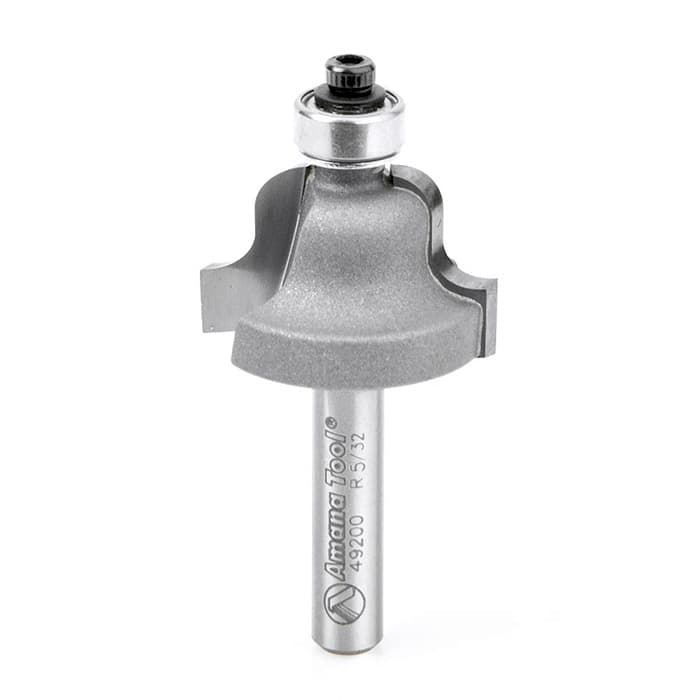

Edge Forming Roman Ogee with Ball Bearing Guide 2-Flute 1" Diameter, 1/4" Shank, 2-1/8" Length

Roman Ogee Bit For Clean Edge Forming

Roman Ogee 5/32 Radius 1/4 Shank identifies this Amana Tool edge forming router bit as a profiling tool built for decorative edges. The bit forms a Roman ogee profile, so each pass leaves a defined convex curve that gives cabinet doors, drawer fronts, and trim a consistent shaped edge. The web description states it has a convex curve coming off the bearing, which guides the shape directly off the workpiece edge and helps keep the profile uniform along long runs. The bit is classified under profiling router bits, so it is intended for shaping rather than stock removal. The design uses a ball bearing guide, so the edge of the workpiece controls the path, which is useful when following curved templates or existing edges on furniture and millwork projects.

Key Profiling Details For Daily Routing Work

• The web description specifies a ball bearing guide, which lets the bit follow the edge of the work without a fence, helping installers and woodworkers run consistent Roman ogee profiles on straight or curved edges.
• The description lists a 1 inch diameter, so the cutting circle is large enough to form a noticeable decorative edge in one pass on door rails, stiles, and moldings without multiple setup changes.
• The radius is specified as 5/32 inch, which defines the size of the convex curve and gives repeatable results when matching existing Roman ogee details across multiple parts in a job.
• The cutting height is specified as 5/8 inch, so the vertical profile it cuts is sized to work on common cabinet parts and furniture edges without removing too much material from narrow stock.
• The shank is listed as 1/4 inch, which fits 1/4 inch collet routers commonly used in shops and on site, allowing this bit to work in compact hand held or smaller table mounted machines.
• The overall length of 2-1/8 inch keeps the bit relatively short, which supports smoother routing by reducing leverage on the router collet during edge forming passes.

Installation And Router Setup For This Bit

The product description specifies a 1/4 inch shank, so the bit is intended to be mounted in routers with a 1/4 inch collet, aligning it with many compact and mid-size tools used in cabinet and trim work. The web description states it can be used in either hand held or table mounted routers, which means a shop can run the same Roman ogee profile on a router table for small parts or with a hand held router for large panels and long edge runs. The overall length of 2-1/8 inch helps the bit sit deep in the collet while leaving enough projection for the full 5/8 inch cutting height, supporting stable operation during repeated profiling passes.

Using This Roman Ogee Bit In Real Projects

Where This Amana Tool Router Bit Fits Best

The brand is listed as Amana Tool and the category as bits, blades and cutters | profiling, so this router bit is positioned as a dedicated edge-forming tool for finish work. The Roman ogee description and 5/32 inch radius point it toward applications where a traditional decorative edge is required, such as cabinet doors, shelf fronts, picture frames, and trim details. The 1 inch diameter and 5/8 inch cutting height work well on common furniture and casework thicknesses, so one profile setup can serve multiple parts on the same project. Being usable in both hand held and table mounted routers, as stated in the web description, allows it to move from shop production runs to onsite fitting without changing to a different style of bit.

Details That Support Repeatable Profiling Results

The web description specifies two flutes, so the cutting edges alternate around the bit, providing a balanced cut that helps produce a smoother Roman ogee surface along the entire 5/8 inch cutting height. The ball bearing guide sits at the tip of the bit, and the note that the profile has a convex curve coming off the bearing means the bearing sets the start of the profile, helping every edge begin from the same reference point for better alignment across parts. The manufacturer part number 49200 and SAP description referencing Roman ogee with a 5/32 inch radius give a consistent identifier when matching this profile for repeat orders or replacement in a production environment. The replacement bearing is specified as AA47704, so the guiding component can match the original design, which helps maintain the same tracking and profile position after bearing changes.

Common Questions About This Roman Ogee Bit

Select This Bit For Consistent Roman Ogee Edges

The Amana Tool edge forming Roman ogee bit with a 1 inch diameter, 5/32 inch radius, and 5/8 inch cutting height is specified for profiling work, so it supports repeatable decorative edges across cabinet and furniture projects. Its 1/4 inch shank and 2-1/8 inch overall length fit many routers used in shops and onsite, while the ball bearing guide and two flutes help deliver a controlled cut along workpiece edges. Choosing the 49200 part number keeps future reordering and profile matching straightforward whenever the same Roman ogee detail is required again.
