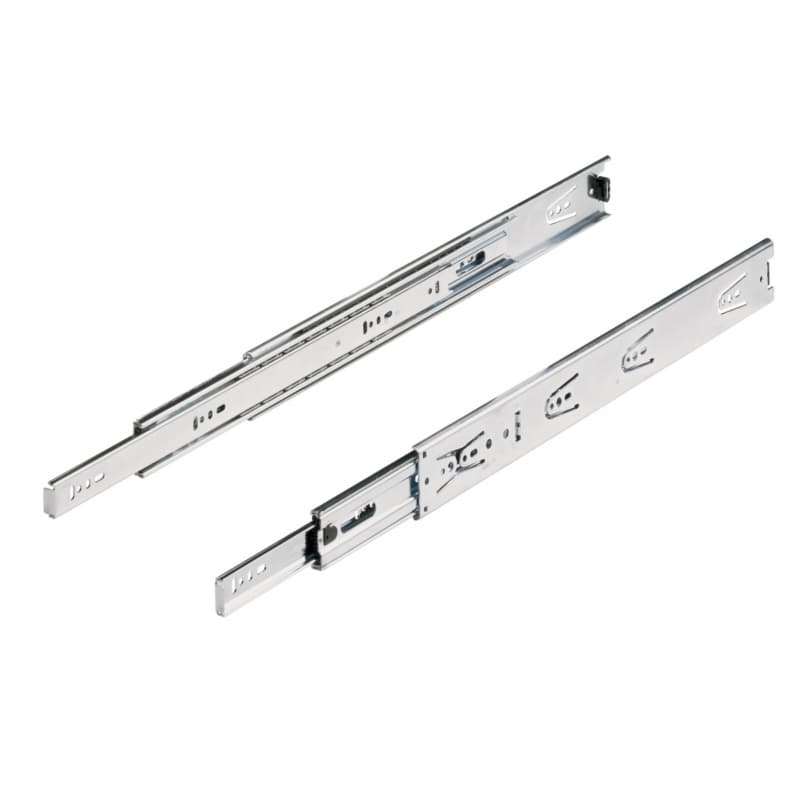

Hettich 28" Over Travel Standard Ball Bearing Drawer Slides KA 4932 Series, Unhanded Side Mount Zinc - 9019703

Hettich 28 Inch Over Travel Drawer Slides For Cabinets

Hettich 28 inch over travel drawer slides provide a standard ball bearing slide that supports smooth drawer motion, so cabinets run consistently in everyday shop or jobsite use. These KA 4932 Series slides are side mount, so they install along the cabinet side and support typical cabinet construction layouts. The slides are unhanded, meaning the same slide can be used on either side of the drawer, which simplifies ordering and reduces sorting on the bench. An available zinc finish gives the slides a clean, neutral appearance that works across different cabinet styles. Cushioned, positive in and out stops manage drawer travel at each end of the stroke, which helps control impact at full extension and when closed. A detent in feature lightly holds the drawer in the closed position, which helps keep fronts aligned in normal use. The drawer member trigger disconnect allows the drawer to be removed from the cabinet member, supporting installation, adjustment, and service work.

Key Slide Details That Support Cabinet Work

• Side clearance of 1/2 inch defines the gap between drawer side and cabinet, guiding drawer box sizing so slides operate smoothly without binding.
• Slide height of 2-9/32 inches sets the vertical space the slide occupies, helping plan drawer side height and stack layouts in a run of drawers.
• The 32 mm pattern is present, so hole locations follow a 32 mm system, which aligns with system-drilling processes for efficient cabinet production.
• Holes are located in increments of 32 mm with the first hole setback at 37 mm, giving predictable reference points for mounting and repeatable alignment.
• Side mount configuration places the slides on the drawer sides, matching common face frame and frameless cabinet construction practices.

Installation Details For Hettich KA 4932 Drawer Slides

These Hettich KA 4932 Series slides are designed as side mount drawer slides, so they fasten directly to the cabinet sides and drawer sides, supporting straightforward layouts in standard carcass construction. A side clearance of 1/2 inch establishes the required gap between the drawer and cabinet, which guides drawer box width during milling. The slide height of 2-9/32 inches defines the minimum vertical space needed at each drawer side, which helps in planning stacked drawer configurations. Holes laid out in a 32 mm pattern, with the first hole setback at 37 mm, line up with 32 mm system drilling equipment, supporting efficient line boring and consistent mounting positions. Recommended fasteners are #8 x 7/16 inch Phillips pan head, aligning screw selection with slide hole sizing and standard cabinet assembly practices.

Using These Over Travel Slides In Cabinet Projects

Where These 28 Inch Side Mount Slides Fit Best

These over travel standard ball bearing drawer slides at 28 inch length suit applications that need side mount slides with extended travel, supporting access to drawer contents. The side mount design fits cabinets built for slides mounted on the drawer sides, which aligns with many kitchen, shop, and storage layouts. A side clearance of 1/2 inch defines the working space between drawer and cabinet, which fits drawer boxes sized around that gap for smooth running. The slide height of 2-9/32 inches establishes how much vertical space each slide leg occupies, which helps organize drawer banks where multiple drawers share a cabinet side. The 32 mm pattern and hole spacing in 32 mm increments match system-drilled cabinet sides, supporting production environments using line boring or CNC layouts based on that pattern. The first hole setback at 37 mm offers a consistent front reference, which helps align slides relative to the cabinet front edge. The unhanded design lets one slide style serve both left and right sides, simplifying inventory when setting up for a run of installations.

Details That Help With Alignment And Service Work

The cushioned, positive in and out stops on these drawer slides control drawer travel at both ends, which helps protect drawer fronts and cabinet faces from harsh impacts under normal operation. The positive out stop supports full extension behavior, which aids access to the rear of the drawer space during daily use. The detent in function provides a holding point at the closed position, which helps keep drawers seated without extra latches and supports cleaner front alignment along a cabinet run. The drawer member trigger disconnect offers a controlled way to separate the drawer member from the cabinet member, which simplifies hanging finished drawers and later removal for adjustments or refinishing. Being a standard ball bearing design, the slide uses ball bearings to support movement between members, which promotes consistent motion along the slide length when installed to specification. The zinc finish provides a metallic surface appearance that coordinates with typical cabinet hardware finishes in many shop and residential environments.

Common Questions About Hettich 9019703 Drawer Slides

Selecting The Right Hettich Slide For Your Build

Choosing the Hettich 28 inch over travel drawer slides gives you a side mount, standard ball bearing slide with a defined 1/2 inch side clearance and 2-9/32 inch height, which supports clear planning for drawer box sizing. The 32 mm pattern with holes in 32 mm increments and the first hole setback at 37 mm ties directly into system-drilled cabinet construction, which supports efficient layout in the shop. Features such as cushioned, positive in and out stops, a detent in position, and a drawer member trigger disconnect tie performance to daily cabinet use and service. Matching recommended #8 x 7/16 inch Phillips pan head fasteners to the slide allows this Hettich KA 4932 Series 9019703 model to integrate smoothly into your next cabinet, storage, or shop project.
