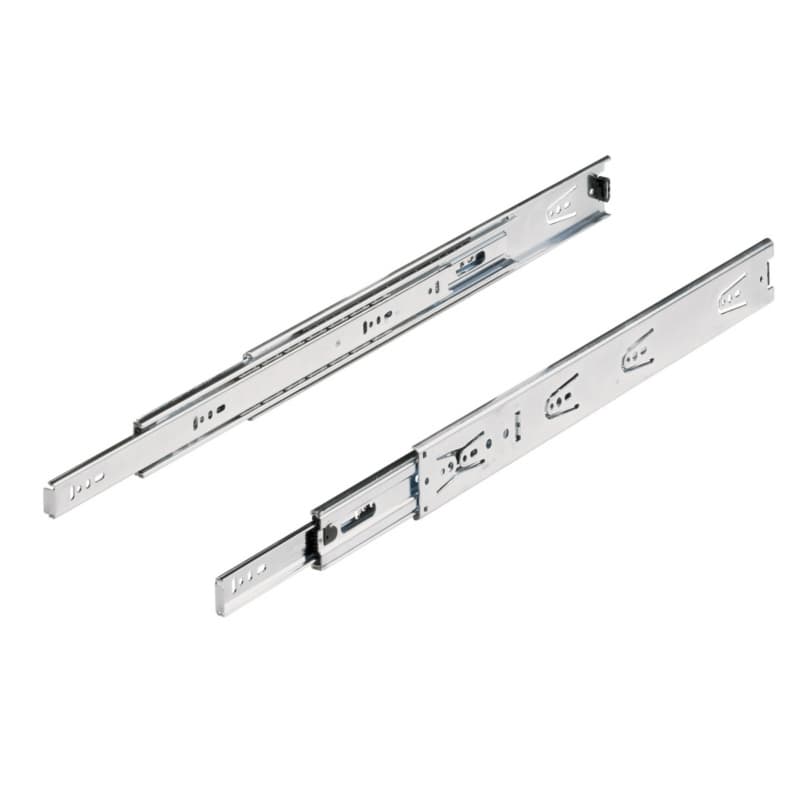

Hettich 18" Over Travel Standard Ball Bearing Drawer Slides KA 4932 Series, Unhanded Side Mount Zinc - 1071905

Hettich 18 Inch Over Travel Drawer Slides

Hettich 18 inch over travel drawer slides are standard ball bearing, side mount slides that support full drawer extension plus extra travel beyond the cabinet front. This over travel design lets the drawer move further out, so the back of the drawer is easier to see and reach during use. The slides are part of the Hettich KA 4932 Series, aligning with jobs that call for that specific series in shop drawings or replacement work. Each slide is unhanded, so the same part works on either side of the drawer, which simplifies selection and storage at the bench. The manufacturer part number 1071905 ties directly to this 18 inch length, helping match the correct slide when repeating a successful installation or replacing existing hardware with the same action.

Key KA 4932 Slide Details For Cabinet Work

• The side clearance of 1/2 inch defines the gap required between the drawer side and the cabinet side, guiding cabinet sizing so the assembled drawer runs smoothly in the slide.
• The slide height of 2-9/32 inches gives the vertical space the slide occupies on the drawer side, which matters when laying out drawer box heights and checking clearance to openings or adjacent hardware.
• The standard ball bearing construction controls the drawer movement along the slide, supporting a smoother opening and closing feel that helps drawers operate consistently in daily use.
• The 32 mm pattern with holes located in 32 mm increments, with the first hole setback at 37 mm, aligns with 32 mm cabinet systems so drilling patterns can follow familiar jigs and setups on the line.
• The zinc finish covers the slide components, providing a uniform metal surface that supports a clean, professional appearance inside the cabinet run.
• Cushioned positive in and out stops control how far the drawer travels in both directions, helping protect the slide from over-travel impact within its design and giving a defined open and closed position.
• The detent in feature holds the drawer in the closed position, which helps drawers stay shut under light movement in the room without extra catches or latches.
• The drawer member trigger disconnect allows the drawer to be separated from the cabinet member, which helps when installing, adjusting, or removing drawers for service or finishing.

Side Mount Drawer Slide Fit And Layout Details

This KA 4932 Series slide is a side mount drawer slide, so it fastens to the cabinet side and drawer side rather than the bottom, directing how the drawer box is constructed. The specified side clearance of 1/2 inch per side defines the finished drawer width relative to the cabinet opening, shaping cut lists and dovetail or dowel setups. A slide height of 2-9/32 inches sets the vertical footprint, which helps when stacking multiple drawers or working near fixed shelves. The 32 mm pattern with the first hole setback at 37 mm integrates into 32 mm system cabinets, so hole drilling can follow standard line boring machines or jigs. Recommended fasteners are #8 x 7/16 inch Phillips pan head screws, pointing to the shank size and length that match the slide holes and typical cabinet materials.

Using KA 4932 Slides In Real Cabinet Projects

Where These 18 Inch Slides Are Applied

The Hettich KA 4932 Series, 18 inch over travel standard ball bearing drawer slides are side mount slides suited to drawer boxes that need extra reach beyond the cabinet face. The over travel function means the drawer extends past full extension, letting the rear section of the drawer move into clear view, which helps when drawers are deep front to back. The side clearance of 1/2 inch directs how wide to build the drawer relative to the opening, helping drawers track straight in kitchens, baths, and shop cabinets. At 2-9/32 inches high, the slides fit many common drawer side heights, supporting stackable drawer layouts in tall cabinet sections. The unhanded design means the same 1071905 slide can be used on either the left or right side, reducing part variation in the shop and simplifying bin storage. The zinc finish presents a consistent metallic look when drawers are extended, which matters in installations where hardware is visible to end users.

Details That Support Repeatable Drawer Performance

The standard ball bearing action of these Hettich ball bearing drawer slides manages the interface between the cabinet member and drawer member, supporting smooth drawer travel over the full stroke. Cushioned positive in and out stops define the travel limits, so the drawer stops in a controlled way at both open and closed positions, which is important for maintaining alignment of drawer fronts across a cabinet run. The detent in feature uses the slide mechanism to hold the drawer at the closed position, helping fronts stay flush in day-to-day use without additional catches. The 32 mm pattern with holes spaced in 32 mm increments, and the first hole setback at 37 mm, ties into common European-style cabinet construction so slide mounting points match line-bored holes. That pattern supports repeatable installations from cabinet to cabinet, which can reduce layout time on multiple similar pieces. The drawer member trigger disconnect lets the installer separate the drawer from the cabinet member after mounting, which simplifies finishing, transport inside a building, or access to the cabinet interior for adjustments. The use of #8 x 7/16 inch Phillips pan head fasteners coordinates the slide holes with a known screw size and head style, helping power drivers seat the slide firmly without over-penetrating typical cabinet side materials.

Common Questions About Hettich KA 4932 Slides

Selecting This Over Travel Slide For Your Job

The Hettich KA 4932 Series 18 inch over travel standard ball bearing drawer slide with 1/2 inch side clearance, 2-9/32 inch height, and 32 mm pattern provides defined layout points for cabinet builds. The unhanded side mount design and drawer member trigger disconnect support straightforward installation, removal, and service. Using the specified #8 x 7/16 inch Phillips pan head screws ties the slide securely to typical cabinet and drawer materials. When a project calls for Hettich 18 inch over travel drawer slides with zinc finish, cushioned positive stops, detent in, and 1071905 identification, this model from Wurth Baer Supply matches those requirements for consistent cabinet hardware setups.
