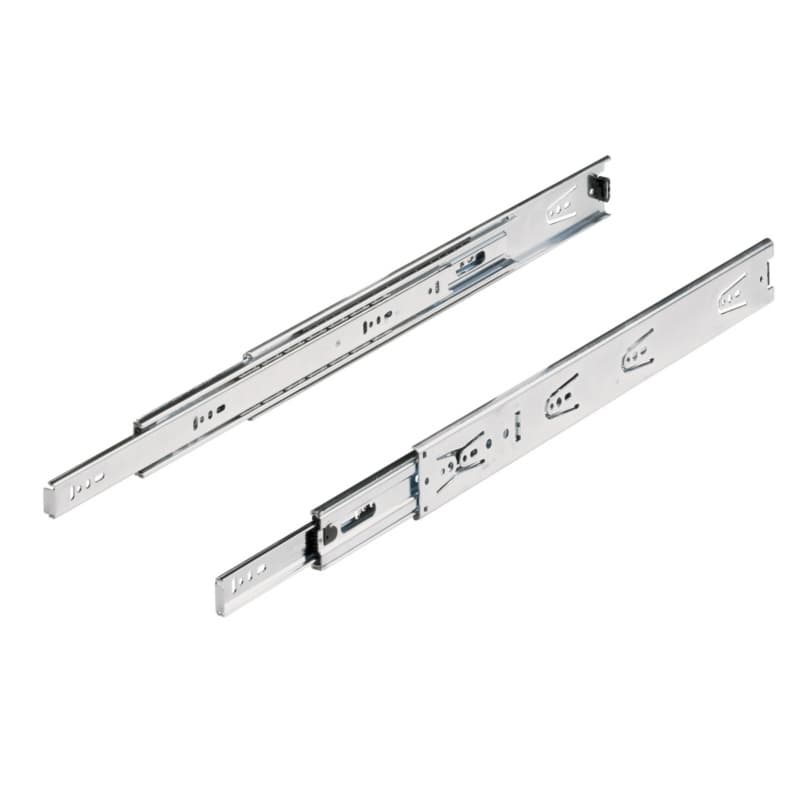

Hettich 16 Inch Over Travel Drawer Slides For Smooth Access
Hettich 16 inch over travel drawer slides provide a standard ball bearing, side mount solution that lets the drawer travel beyond the cabinet front, which helps when full access to stored contents is needed in tight casework layouts. The KA 4932 Series design uses a side mount configuration, so it works with cabinets built around standard side clearance practices rather than bottom mount layouts. A zinc finish creates a clean, neutral look on visible slide edges while matching other zinc-plated cabinet hardware. The drawer slide is classified as a side mount drawer slide, so installers can plan carcass and drawer construction around a known slide family. With a manufacturer part number of 1077311, shops can reorder the exact same KA 4932 slide when repeating a successful build or servicing an existing installation.
Key KA 4932 Slide Details That Support Cabinet Builds
- The 1/2 inch side clearance spec defines how much space to leave between drawer side and cabinet side, which helps installers size drawer boxes accurately so slides run smoothly without binding.
- The 2-9/32 inch height dimension sets the vertical space the slide occupies, which matters when stacking multiple drawers or working near fixed shelves inside the cabinet.
- The 32 mm pattern gives hole locations in regular 32 mm increments, which aligns with system cabinet construction and speeds layout on line-bored case sides.
- The first mounting hole setback at 37 mm from the front edge supports consistent front setback, helping align slide fronts with cabinet faces across a run of cabinets.
- Cushioned positive in and out stops control drawer travel limits, which protects the slide from hard impacts at full extension and at full close during everyday use.
- A detent in function holds the drawer in the closed position, which helps keep fronts aligned without relying only on catches or locks.
- The unhanded design lets the same slide part work on either side, which simplifies inventory and reduces sorting time at installation.
- The drawer member trigger disconnect allows the drawer member to be released, which helps when removing drawers for transport, finishing, or service.
Side Mount Drawer Slide Fit And Mounting Details
This side mount, ball bearing drawer slide uses a 1/2 inch side clearance, which defines the gap each side of the drawer and keeps the runner tracking correctly once installed. With a slide height of 2-9/32 inch, the profile fits common cabinet side heights while still giving room above and below for fasteners or other hardware. The 32 mm pattern with holes in 32 mm increments supports alignment with line-bored cabinet sides, helping keep left and right slides level. A first hole setback at 37 mm positions the front fastener consistently, which helps line up drawer faces along a cabinet run. As a KA 4932 Series component, this Hettich America Corporation slide fits into system-based casework planning that already uses metric drilling patterns.
Where Hettich KA 4932 Slides Work And Why They Matter
Using 16 Inch Side Mount Slides In Cabinet Projects
The Hettich 16 inch over travel drawer slides KA 4932 Series use a standard ball bearing mechanism, which supports smooth drawer motion in cabinet and casework applications that rely on metal runners. Their side mount configuration pairs with carcass designs that leave 1/2 inch side clearance per side, so shops can design drawer widths around a clear target dimension. Because the slide height is 2-9/32 inch, it fits in typical residential or commercial cabinet sides without crowding adjacent drawers or fixed shelves. The zinc finish suits shop-built cabinets that expose a small portion of the slide when drawers are open, giving a neutral metallic appearance that works with many pull and hinge finishes. As a side mount drawer slide from Hettich America Corporation, the KA 4932 Series can be specified on drawings by the 1077311 part number and repeated across multiple projects.
Details That Support Alignment, Access, And Repeatable Results
The over travel function described for this drawer slide lets the drawer extend past the cabinet front, which improves access to items in the back of the drawer in deeper 16 inch applications. Cushioned, positive in and out stops limit travel at both ends, which reduces impact at full open and full close and helps protect the slide over time. A detent in feature holds the drawer closed at the back of travel, supporting front alignment on face frame or frameless cabinets without relying solely on external catches. The 32 mm pattern, with holes located in 32 mm increments and the first hole at 37 mm, ties directly into metric system drilling, which keeps installation repeatable across a bank of drawers. Unhanded construction lets the same KA 4932 slide be used on left and right sides, streamlining both layout and reordering when matching existing cabinetry. The drawer member trigger disconnect supports removing the drawer member from the cabinet member, which helps during finishing, transportation, or field service when drawers need to be taken out and reinstalled without disturbing cabinet alignment.
Common Questions About Hettich 1077311 Drawer Slides
What side clearance do these Hettich 16 inch over travel drawer slides require?
The Hettich 16 inch over travel drawer slides use a 1/2 inch side clearance, which sets the drawer box width relative to the opening for proper side mount operation.
How does the 32 mm pattern on the KA 4932 slides help installation?
The KA 4932 slides have holes in 32 mm increments with the first hole at 37 mm, which lines up with system drilling patterns and speeds accurate slide placement.
What is the benefit of the drawer member trigger disconnect on this slide?
The drawer member trigger disconnect lets the drawer member release from the cabinet member, which simplifies removing drawers for finishing or service work.
Why does the KA 4932 drawer slide have cushioned positive in and out stops?
The KA 4932 drawer slide uses cushioned positive in and out stops to control travel at open and closed positions, which reduces shock loads on the slide components.
What does unhanded design mean on the Hettich 1077311 slide?
The Hettich 1077311 slide is unhanded, so the same slide works on either cabinet side, which simplifies ordering and installation layout.
How does the detent in feature affect drawer operation on this KA 4932 slide?
The KA 4932 slide uses a detent in feature to hold the drawer closed at the end of travel, which helps keep drawer fronts aligned when cabinets are at rest.
Selecting This Slide For System Drilled Cabinet Work
The Hettich 16 inch over travel drawer slides KA 4932 Series combine 1/2 inch side clearance, a 2-9/32 inch height, and a 32 mm pattern with the first hole at 37 mm, so they integrate well with system-drilled cabinets. The cushioned positive in and out stops, detent in function, and drawer member trigger disconnect support day-to-day use and service. When a side mount, ball bearing slide with over travel and unhanded mounting is required, this Hettich America Corporation 1077311 slide offers a defined set of measurements and functions to build around.
