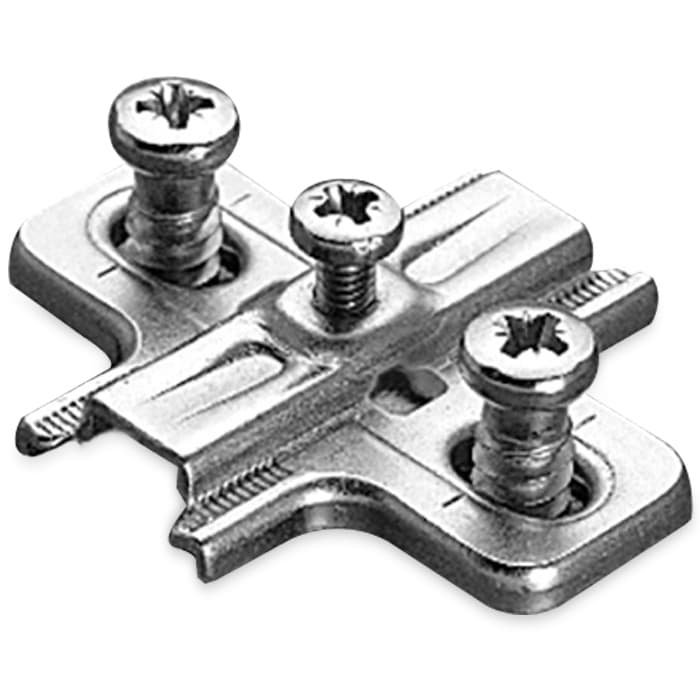

Series 200 Slide-On Mounting Plates with Traditional Assembly Screw-On, +/- 2 mm, 0mm Height

Salice Hinge Mounting Plates For Precise Cabinet Work

Salice hinge mounting plates in the Series 200 family provide a dedicated base for Salice hinges, so the hinge and door load transfer cleanly into the cabinet side for stable, repeatable installations. The hinge affixes to the plate by sliding the hinge onto the plate and then tightening the pre-mounted screw on the plate, which creates a solid mechanical connection without separate alignment steps between parts. These hinge mounting plates use a traditional assembly screw-on method, giving a familiar workflow to installers who prefer screw-in plates for flexibility during layout. The 0mm height keeps the hinge arm position neutral relative to the cabinet surface, which supports standard overlay setups built around flat mounting geometry. As hinge mounting plates from Salice America, they integrate into Salice hinge runs while keeping the base geometry consistent from cabinet to cabinet.

Key Plate Details That Support Cabinet Layout

• The traditional assembly screw-on style lets the plate fasten directly to the cabinet with screws, which helps installers set plates exactly where needed on site for door reveals and alignment.
• The hinge slides onto the plate and is secured by a pre-mounted screw, which simplifies attaching the hinge body and reduces handling of small fasteners during door hanging.
• Height adjustment of plus or minus 2 mm through slotted holes allows fine vertical tuning of the door position, helping correct minor drilling or layout variation after the plate is mounted.
• The standard 37 mm x 32 mm positioning supports common drilling and layout patterns, aligning with established cabinet boring grids to keep runs of doors consistent.
• The plate is constructed of stainless steel nickel plated and corrosion resistant, so the hinge connection point holds up in typical kitchen and bath environments over long service life.

Mounting Plate Fit, Height, And Screw-On Setup

This Series 200 slide-on mounting plate is designed with 0mm height, so the hinge arm sits at a neutral level relative to the cabinet side and works with layouts built around flat plate geometry. The traditional screw-on design lets the installer fasten the plate directly into the cabinet, creating a secure base that can be adjusted within the slotted holes. The hinge then engages the plate by sliding onto it and locking with the pre-mounted screw, turning a two-part assembly into a straightforward sequence that supports clean, repeatable mounting across multiple cabinet openings.

Using Salice Series 200 Plates In Cabinet Runs

Where This Salice Series 200 Plate Fits Best

The Series 200 slide-on mounting plates from Salice America serve as hinge base plates in cabinet constructions that use Salice hinge series hardware. Their standard 37 mm x 32 mm positioning supports cabinet layouts based on widely used boring patterns and drilling jigs, so they integrate into runs of doors without custom spacing. With 0mm height, these plates fit applications where the door overlay and reveal are calculated from a flat plate reference, keeping hinge geometry predictable from cabinet to cabinet. The stainless steel nickel plated, corrosion-resistant construction suits interior woodworking environments such as kitchens, baths, and built-ins where metal hardware is exposed to moisture variations over time.

Details That Support Adjustment And Repeatable Alignment

The hinge affixes to the Series 200 plate by sliding the hinge onto the plate and tightening the pre-mounted screw, which means the connection between hinge and plate is controlled by a defined interface instead of field improvisation, supporting repeatable alignment across multiple doors. Height adjustment of plus or minus 2 mm through slotted holes turns small layout discrepancies into simple vertical shifts rather than re-drilling, helping installers dial in door gaps after initial mounting. The traditional screw-on assembly lets the plate be positioned exactly where the 37 mm x 32 mm layout dictates, then fine-tuned within the slot range to match surrounding fronts. As part of the Salice hinge mounting plates line, this geometry keeps hinge bases consistent along a run, which is important when many doors share the same reveal targets. The corrosion-resistant stainless steel nickel plated body maintains stable dimensions at the mounting interface, supporting long-term hinge action without plate deformation.

Common Questions About This Salice Mounting Plate

Selecting This Plate For Salice Hinge Projects

The Salice Series 200 slide-on mounting plate with traditional screw-on assembly and 0mm height gives cabinetmakers a defined base for Salice hinge series installations. With plus or minus 2 mm height adjustment through slotted holes and a standard 37 mm x 32 mm positioning pattern, it supports reliable alignment on production or custom runs. The stainless steel nickel plated, corrosion-resistant construction from Salice America offers a consistent mounting interface for long-term hinge performance. For Salice hinge work sourced through Wurth Baer Supply, this mounting plate aligns hinge geometry, layout, and adjustment into a straightforward installation choice.
