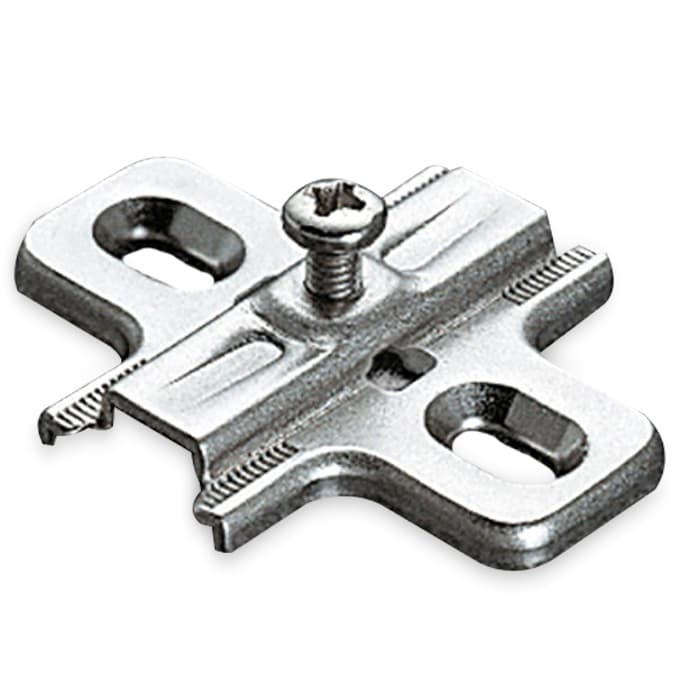

Series 200 Cam Adjustable Wing Mounting Plate, Nickel-Plated, Screw-On, 3mm

Series 200 Cam Adjustable Wing Mounting Plate Use

Series 200 cam adjustable wing mounting plate defines this Salice America hinge mounting plate as a precise connection point between cabinet and door, so installers can set up Salice hinges with predictable, repeatable results on casework jobs. This stainless steel nickel-plated plate is corrosion resistant, so it holds up in long-term cabinet environments where humidity or handling would otherwise mark unprotected hardware. The 3mm plate height establishes a known starting offset between door and cabinet, which helps installers hit consistent reveals when paired with matching Salice hinges. Because all mounting plates are compatible with any Salice hinge series, shops can standardize on this plate style across different Salice hinges without reworking drilling layouts. The wing mounting design gives a broad footprint on the cabinet surface, which supports stable hinge anchoring and reduces movement over time.

Key Mounting Plate Details For Field Work

• This hinge mounting plate is compatible with any Salice hinge series, so installers can use one plate family across different Salice hinge models without changing to a different mounting interface.
• The cam adjustable wing mounting design lets the hinge affix by sliding onto the plate and then tightening a pre-mounted screw on the plate, which speeds up door hanging and keeps alignment adjustments straightforward.
• Height adjustment of plus or minus 2 mm through slotted holes allows fine-tuning of door position after mounting, which helps dial in reveals and compensate for small casework or drilling variances.
• The standard 37 mm x 32 mm positioning provides a fixed reference for boring and layout, helping shops set up jigs and CNC programs that can be reused across multiple cabinet runs.
• Construction in stainless steel nickel plated, corrosion resistant material supports long service life in typical cabinet environments, maintaining function and appearance where moisture or handling are present.

Mounting And Adjustment Details For Installers

This Salice America hinge mounting plate uses a screw-on installation method, so it fastens directly to the cabinet with screws through the plate body for a solid mechanical connection. The hinge affixes to the plate by sliding the hinge onto the plate and then tightening the pre-mounted screw on the plate, which simplifies the sequence of hanging doors because the hinge and plate engage in a controlled track. Height adjustment of plus or minus 2 mm is handled through the slotted holes in the plate, giving installers room to shift the door vertically without redrilling. The standard 37 mm x 32 mm positioning means drilling patterns can stay consistent across jobs once set.

How This Salice Mounting Plate Works In Practice

Where This Hinge Base Plate Fits Best

This hinge mounting plate belongs to the Salice America Series 200 cam adjustable wing family, so it is suited for cabinet projects using compatible Salice hinge series. The 3mm plate height fits layouts that are engineered around that offset, allowing designers and shops to integrate this dimension into their hinge charts. Because all mounting plates are compatible with any Salice hinge series, a shop can adopt this plate style as a standard interface whenever Salice hinges are specified. The screw-on plate design fits cabinet constructions where direct screwing into the case is preferred, supporting use in both shop-assembled and jobsite-assembled cabinetry. The standard 37 mm x 32 mm positioning lets this plate work well in environments with drilling equipment set up to that spacing, from line boring machines to CNC routers.

Adjustment And Alignment For Repeatable Results

The cam adjustable wing mounting plate design contributes to alignment control once doors are hung, helping installers translate specs into clean reveals. The hinge slides onto the plate and is secured by tightening the pre-mounted screw on the plate, so the joint between hinge and plate is locked through a predictable motion that is easy to repeat across multiple doors. Height adjustment of plus or minus 2 mm via slotted holes provides vertical shifting without altering the underlying screw pattern, which is useful when walls or cabinet boxes are slightly out of square. The stainless steel nickel plated, corrosion resistant construction supports consistent motion of the cam and screws over time, so adjustments stay functional in typical cabinet conditions. By combining the 3mm plate height, the cam-based adjustment, and the fixed 37 mm x 32 mm positioning, installers gain a mounting system that connects design drawings to field installation in a controlled, measurable way.

Common Questions About This Salice Mounting Plate

Selecting This Plate For Your Hinge Layout

The Series 200 cam adjustable wing mounting plate from Salice America combines 3mm height, plus or minus 2 mm cam adjustment, and standard 37 mm x 32 mm positioning to support consistent layouts. For projects built around Salice hinge series, this screw-on, stainless steel nickel plated plate provides a stable interface that translates drawings into accurate, repeatable hinge installations on cabinets and doors.
