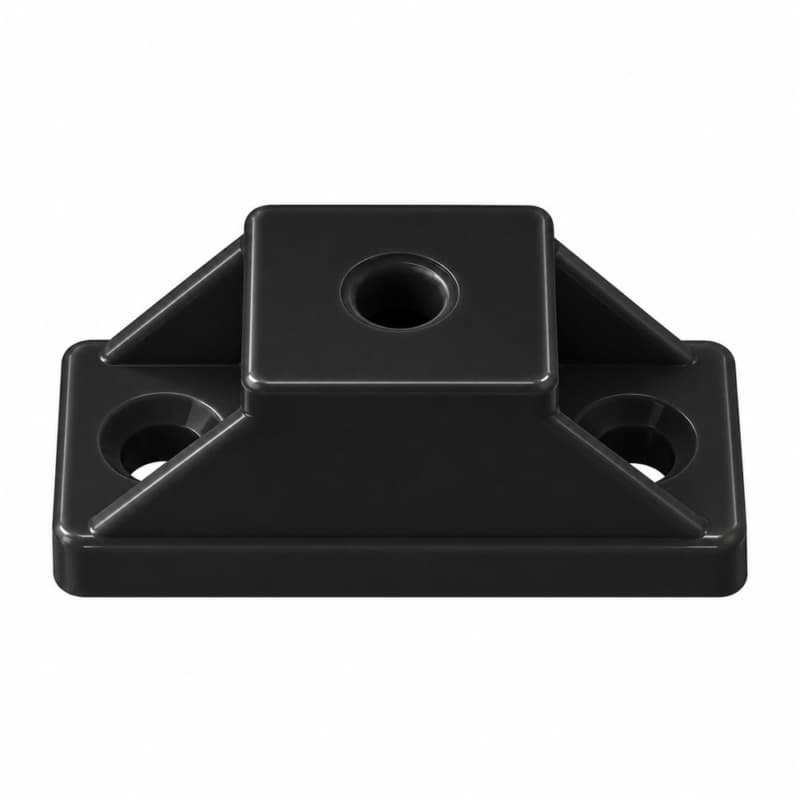

Drawer Slide Spacers 3/4 in Black 3682BK-22
Description
Drawer Slide Spacers For Face Frame Clearance
drawer slide spacers from Bainbridge Manufacturing are heavy-duty nylon brackets designed to work with any drawer slides, so one spacer style can support multiple slide lines in a shop or on a job. The spacers are rectangular and set a 3/4 inch depth, which positions the slide to clear face frames where the cabinet side is set back. This 3/4 inch stand-off helps align the slide with the drawer box side, supporting smooth slide function when cabinets are built with face frames. The spacers are molded in black, providing a low-visibility option behind dark drawer boxes or dark interiors. Being classified as accessories for drawer slides means these parts are intended to work alongside the primary slide hardware to solve layout and alignment needs. Each piece is manufactured from heavy-duty nylon, which gives a rigid but non-metallic interface between the cabinet and the slide.
Key Drawer Spacer Details That Save Time
- Heavy-duty nylon construction creates a rigid mounting surface between cabinet and slide, which supports repeatable positioning when multiple drawers are set to the same reveal.
- Rectangular 3/4 inch depth body sets a consistent offset from the cabinet side, which helps bring the slide out to the face frame plane for proper drawer alignment.
- Designated for use with any drawer slides, so the same spacer style can be used across different side-mount or similar slide models where a 3/4 inch offset is needed.
- Black color option blends into dark interiors or dark drawer components, which keeps the hardware visually quiet once the drawer is installed.
- Product is categorized under drawer slide accessories, indicating its role as a support component that fine-tunes slide placement without altering the cabinet construction.
- Identified by manufacturer part number 3682BK-22, which lets installers and shops reorder the exact same spacer profile to match existing work.
Mounting Layout And Slide Attachment Function
Each spacer has two cabinet mounting holes spaced 1-1/4 inches apart, giving a defined pattern for fastening to the cabinet side so hole locations repeat from drawer to drawer. This 1-1/4 inch spacing helps keep the spacer straight and stable along the cabinet side during installation. A center Euro screw position is provided to mount the drawer slide directly to the spacer, which ties the slide and spacer together without additional layout steps. Using the center Euro screw point allows the slide to register consistently on the spacer body, supporting accurate drawer movement along the full extension of the slide.
How This 3/4 Inch Drawer Spacer Works On Cabinets
Using The Spacer With Drawer Slides In Face Frame Cabinets
This Bainbridge Manufacturing drawer slide spacer is specified "for use with any drawer slides," so it can be paired with a range of slide designs when a 3/4 inch stand-off is required. In a face frame cabinet, that 3/4 inch depth moves the slide track outward from the cabinet side toward the frame, helping the drawer box clear the frame stile during travel. The rectangular body keeps that offset uniform along the length of the slide, supporting even gaps at the drawer front. Because the spacer is classified under drawer slide accessories, it is intended to sit between cabinet and slide as part of the overall slide assembly. The heavy-duty nylon material supports the slide for typical drawer loads while keeping metal components separated from the cabinet side.
Details That Support Consistent Alignment And Repeats
The two cabinet mounting holes on each spacer are spaced 1-1/4 inches apart, so once a reference line is established on the cabinet, multiple spacers can be positioned using the same measurement, which streamlines repetitive cabinet runs. This fixed pattern also helps keep the spacers aligned vertically, supporting parallel slide placement. The center Euro screw used to mount the drawer slide to the spacer provides a direct registration point between slide and spacer body, which helps keep the slide square to the cabinet opening. With the spacer depth set at 3/4 inch, installers know the slide is being located at a consistent offset relative to the cabinet side, which supports uniform drawer reveals and smooth operation across stacked drawers.
Common Questions About This Drawer Slide Spacer
What is the depth of this Bainbridge drawer slide spacer?
The drawer slide spacer has a 3/4 inch depth, which sets the slide 3/4 inch off the cabinet side to help clear face frames and align the drawer box with the opening.
How does this spacer help with face frame cabinet layouts?
The spacer is described as used to clear face frames, so its 3/4 inch thickness moves the slide toward the frame, helping drawers travel without rubbing the frame edges.
What mounting hole pattern is provided on the spacer body?
The spacer has two cabinet mounting holes spaced 1-1/4 inches apart, giving a repeatable pattern for fastening to cabinet sides during drawer slide layout work.
How is the drawer slide attached to this spacer?
The spacer has one center Euro screw position to mount the drawer slide, creating a direct connection so the slide registers securely on the spacer body.
What material and color are specified for this drawer spacer?
The drawer spacer is described as a heavy-duty nylon bracket in black, giving a rigid non-metallic interface that visually blends into dark drawer interiors.
Which part number should be used to reorder this spacer?
The spacer is identified by manufacturer part number 3682BK-22, which lets shops and installers request the same 3/4 inch black Bainbridge spacer profile.
Selecting This 3/4 Inch Spacer For Slide Work
This Bainbridge Manufacturing 3/4 inch black drawer slide spacer from Wurth Baer Supply combines heavy-duty nylon construction, a defined 1-1/4 inch mounting hole spacing, and a center Euro screw slide mount to support accurate face frame clearance. When a job calls for a consistent 3/4 inch offset between cabinet side and drawer slide, using this rectangular spacer profile keeps positioning predictable from drawer to drawer. Add this spacer wherever drawer slides must align with a face frame plane while maintaining a clean, low-visibility black component inside the cabinet.
