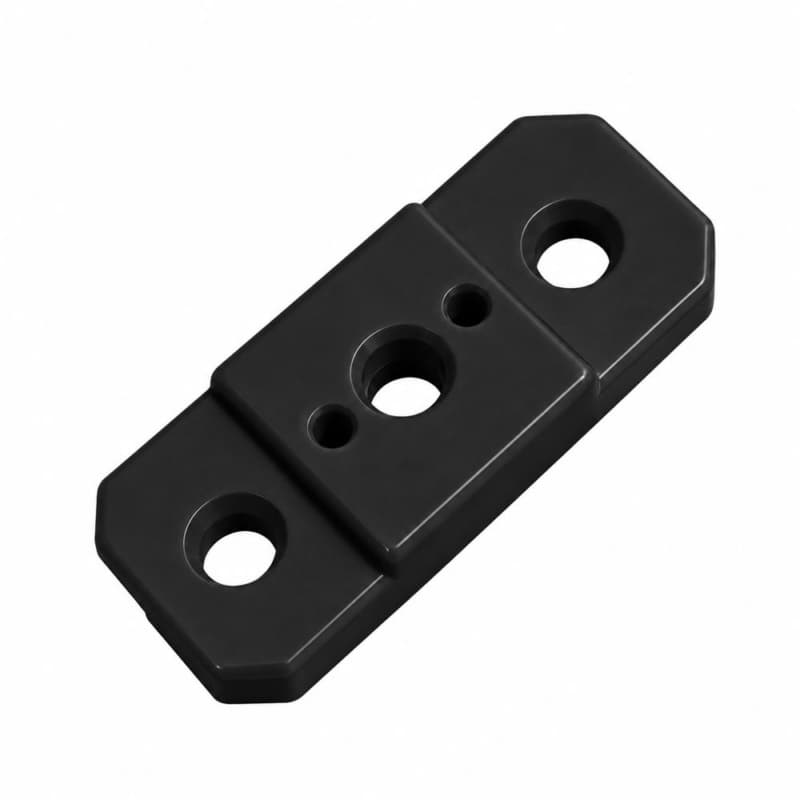

Drawer slide spacer 1/4 inch black 3606BK-22

Drawer Slide Spacer 1/4 Inch Black For Face Frames

Drawer slide spacer 1/4 inch black gives drawer slides the stand-off needed to clear face frames, so slides mount in line without cutting or shimming cabinet parts. This Bainbridge Manufacturing spacer provides a 1/4 inch depth, which shifts the drawer slide mounting plane out from the cabinet side to match typical face frame offsets in many cabinet layouts. The black color helps this spacer visually blend into darker cabinet interiors, which keeps the installation discreet when the drawer is open. The spacer is designed for use with any drawer slides, so it supports a consistent approach across different slide models in the same project. By using a dedicated part instead of site-made blocks, installers get uniform depth and alignment from cabinet to cabinet, reducing layout variation across a run of drawers.

Key Drawer Slide Spacer Details For Installers

• This 1/4 inch depth spacer sets a fixed offset between the cabinet side and the drawer slide, which helps keep slide positioning consistent when working around face frames in repeat cabinet runs.
• The spacer is identified as Bainbridge Manufacturing part 3606BK-22, giving installers a specific reference when matching this component to drawings, takeoffs, or reorder lists for future work.
• Black color on the spacer suits darker cabinet interiors, which keeps the part from drawing attention when drawers are open and supports a clean, finished appearance around the running hardware.
• Use with any drawer slides allows one spacer type to serve across multiple slide lines, simplifying planning when different slide models are used in the same project layout.
• The product is offered by Wurth Baer Supply, providing access to this spacer through a woodworking-focused distributor that supports cabinet hardware sourcing for shop and field needs.

Installation Function Of This 1/4 Inch Spacer

This spacer is for use with any drawer slides, so the same part can be set between cabinet side and slide rail wherever a face frame creates an offset. The 1/4 inch depth defines how far the slide moves out, which ties directly to how the drawer box centers in the opening once both sides are spaced equally. Using a spacer with a fixed dimension helps installers repeat hole patterns from cabinet to cabinet, because the stand-off distance from the cabinet side is built into the part instead of being measured each time. The black finish means that once the slide is fastened to the spacer and the assembly is mounted, the hardware combination presents a dark, uniform strip along the interior.

Where This Black Drawer Slide Spacer Fits Best

Using The Spacer With Drawer Slides And Face Frames

This Bainbridge Manufacturing 1/4 inch drawer slide spacer is described for use with any drawer slides, which positions it as a bridge component between the cabinet side and the slide member. When a cabinet has face frames, the frame can sit proud of the interior side panel, and the 1/4 inch depth of this spacer helps the slide mounting line move forward to clear that projection. Installers place the spacer at the cabinet mounting location and then mount the drawer slide to the spacer, so the slide ends up parallel to the cabinet side while matching the face frame plane. In a bank of drawers, using the same 1/4 inch spacer on each slide location supports uniform reveal relationships because the front of each slide starts from the same offset relative to the frame.

Details That Support Repeatable Drawer Alignment

The spacer has two cabinet mounting holes spaced 32 mm apart, which matches a common 32 mm system layout and lets installers align the spacer with existing cabinet drilling patterns for efficient mounting. This regular 32 mm spacing helps keep vertical positioning consistent from one cabinet to another when shops are working on line-bored casework. A center euro screw location to mount the drawer slide to the spacer gives a defined connection point between the slide and the spacer, tying the slide to the same reference every time rather than relying on improvised locations. Because the same mounting holes and center connection are used repeatedly, installers can work faster while maintaining the same reveal and slide action across multiple drawers. The 1/4 inch depth, combined with these mounting references, supports predictable clearances between drawer box and cabinet, reducing the chance of rubs against the face frame.

Common Questions About This Drawer Slide Spacer

Select This Spacer For Face-Frame Drawer Runs

This Bainbridge Manufacturing 1/4 inch black drawer slide spacer supplies a defined offset, 32 mm cabinet mounting holes, and a center euro screw point to connect to any drawer slides. Those details come together to support cleaner face-frame drawer layouts with repeatable alignment from cabinet to cabinet. When projects call for matching drawer reveals and predictable slide action across darker interiors, this spacer gives a straightforward way to move the slide forward by 1/4 inch while working within familiar 32 mm patterns. Choose this part when a consistent stand-off around face frames is a priority for your slide installations.
